H.264 H.265 for 2.0mp 4mp 3mp 5mp Megapixels HD resolution
Features:
Outdoor Waterproof IP66
Support POE connection and wired cable connection
Support Motion detection Recording and email alarm.
Support send alarm pictures to the e-mail address,
Support upload alarm pictures and videos to the FTP server,
Support alarm mobile phone message push
Support remote view and remote control pan tilt zoom from phone app /PC client at any time and any place

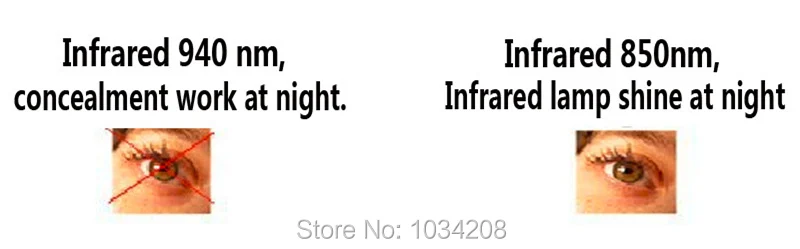

Built in IR-CUT, Support both day and night vision,
Provide android & ios APP and multi-channel CMS PC client software.
Elegant outline and easy installation.
Phone app :XMEYE
Support Plug n Play P2P
Support Onvif 2.4, camera can work with Onvif NVR recorder!
Q1: Is it POE camera?
Re: Yes, it is POE Cam
Q2 Can i watch the camera video from another place remotely? What is the app for phone?
Re: Yes, you can. The phone app named” XMEYE”. (User ID: admin; Password: )
Q3: Does it support ONVIF?
Re: Yes.
H.265 advantages
1. It is approximate 2 times as effective as H.264.
2. Reduces file size up to 50% with the same quality.
3. Supports resolution up to 7680 × 4320 (8K).
4. Reduces video noise and increases dynamic range.
5. Extend far greater video quality experience compared to H.264
Features:
1. H.265 8mp 5MP 3MP 4MP 2MP optional;
2. H.265/H.264,support dual-stream,AVI;0.1M~8Mpbs variable;1~30f/s variable;
3. Color 0.1Lux; B/W 0.01Lux;
4. 1 RJ45 Ethernet interface, 10/100M automatically adapting;
5. Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc network protocol;
6. Support ONVIF, and mobile monitoring;
7. Metal case.
Specifications:
|
|
GS-FS1CMA-POE/GS-FS1CA3M-POE/GS-FS1CA4M-POE/GS-FS1CA5M-POE/
|
|
System structure
|
Embedded RTOS,dual-core 32bit DSP,pure hard compression ,watch dog
|
|
Sensor
|
2MP:1/2.8 imx307 CMOS sensor color 0.01Lux’F1.2,black/white 0.01Lux’F1.2
3MP:1/2.7″ SC2235 CMOS sensor color 0.1Lux’F1.2,black/white 0.01Lux’F1.2
4MP:1/2.7″ SC5239 CMOS sensor color 0.1Lux’F1.2,black/white 0.01Lux’F1.2
5MP:1/2.8″ IMX385 CMOS sensor color 0.1Lux’F1.2,black/white 0.01Lux’F1.2
8MP:1/2.7 SC8239 Cmos senor cloor 0.1lux F1.2 black and white 0.01lux F1.2
|
|
Video compression
|
H.265/H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable
|
|
Image output
|
2MP:Main stream:1920*1080(25fps),
3MP:Mail stream:2048*1536(20fps),
4MP:Mail stream:2560*1440(20fps),
5MP:Mail stream:2592*1944(15fps),
8mp:Main Stream:3840*2160p(15fps)
|
|
Noise reduction
|
Support 2D/3D
|
|
lens
|
3.6mm MP Board lens ,around 92degree default , 2.8mm/2.5mm optional
|
|
Storage
|
Via PC/Mobile Phone/NVR With HDD
|
|
Light
|
10pcs ir leds with night vision
|
|
Wide dynamic
|
Support digital
|
|
Network interface
|
1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
|
|
Singal interface
|
One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
|
|
Auto iris
|
No
|
|

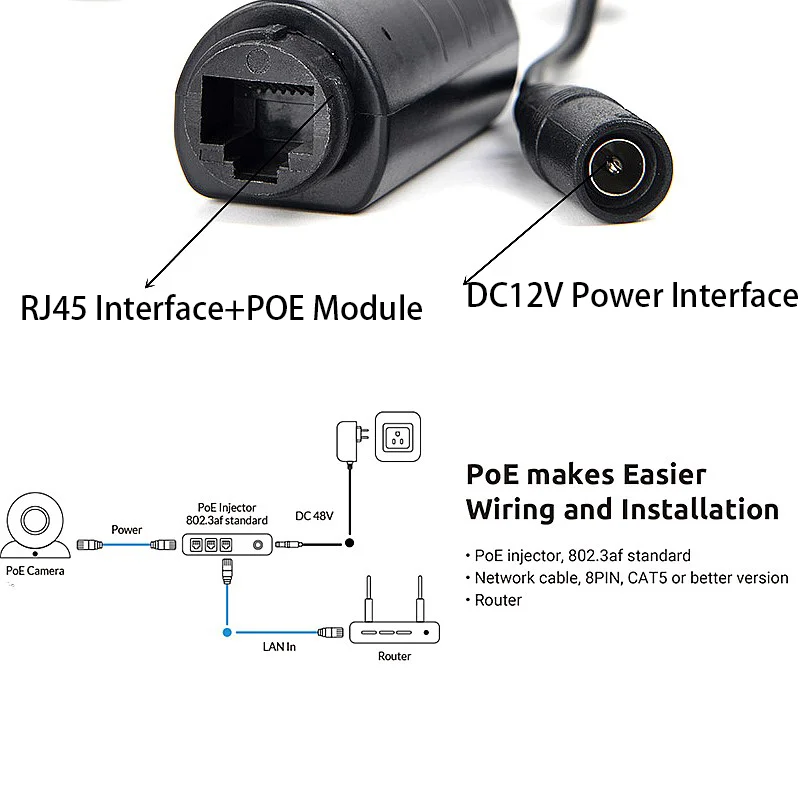

POE
|
yes,IEE802.3AF standard POE
|
|
Reliability
|
Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65’C high temperature stable and reliable testing (including mounted machine testing)
|
|
Other function
|
/
|
|
ONVIF
|
Support
|
|
Mobile monitoring
|
Support multiple mobile monitoring(iOS,Android)
|
|
Power
|
DC12V +48V Poe module
|
|

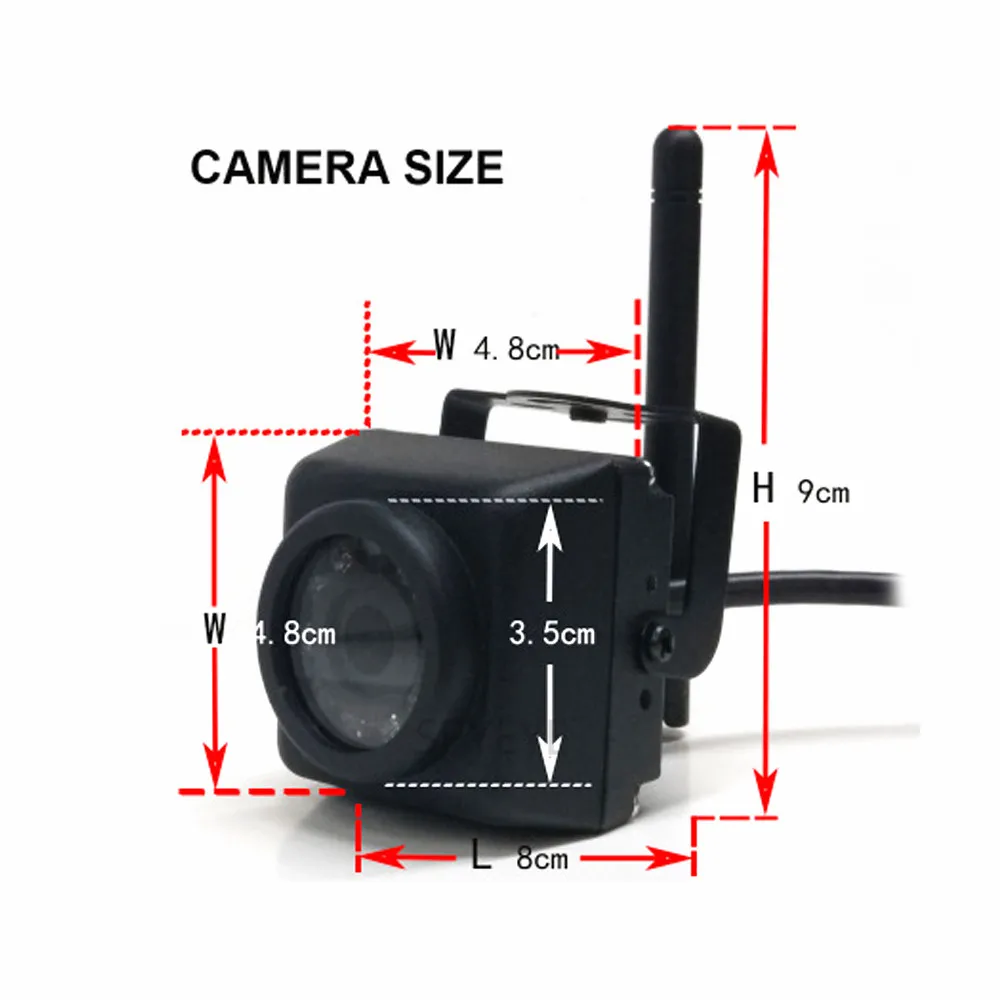

Dimension
|
/
|
|
Housing material
|
Metal Housing
|

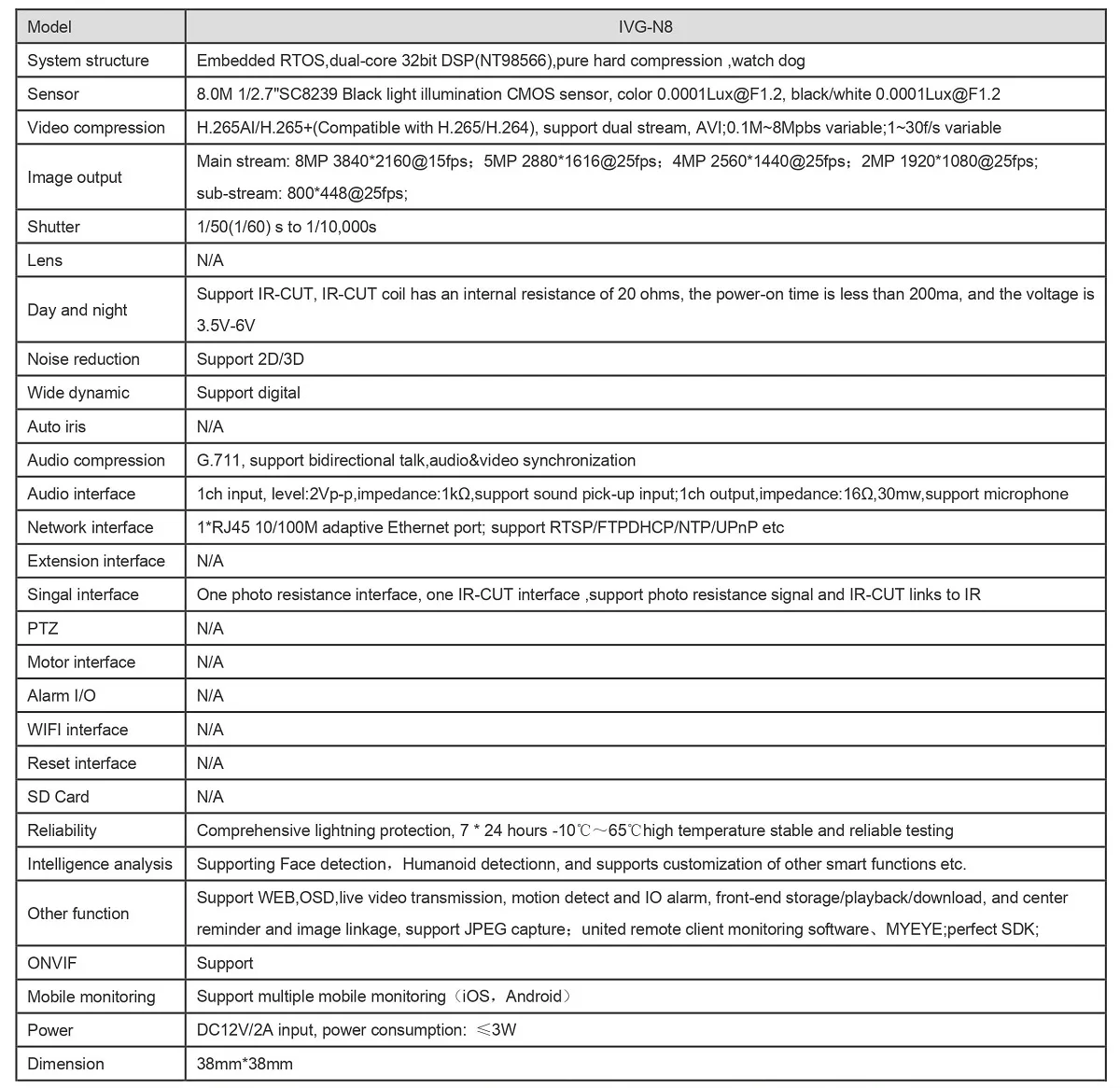

8MP Chipset Specification as below:
(Does not include Power Adapter)
Note: “DC 12V” Please use DC12 V 1A power supply, packaging does not include the power supply.
We recommend using our h.265 NVR, other manufacturers of NVR may not be able to run h.265 perfectly, it will run with h.264.
Q & A
1, IP camera default IP address:192.168.1.10
User name:admin,password:empty(null)
If there is a problem with “Can not find the Device”, it is the default ip address is not in the same network segment as your router.
Please click “Edit Device” to change the camera’s ip address,
For example, if your router’s ip address is 192.168.0.1, then you need to change the camera’s ip address to 192.168.0.XX.
“DeviceManage” It can find and change the IP address, upgrade the firmware.
2, P2P website: “www.xmeye.net” ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese .
then please input your P2P ID,user name and password to login and preview.
Access to the IPC through the web, only one screen can be displayed.
There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR)
3,The camera’s port information.
ONVIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port 25; SLL protocol Port 465.
4,Does the cameras can be compatible with other manufacturers NVR?
Please confirm whether other manufacturers NVR support onvif protocol.
Our camera’s onvif protocol is onvif Profile S, does not support HTTPS protocol;
Auto focus camera, other manufacturers NVR can only zoom, can not focus.
5, The camera all supports Motion Detect,FTP,Email alarm, RTSP.
A,How to set up motion detection?
Access to IPC via IE (or CMS software), device configuration – alarm function – motion detection – on and save.
B, About FTP
FTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload.
We suggest the Sever-U and FileZilla FTP Server to upload the video or image.
C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .
D, RTSP URL for VLC media Player :
RTSP port: 554
rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_stream
Example:
rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream)
If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set
6, About DDNS
Mapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80)
Note: The two ports in the network settings can be viewed, can be modified
What domain names are supported?
– CN99 / DynDns / Oray / NO-IP / MYQ-SEE
7.
Q:When I finish the steps to add the camera to the CMS list,why it notify “ Can’t find the Device “ even I can see the default ip address 192.168.1.10 in the menu .
F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router.
Please click “Edit Device “ to change the camera’s ip address to make them in the same network segment !
For example ,if your router’s ip address is 192.168.0.1 ,then you need to change the camera’s ip address to 192.168.0.XX .
Package contents:
1 x Camera, 1 x Screw, software will be ship to your by JustKoala.com
Note: If you need POE power supply, select the ADD POE option. If you do not select POE power supply, it is normal cable
