CCTV Industrial IMX385 IMX290 IMX307 HD-SDI EX-SDI 60FPS 50FPS 2.0MP 1080P Security Mini Broadcast Box SDI Camera Medical Live

From $228.90
  • Sensor Size:

in stock

Buy With Confidence

100% Safe Payment


;

  • Description

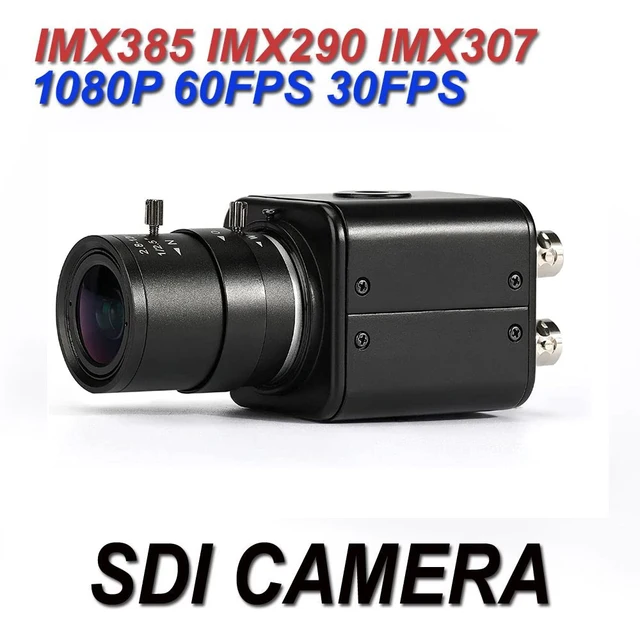

    CCTV Industrial IMX385 IMX290 IMX307 HD-SDI EX-SDI 60FPS 50FPS 2.0MP 1080P Security Mini Broadcast Box SDI Camera Medical Live

    IMX307 is  30fps ,not 60fps ,  IMX290&IMX385 IS 60FPS ,3g sdi

    NOTICE:

    Our IP Camera DO NOT Included The Power Adapter,
    If You Need It, Please Kindly Click The Photo As Below, Add It In Your Order List, Thanks !
    if you have other requirement ,welcome contact with us free !

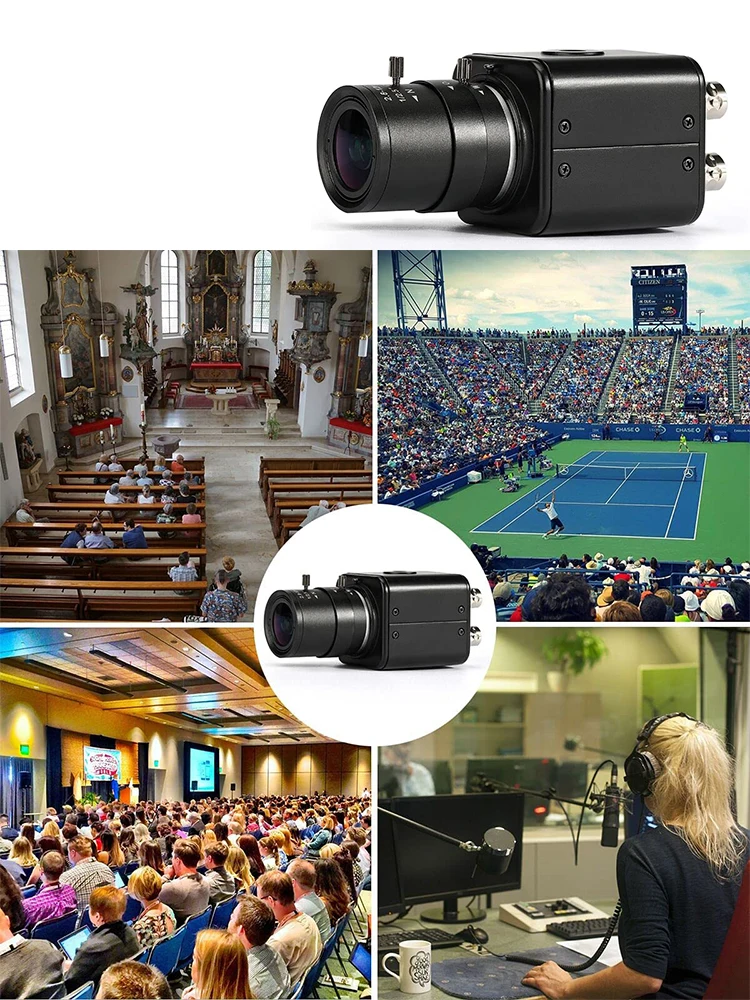

    Camera main uses: industrial camera, industrial detection video vision, video broadcast level, golf teaching shooting, high-speed object shooting, ball game broadcast, medical endoscope bayonet optical hard lens, remote medical teaching… …

    Specification:

    Models:

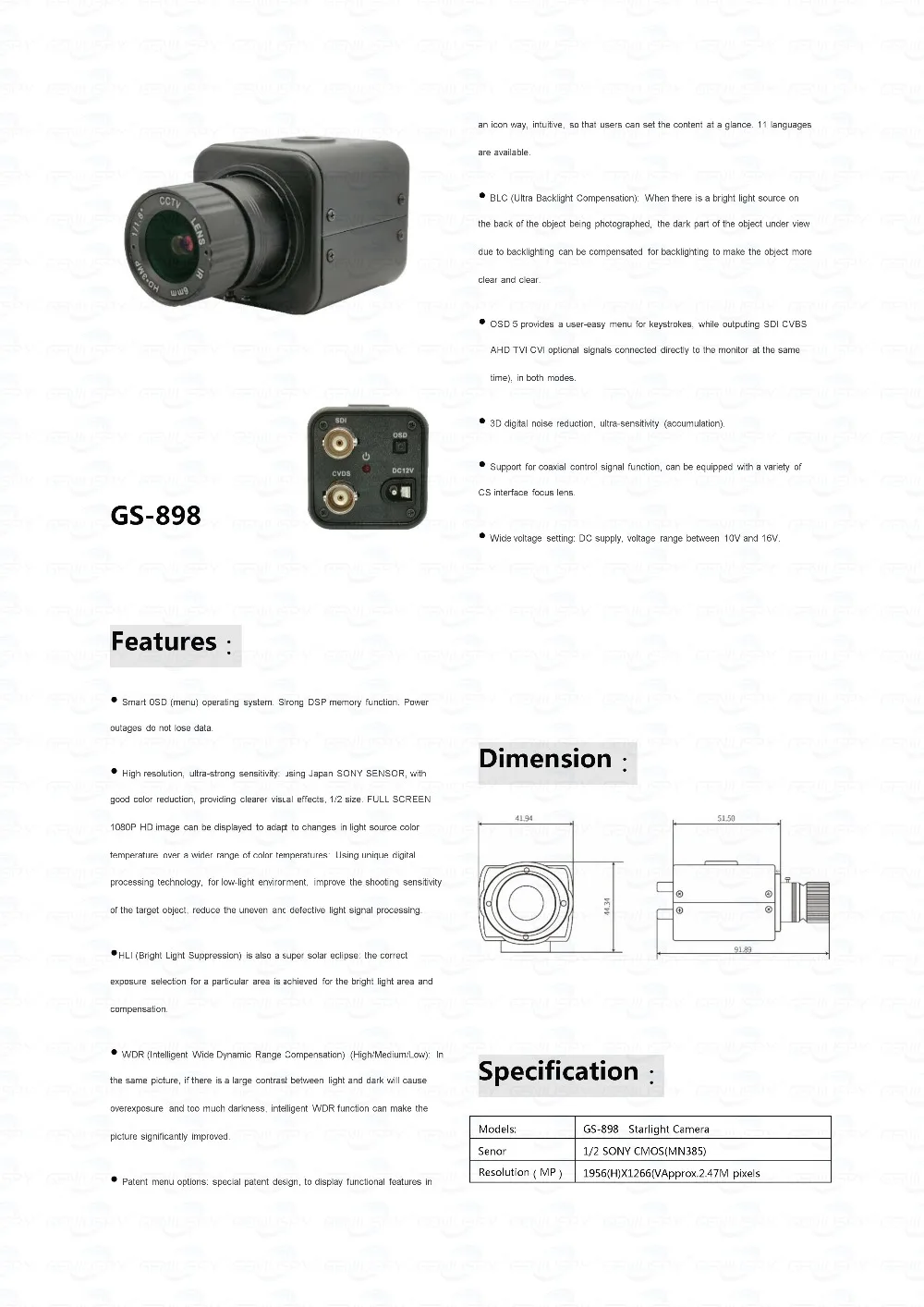

    GS-898  Starlight Camera

    Senor

    1/2 SO  NY CMOS(MN385)

    Resolution(MP)

    1956(H)X1266(VApprox.2.47M pixels

    Effective(MP)

    1944(H)X1092(VApprox.2.12M pixels

    (TVL)

    Digital:1080P(30fps),720P(30fps)

    Minimum illuminati(LUX)

    Color DSS:0.00017LUX,BW DSS:0.00008LUX

    shutter

    AUTO/MANUAL(1/50/60-1/30,000set)

    letter-to-voice ratio.(dB)

    >42dB

    White Balance(WB)

    Auto/Auto ext/Preset/Manual

    (WDR)

    Off/Low/Middle/High; WDR SNR;120DB

    (BLC)

    Off/BLC

    (HLI)

    Off/HLC

    (Defog)

    Off/On, Low/Middle/High

    3D DNR

    Off/Low/Middle/High

    (Mirrior)

    Flip left/right/up and down.

    (Sens-up)

    Off/X2/X4/X8/X16/X32

    (AGC)

    0-10 steps

    (Language)

    Chinese/English etc

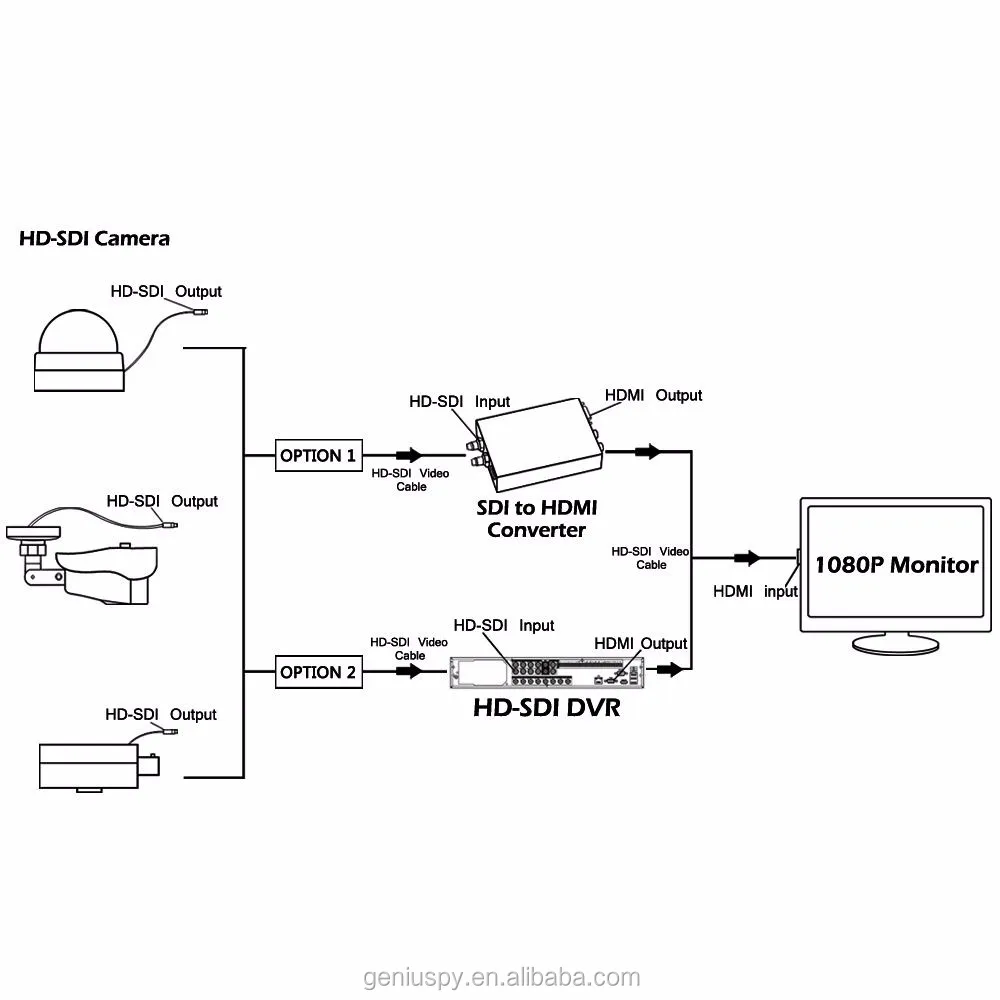

    Video Output

    1.HD/EX-SDI              2.CVBS AHD TVI CVI

    Power(V)

    DC12V

    WorkTemperature(℃)

    -20℃-+80℃

    Power(W)

    4.0W

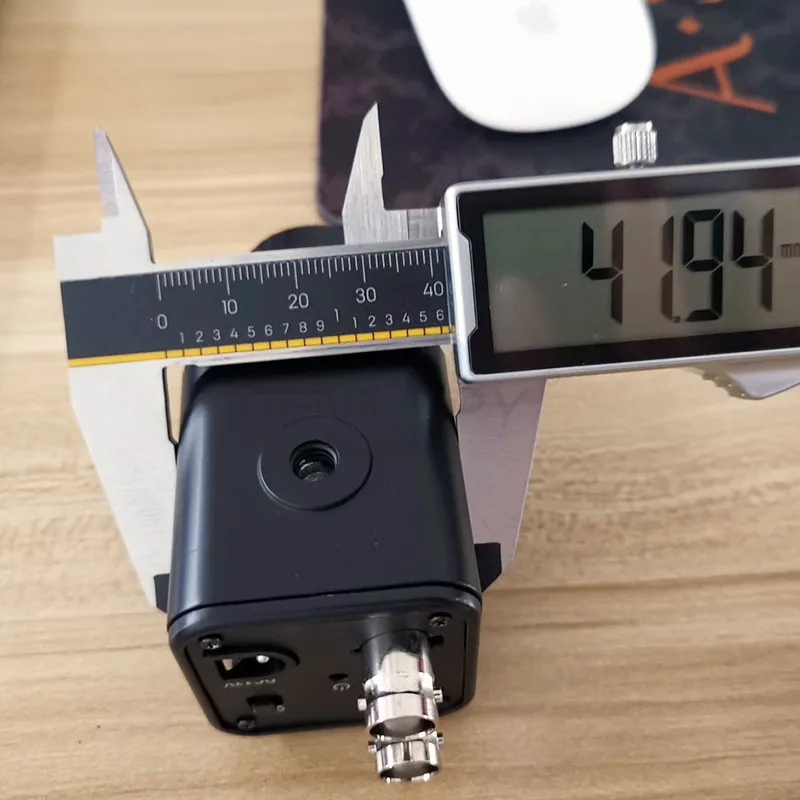

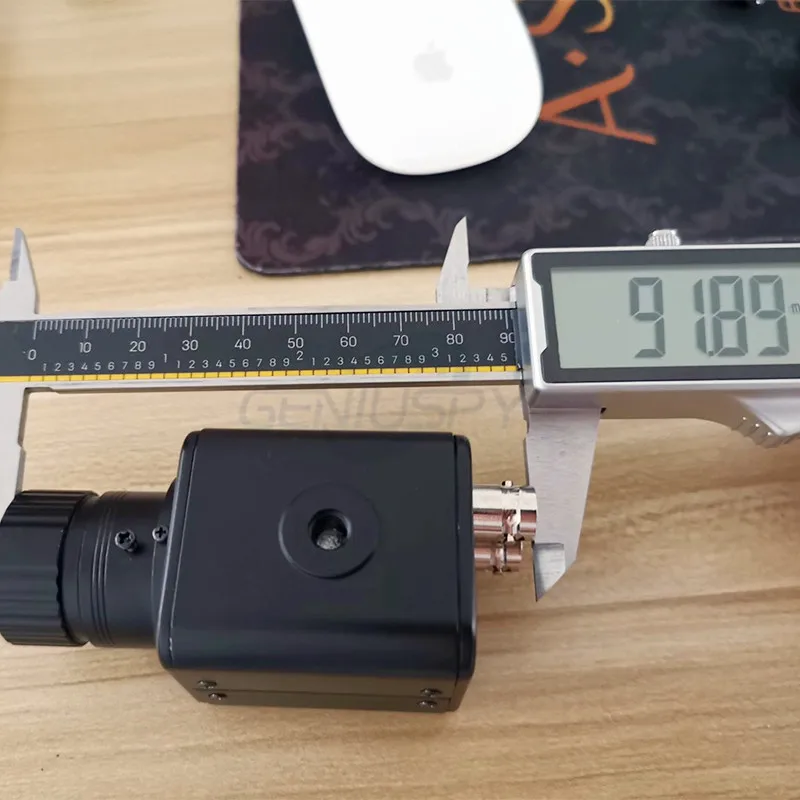

    Size(mm)

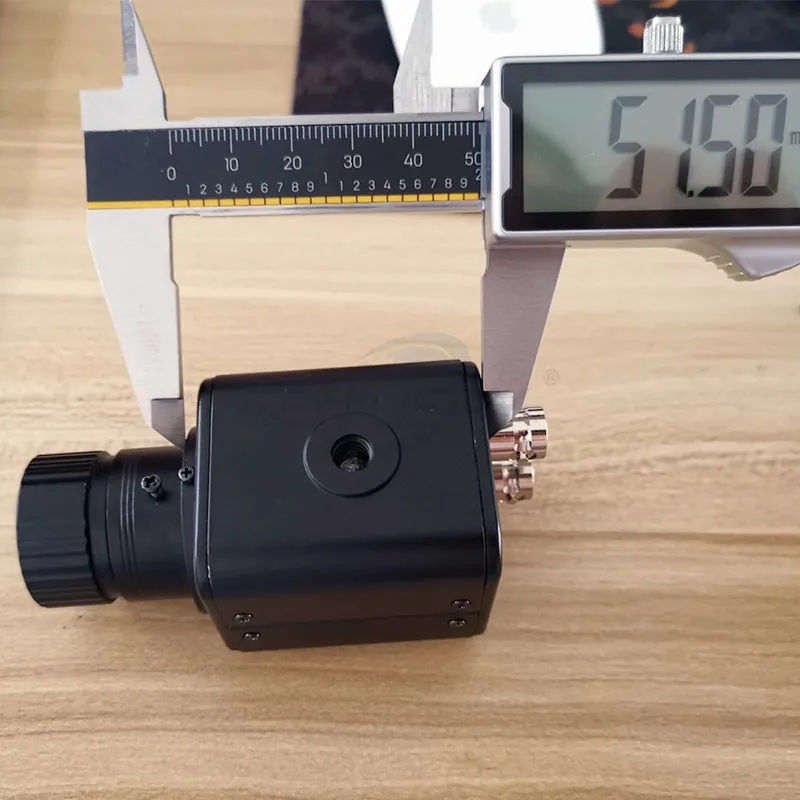

    L=51.5mm*W=41.94mm*H=44.34mm

    This module can work at-40°Celsius.

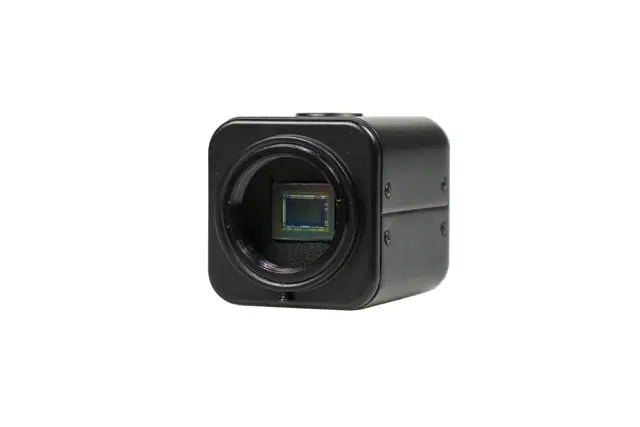

    1/2″ 2.1 Mega Pixel PanasonicCMOS Sensor

    1920x1080P Full HD Resolution

    HD/EX-SDI video signal output

    WDR, 3DNR, BLC functions

    Support Privacy Zone

    Motion Detection

    OSD Menu(Support English, Italian, Dutch, French, Spanish,German or Russian)

    Specification IMX307 30fps:

    Total Pixel

    2010(H)x1108(V)

    Actual pixels

    1920(H)x1080(V)

    Lens

    NA

    Resolution

    1200TV Line

    Min.Illumination

    Color 0.2lux, Black 0.01lux

    Shutter

    Auto 1/25~1/3000

    Frame cumulative

    Auto(Max x4)

    SNR

    50dB

    BLC

    WDR, BLC,(D-WDR)

    DNR

    3D

    Digital amplification

    x96

    Privacy covered

    32 Area

    Motion detecting

    OK

    OSD

    OK

    Function

    Mirror,Sharpness,Digital Zoom,Privacy Mask

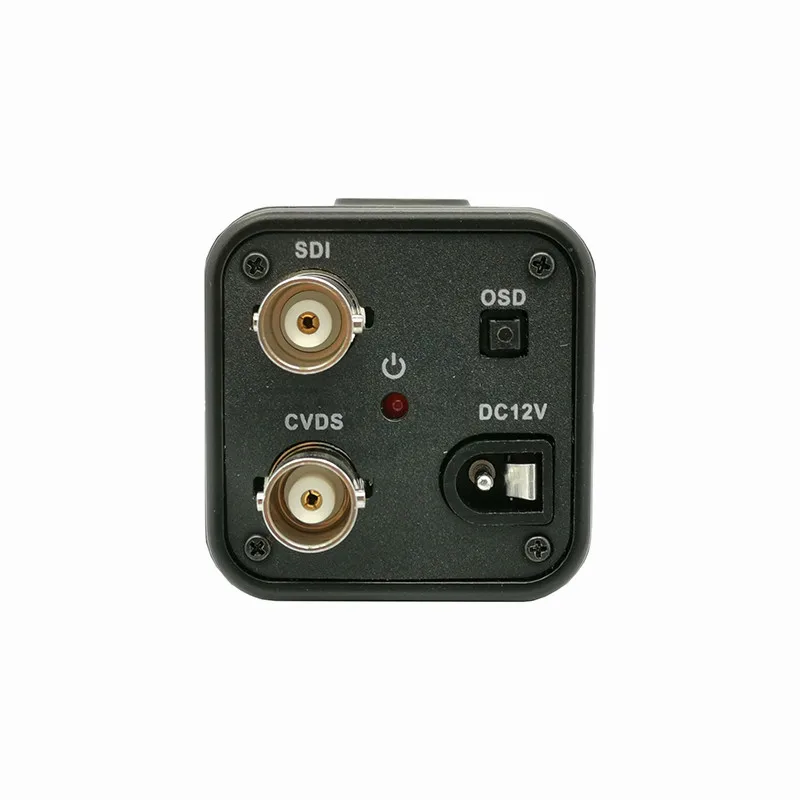

    Video output

    SDI: SMA connector,

    CVBS: BNC connector ( for test use )

    Power

    DV12V

    Consumed Power

    Max 2W

    Operating temperature

    -10 Celsius degree~+50 Celsius degree

    Operating Humidity

    Max 90%RH

    Size

    Weight

    Package List:
    1 x camera
