Please select the package you need, we will send as the option you choose.
Package Included (The 3 options are as follows):

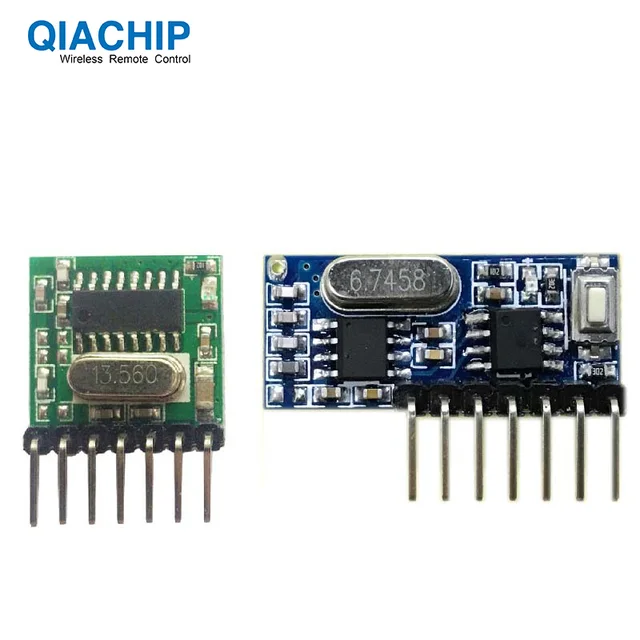

1) Receiving Module and Transmitting Module
1 pcs * Receiving Module
1 pcs * Transmitting Module
2) Transmitting Module Only
1 pcs * Transmitting Module
3) Receiving Module Only
1 pcs * Receiving Module
note:
*The package Included different products because you choose a different package.*
This package does not include the antenna.
Application environment
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

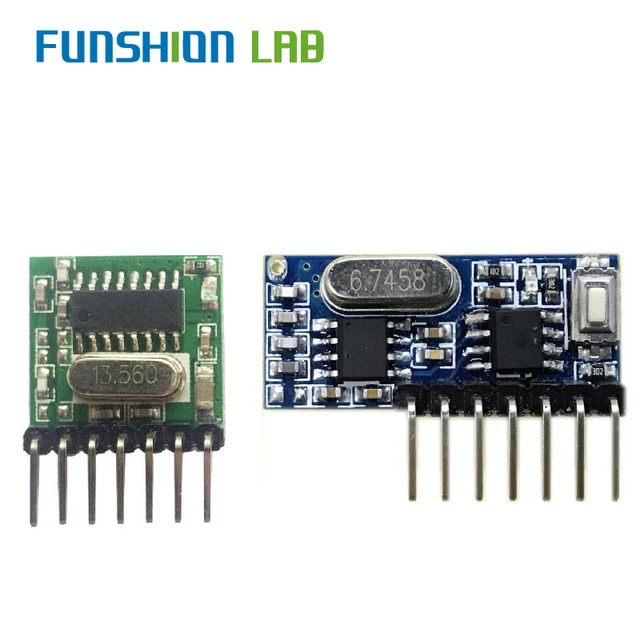

Product Description

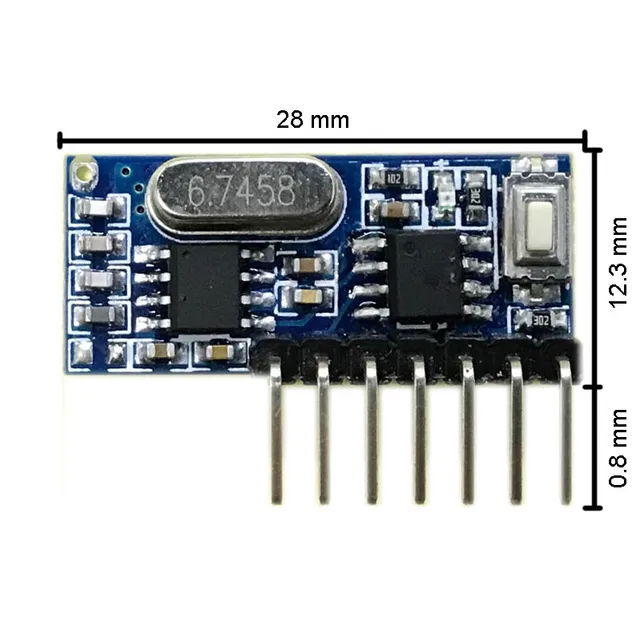

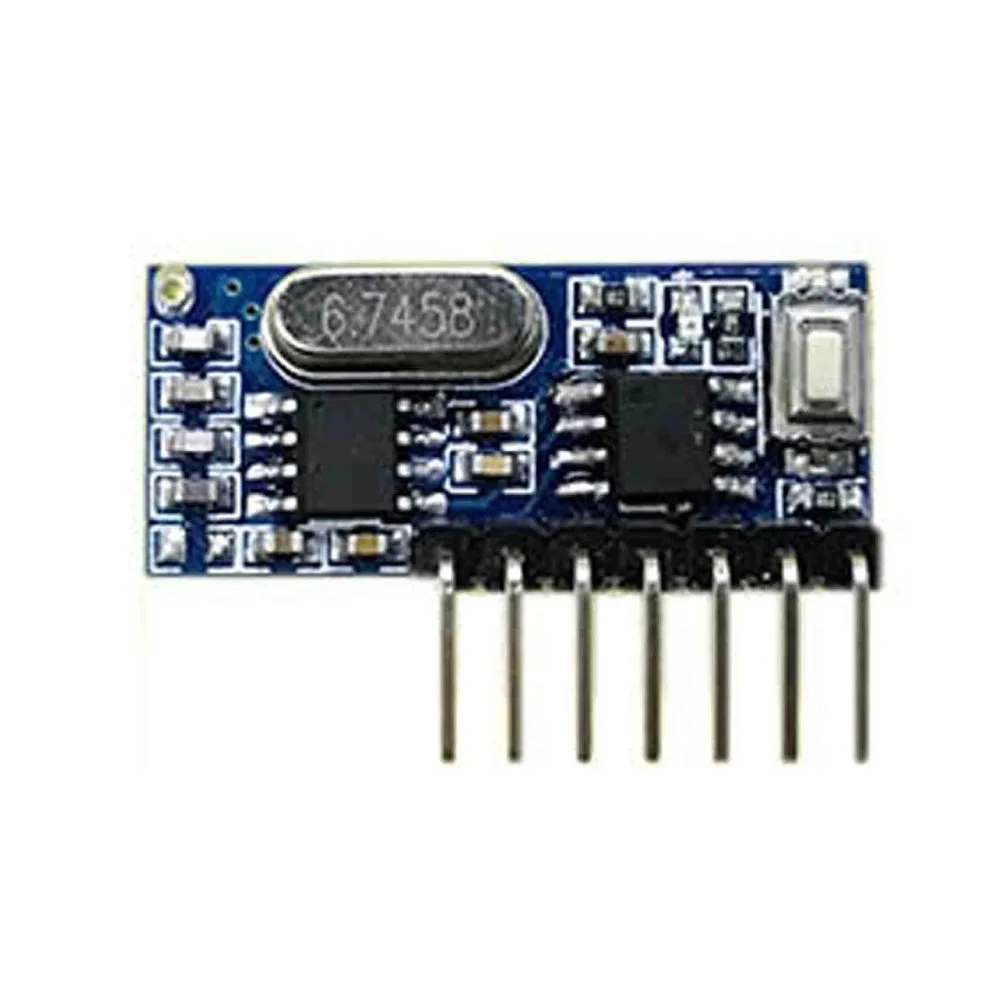

[Receiver module ] Product Model: RX480E-4
Model: RX480E-4
Working voltage: DC2.5V-5V
Working current:3MA
The sensitivity: -108DBM
rate: MAX 10KB/S
Working mode:Point move, self-locking, interlocking
The output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons.

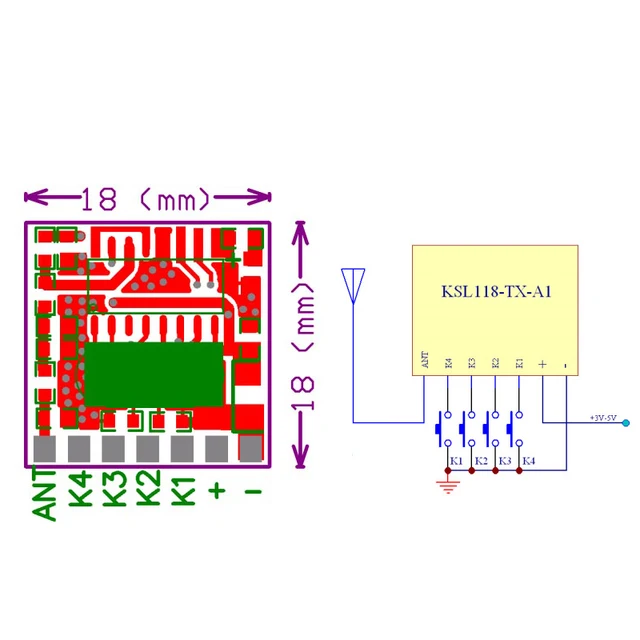

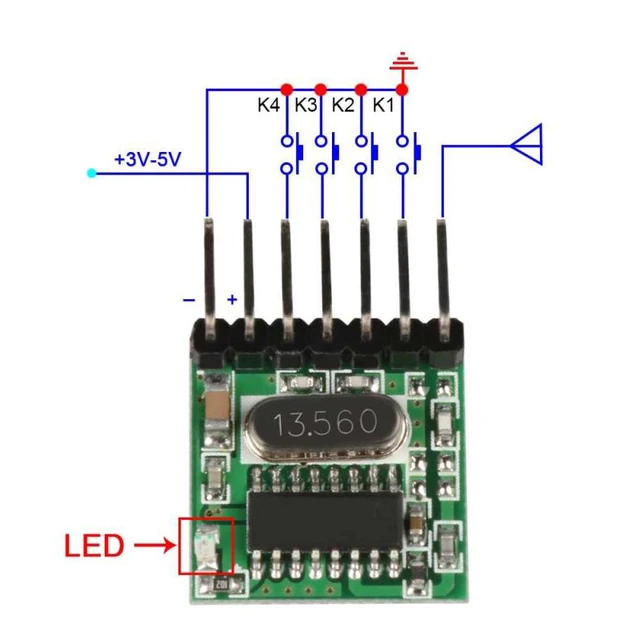

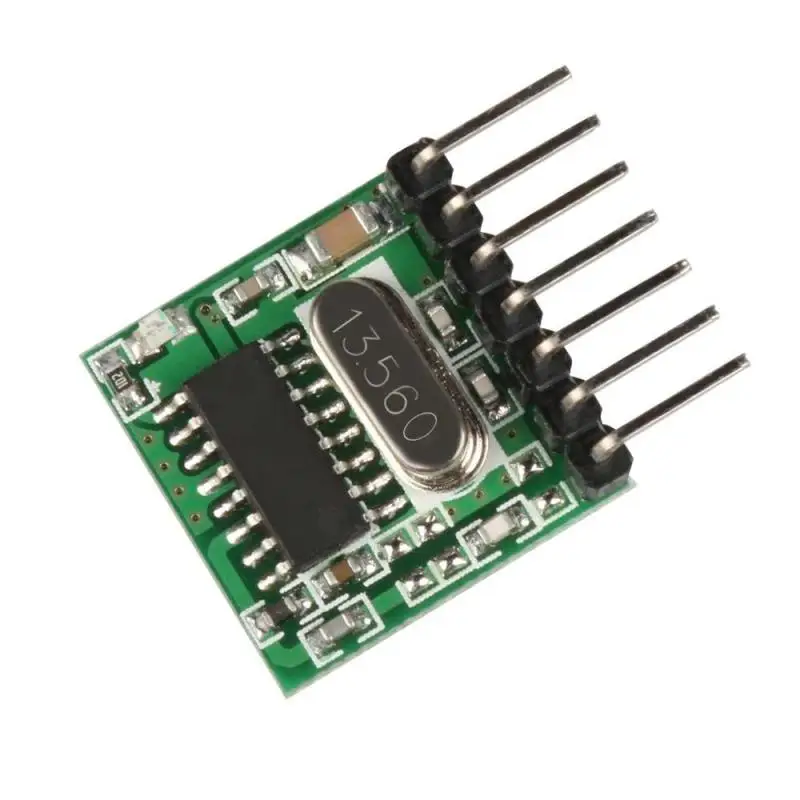

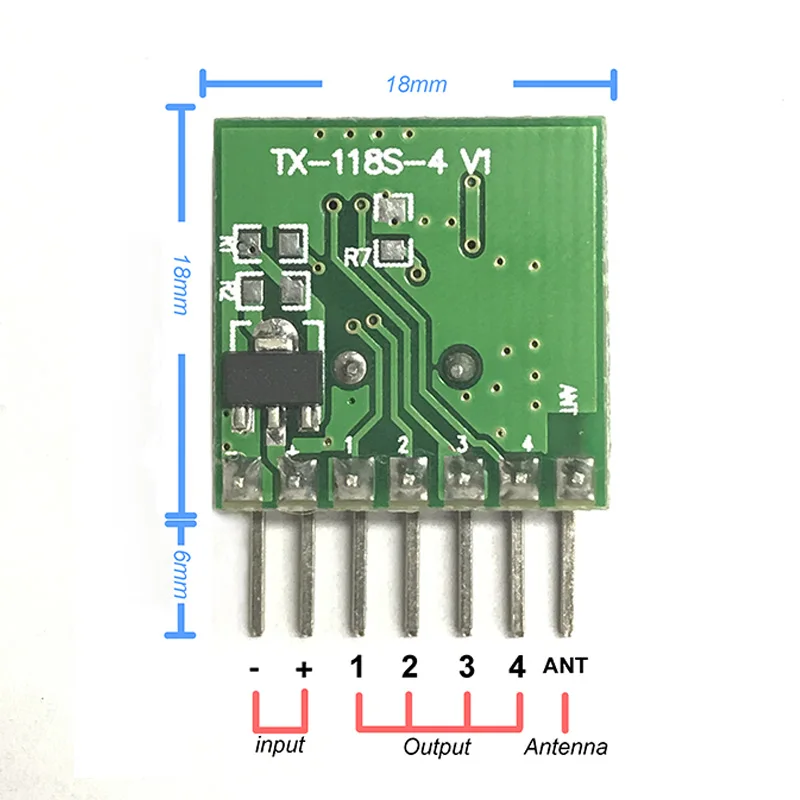

[Transmitter module ] Product Model: TX118SA-4
Transmitting power: 11dbm
Distance: 20-100M
Emission current: 10MA
Standby current: less than 3UA
Rate of fire: maximum 10KB / S
Transmit deviation: +/- 7. 5KHZ / narrow-band emission
Modulation: ASK
Operating Voltage: DC 3V-24V
Customizable special code: MCU type.Optional fixed encoding type: PT2262 / EV1527 / HT6P20B
Key data: A, B, C, D groups of 4 inputs can be combined into 15 groups.Standby current: <3UA
Each module has a unique ID address code.
All modules K1-K4 four key code is the same.
Instructions
How To Programming:
1. Delete existing data: Press learning button 8 times. Response: LED flashes 7 times.
2. Learning remote code: press learning key once, twice or three times (see below).
LED turns on: learning mode is active. Press any button of the remote control.
LED indicator flashes three times: learning successfully completed.
3. Test: after the above operation , the receiver board can be controlled by the remote control .
More transmitters with different IDs can be learned and stored additionally, starting with step 2.
A mixture of different modes is possible.

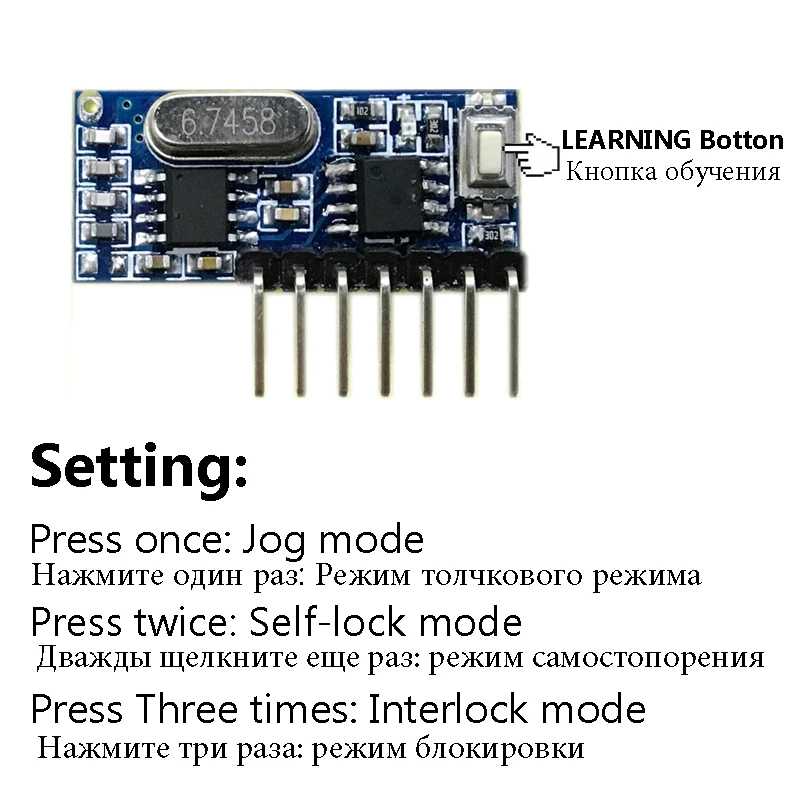

Button usage (sets mode and starts pairing process):
Press once: Inching mode (Momentary Mode)
Press twice: self-Lock Mode (Toggle-Mode of the 4 Channels)
Press three times: interlocked mode (selected channel active and be cleared, if another channel becomes active)
(This instructions is provided by Manfred, thanks to Manfred)
Applications
1.wireless power switch, socket, remote control switch, receiver module,
2. access control, electric cars, motorcycles, automobile anti-theft products, remote door openers, closers control system
3. security, surveillance systems, home security products, electric doors, alarm host, alarm
4. rooms controls, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote rolling gates, sliding door
5. smart home products, remote control curtains, remote MP3, audio
Antenna selection Description
General application mode
For general application mode ,the antenna can directly adopt the general specifications from the market;
The specific information as follows:
The antenna’s core of conductor diameter(including the Antenna skin): 1.0mm,(except the Antenna skin): 0.5mm ;
The wire length of weld end: 17.5mm, the wire length of antenna terminal: 9.5mm;
The diameter of antenna winding (including the Antenna skin):5mm;
The turn number of winding: 15 turns

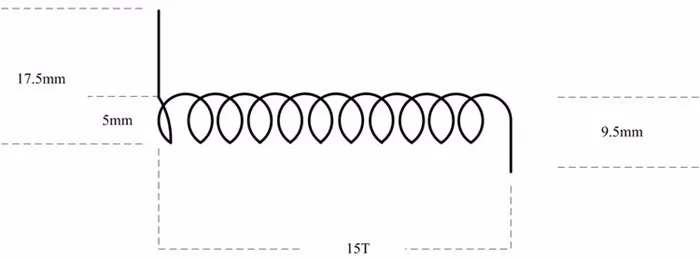

The diagrammatic drawing:
The special enhancement mode
The general application mode cannot satisfy if you need farther communication distance, so the special enhancement mode can receive farther communication distance, and the specific information as follows:
433Mhz Antenna
The antenna’s core of conductor diameter (including the Antenna skin): 1.0mm; (except the Antenna skin): 0.35mm
The wire length of weld end: 12mm
The diameter of antenna winding (except the Antenna skin):3.0mm;
The turn number of winding: 26 turns; The length of the winding: 36mm

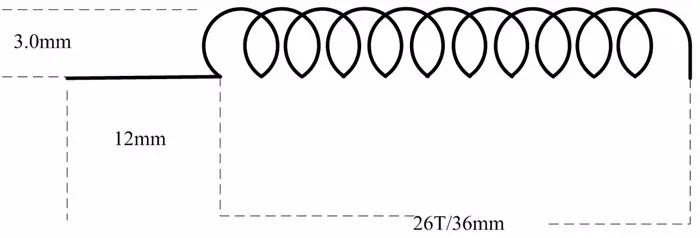

The diagrammatic drawing:
