-5%

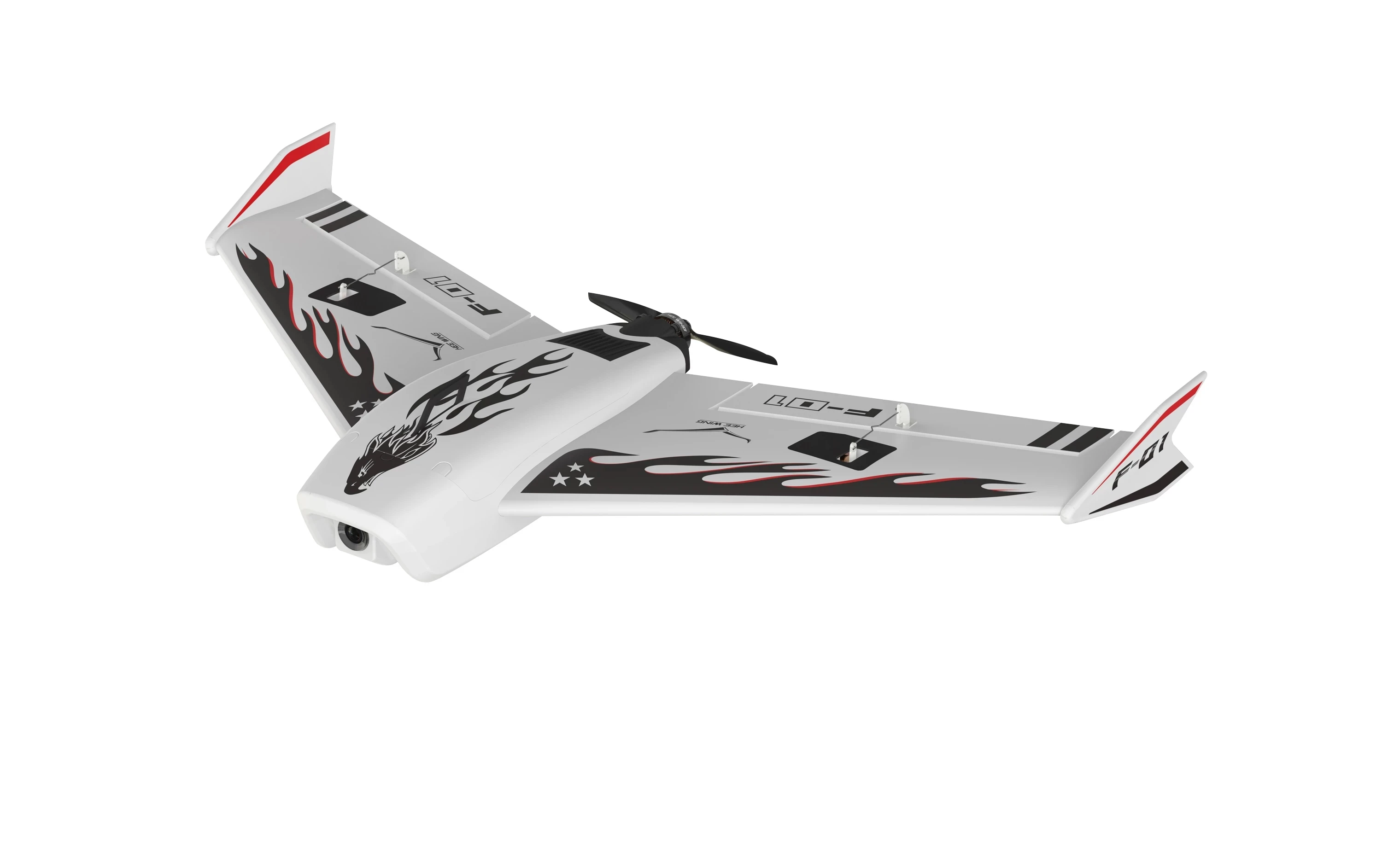

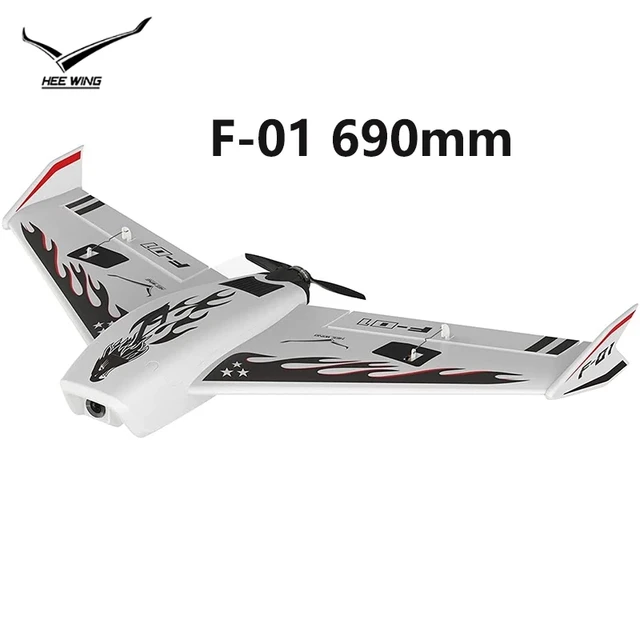

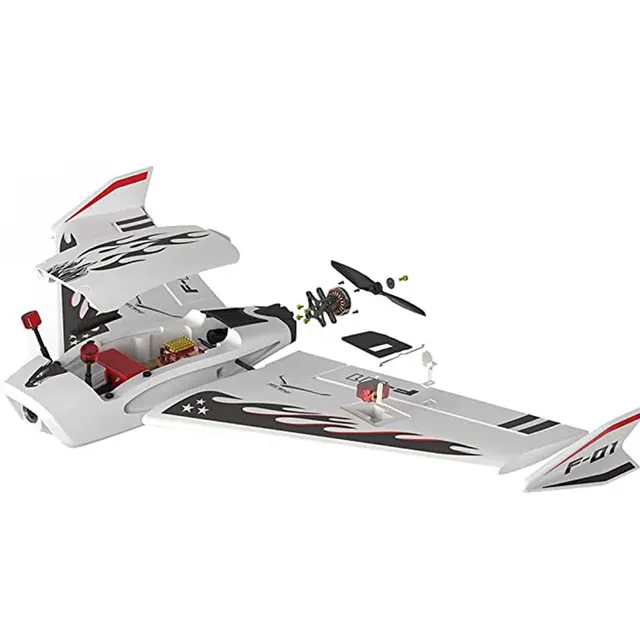

HEE Wing F-01 Ripper R690 Delta Wing RC Plane 90% Pre-assembly , 690mm Fixed Wingspan EPP Foam RC Airplane Easy for Adults

$385.88 $759.04

  • Color:

in stock

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description


    For the assembly teaching video, pls scan the QR code:

    Design Feature

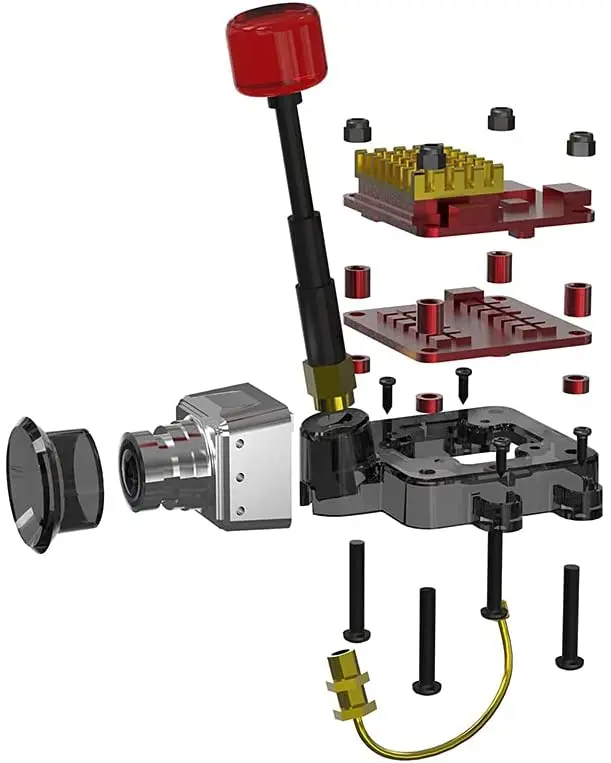

    Tailored for DJI high-definition digital transmission, equipped with two dedicated bases for digital transmission and simulation, taking into account high strength and lightweight

    Thick wing shape, can not only slow and long endurance but also ensure the maneuverability of high-speed maneuvering flight

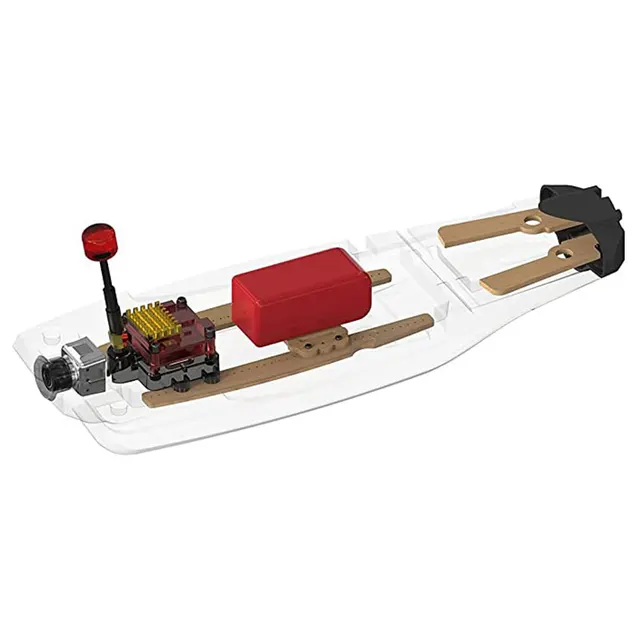

    The cabin adopts a dual-track design, and the aircraft’s center of gravity can be adjusted at will

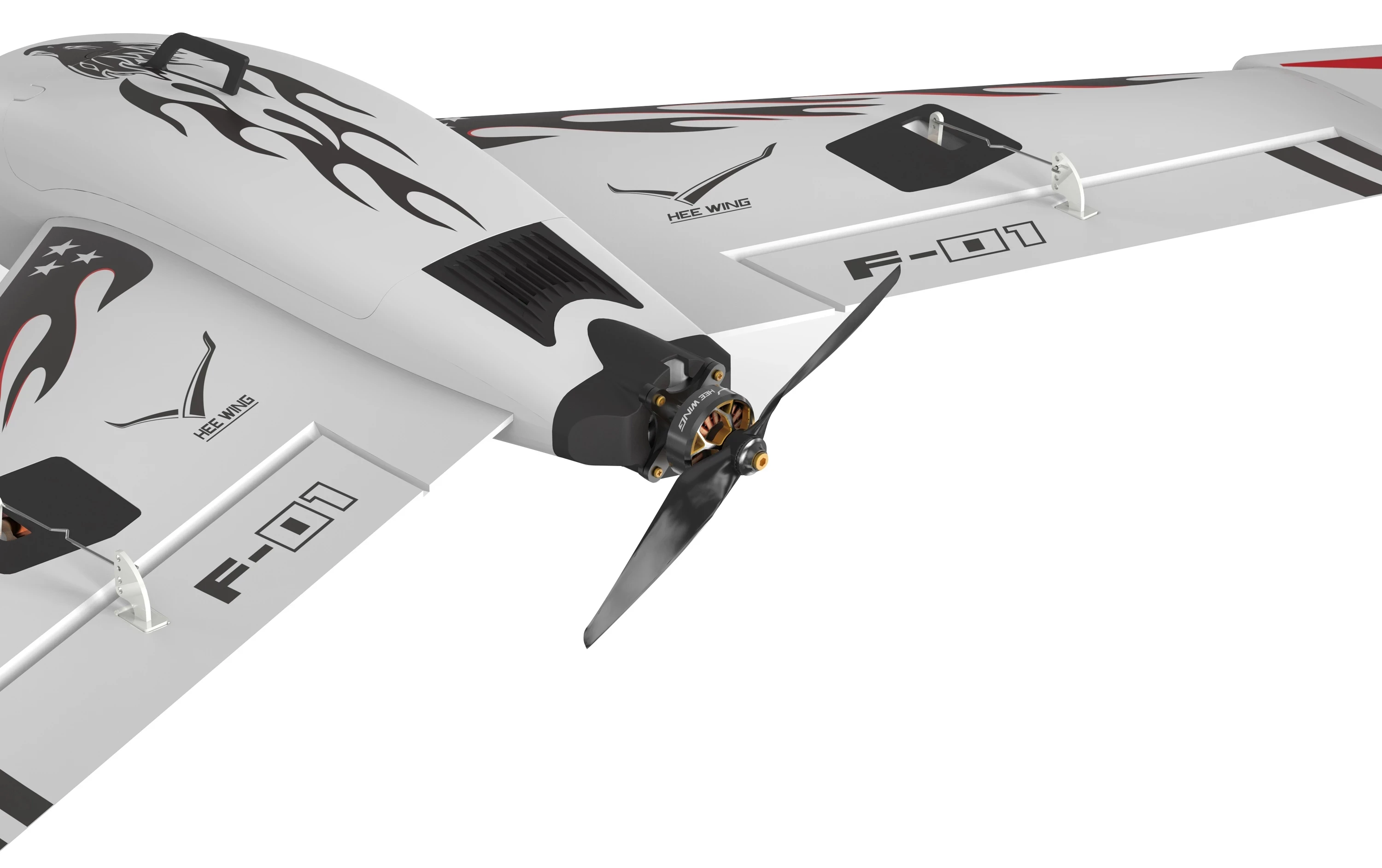

    A new way of fixing the propeller, extremely lightweight

    The light-transmitting design of the taillight ensures that the pursuit of the target is clearly visible, and the fun is unlimited

    The independent detachable lens plug prevents excessive airflow into the warehouse.

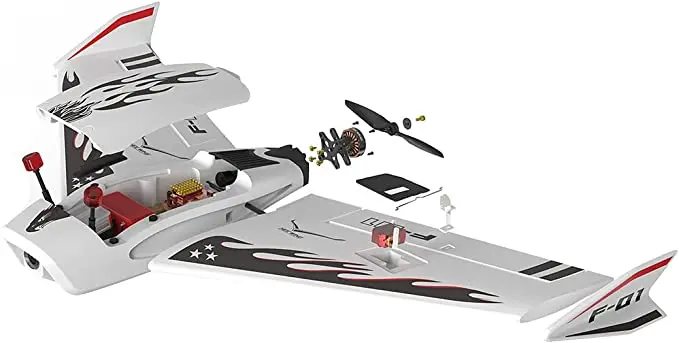

    Four magnetic structure, firmly lock the cabin cover

    The wing adopts three embedded carbon fiber rods with different angles and a high-strength design, which can easily cope with large loads and high-speed flight.

    Horizontal/Vertical Two battery placement methods

    Small wingspan, large space, worry-free placement of electronic equipment

    The unobstructed intake fluid design ensures that the electronic equipment in the cabin always works coolly

    Specification:

    Material:EPP/ABS /Carbon Fibre
    Size:Wingspan690mmHeight:88mmLength:415mm
    Weight:150g
    take off weight:350g~750g

    CF Szie:
    4. 7mm*3. 2mm*400mm (OD * ID * Length, wing tandem bar)
    7mm*5mm*170mm (OD * ID * Length, wing embedded stiffener rod)
    5mm*1mm*220mm (Width * Thickness * Length, Inset Reinforcements on Wings)

    Body space:

    battery compartment:175mm*75mm*55mm (maximum size)
    ESC compartment:70mrn*38mm*20mm (maximum size)
    Camera: 20mm*21mm*30mm (maximum size)
    Camera protection ring: outer diameter 17. 5 inner diameter 14mm / 15mm, height 12mm

    Material: ABS
    Minimum flying speed: <27km/h
    Maximum flight speed: >200+km / h

    Note:
    Over 100km/h, a lens cap must be installed to prevent excessive air from entering and detaching the hatch.
    Maximum endurance time:> 70min
    Maximum cruising range: >45km

    Recommend (Not include):
    Recommend Power: 2205/2350kv
    Recommend Battery: 3-4s   Recommend :ESC: 35A
    3S 6inch Biblades    / 4S 5inch Biblades

    3-4S 1550 -2200MAH     6S 1300-1550MAH

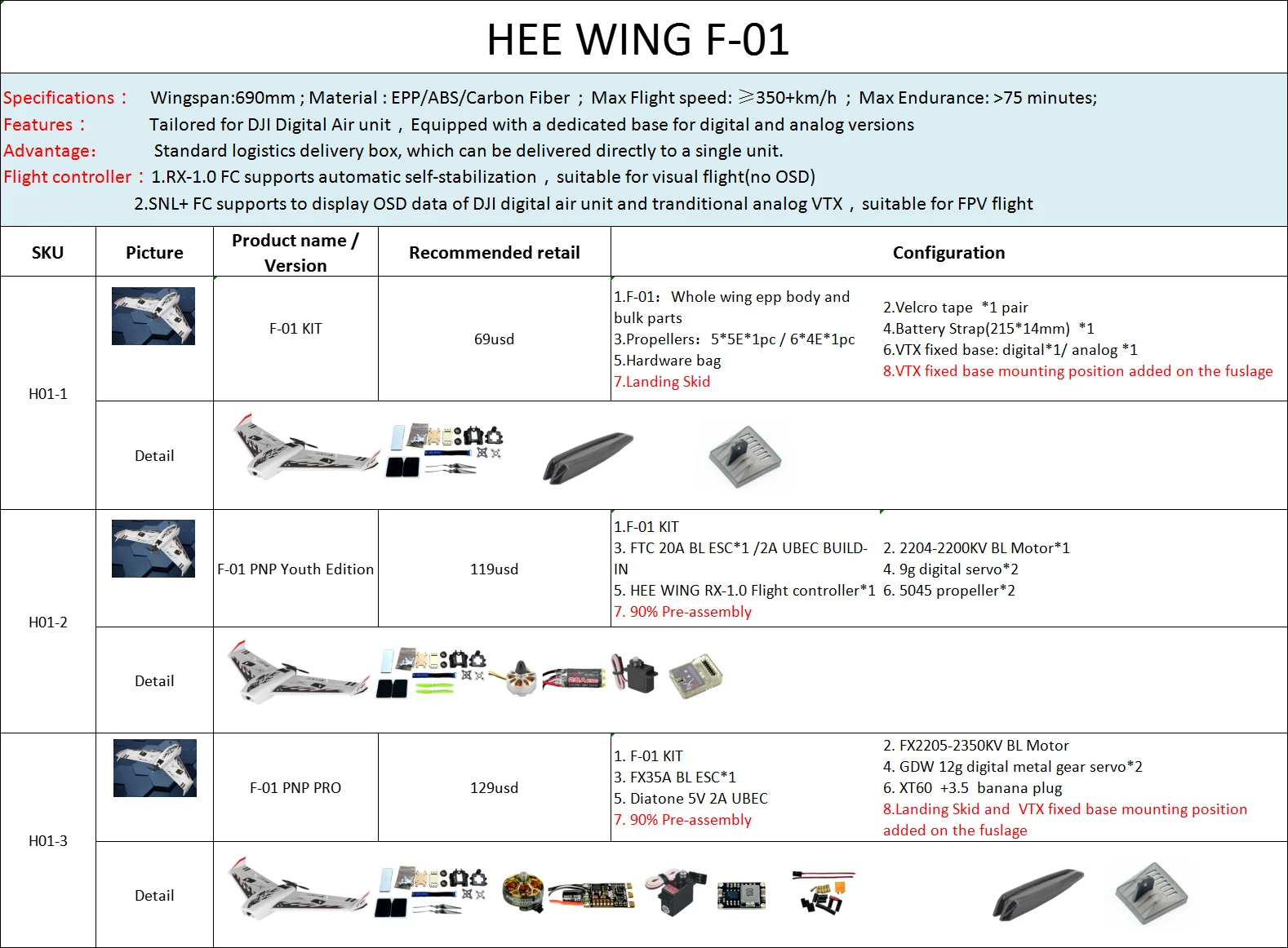

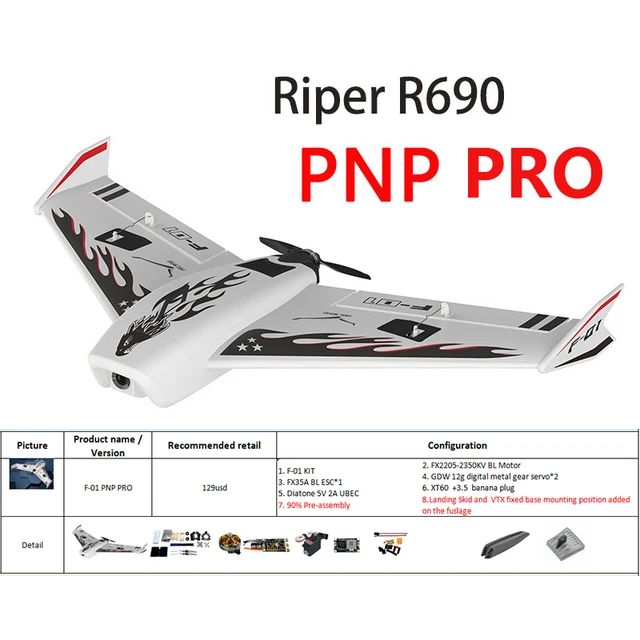

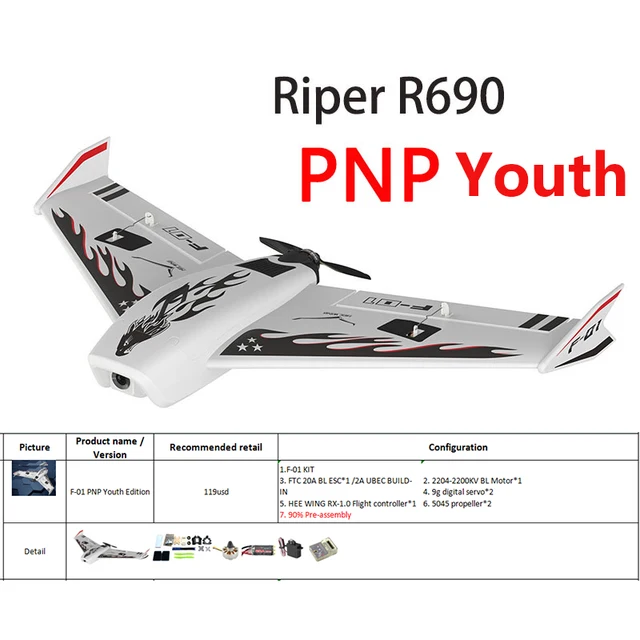

    The difference among the three version of F-01, pls just see the comparasion.
