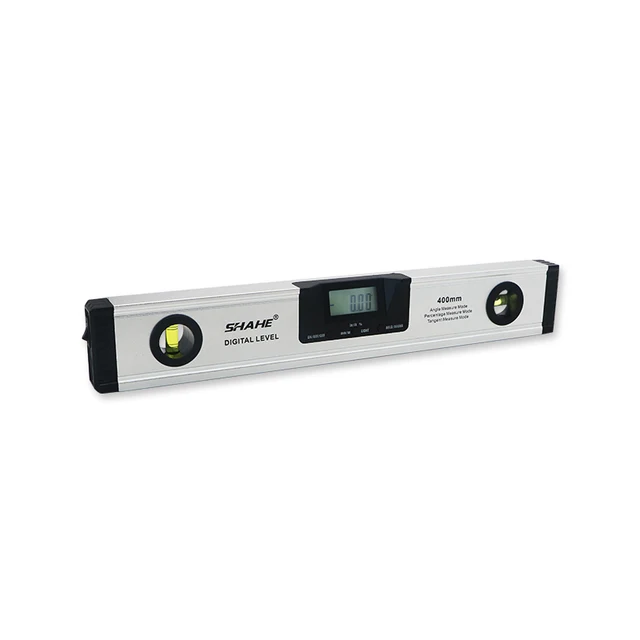

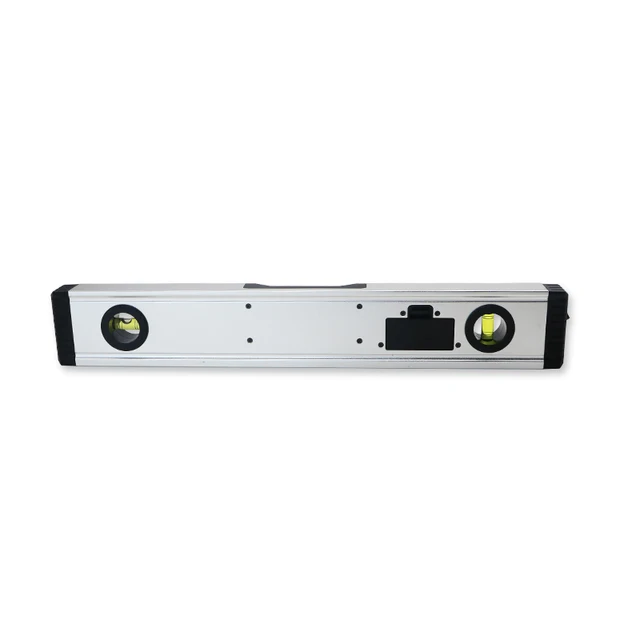

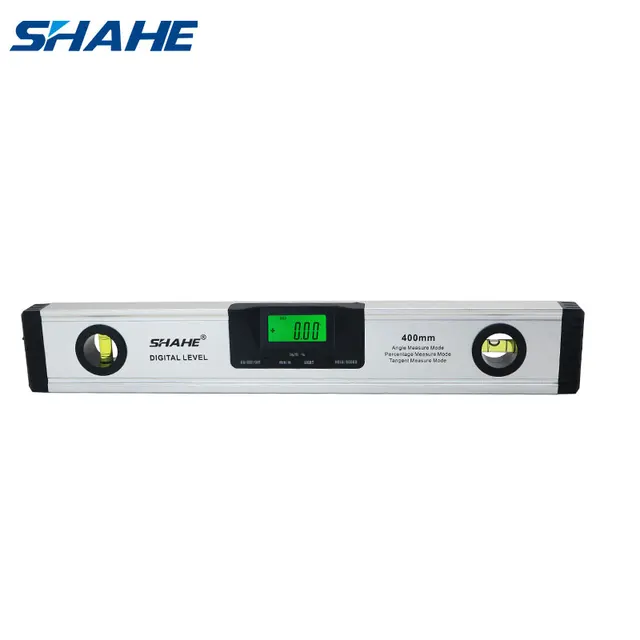

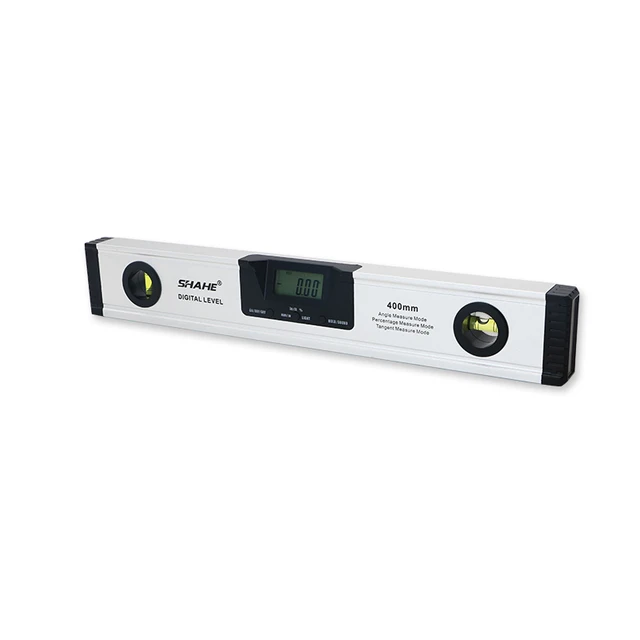

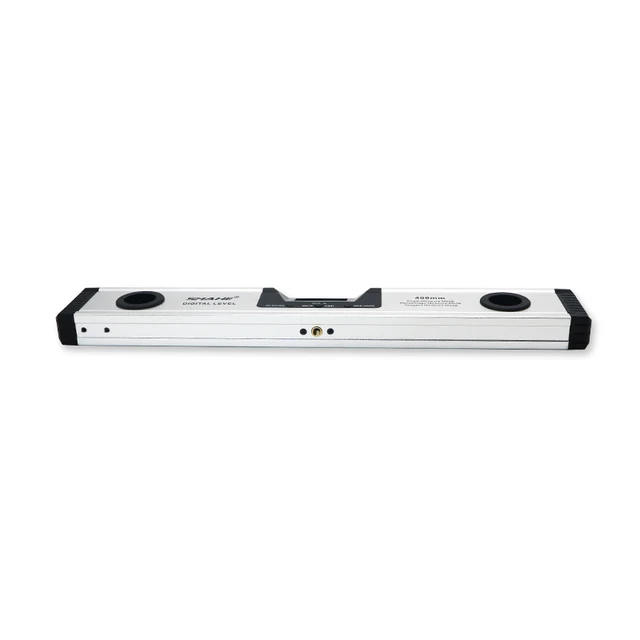

Shahe 400mm Magnetic Digital Protractor Angle Finder Inclinometer Electronic Level 360 Degree Aluminum Alloy Bubble Spirit Level

From $117.73

  • Color:

in stock

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description

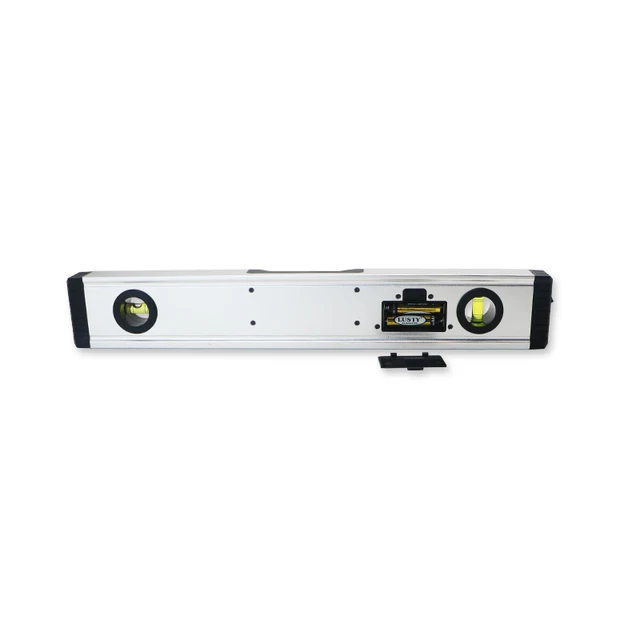

    Note: The parcel will be sent without battery ,The battery type is 2 pieces AAA battery



    Button Function

    ON/REF/OFF button, For short press, it turns on and reset to zero, for long press, it turns off.

    m m/m, in / ft ,%,LIGHT button, For short press, it means unit transfer. for long press, it turns on the backlight .

    HOLD,SOUND button, For short press, it means hold the data or not. For long press, it means sound.



    Characteristic & Function

    1.High strength aluminum alloy ruler.
    2.Digital display, clear and intuitive, with high accuracy.
    3.The LCD screen is illuminated and can be used normally in a dark environment. Long press the reset button to realize illuminate switch.
    4.The digital level will be     automatic power off in 3 minutes.
    5.    With a laser emitter, it could do horizontal correction and scribing.
    6.There are     magnets on the bottom.
    7.There are two versions available, with laser or without laser,There are two versions available, with magnets or without magnets Please order the one you need before you purchase.
    8.The magnetic strip at the bottom can be adsorbed to the working face and the measurement is more accurate.



    Technical Data

    Measuring range:4X90°. Length:400mm
    Resolution:0.05°.
    Accuracy:±0.2°.
    Repeatability:0.1°.
    Battery:2*AAA batteries.
    Working temperature:0-40℃.
    Working humidity ≦80%.
    Storage temperature:-20-60℃.
