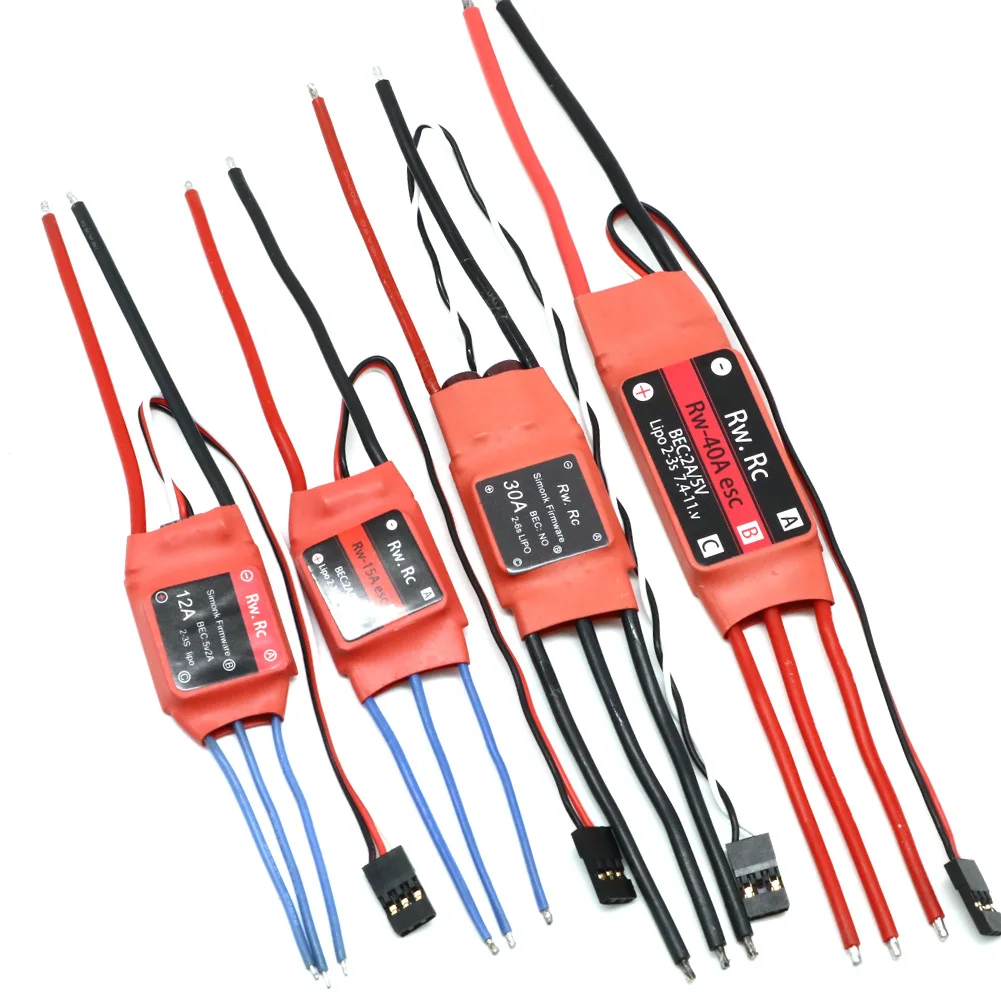

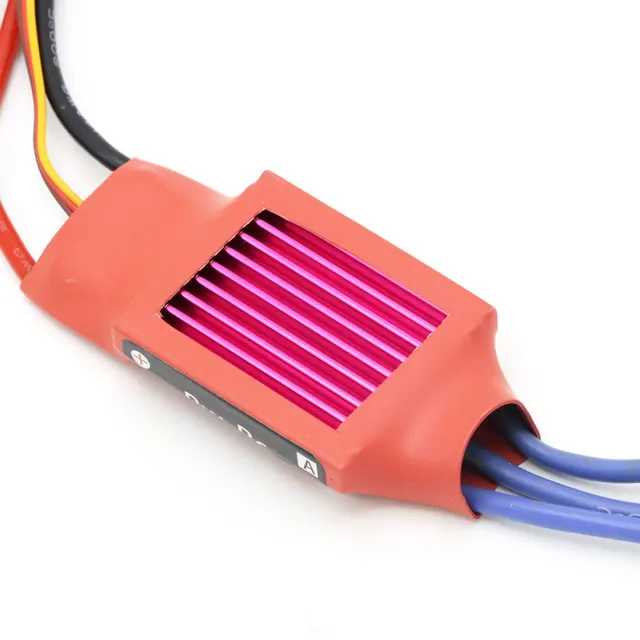

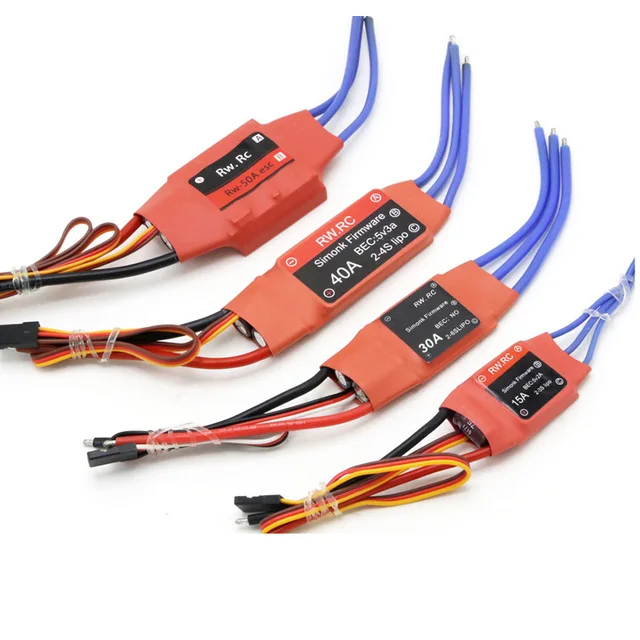

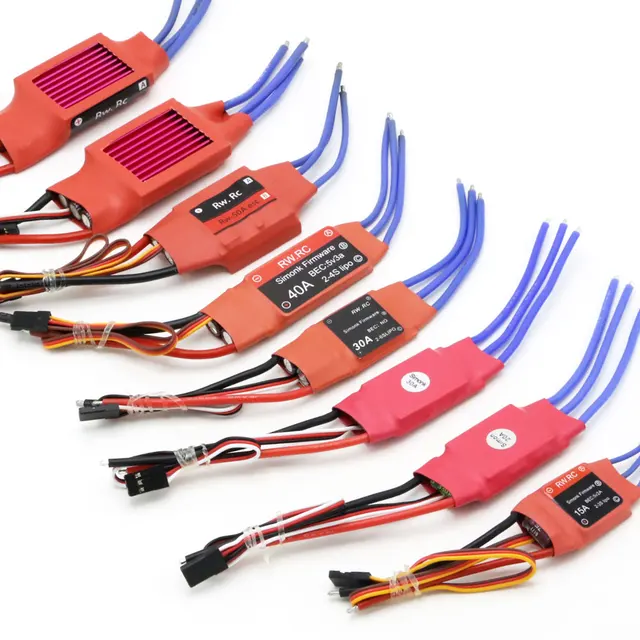

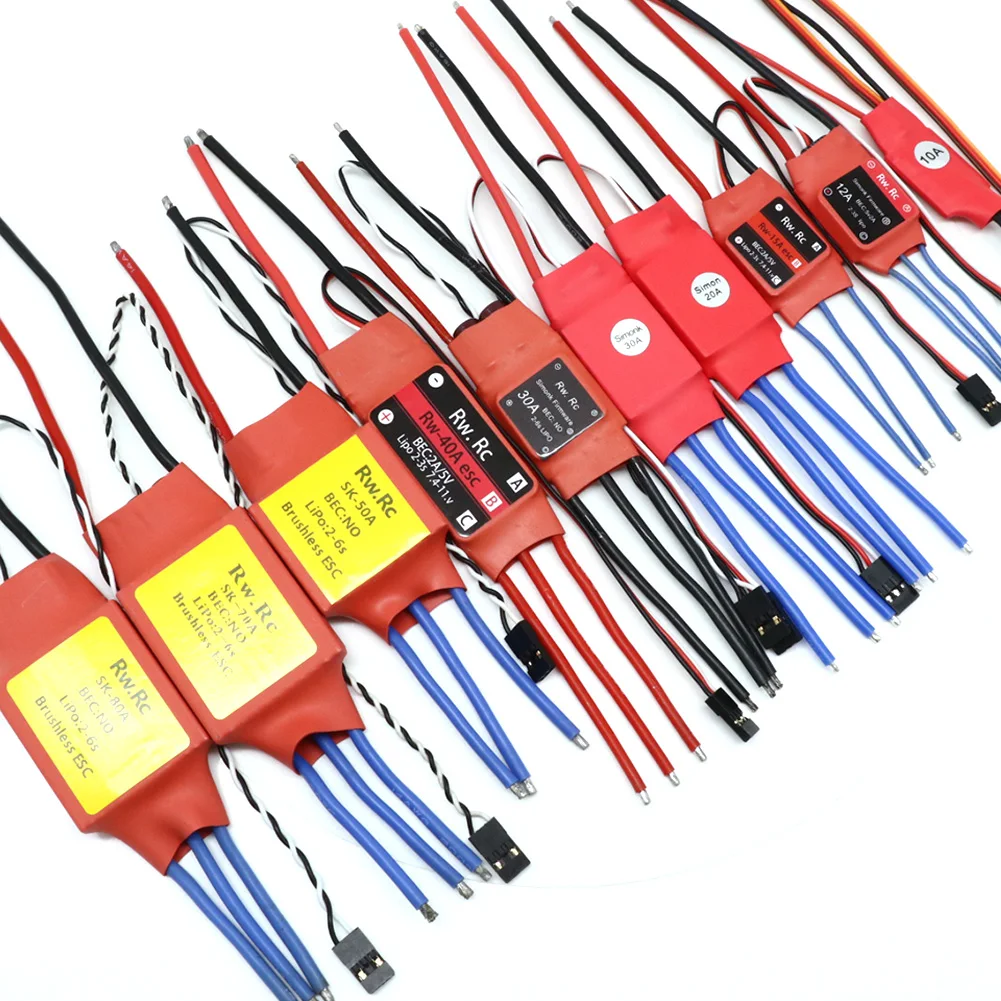

Simonk 10A 12A 15A 20A 30A 40A 50A 70A 80A Firmware Electronic Speed Controller ESC for RC Multicopter Helicopter

From $22.87
  • Color:

in stock

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description

    This hardware, with the SimonK firmware, gives you the perfect solution for multirotor use:

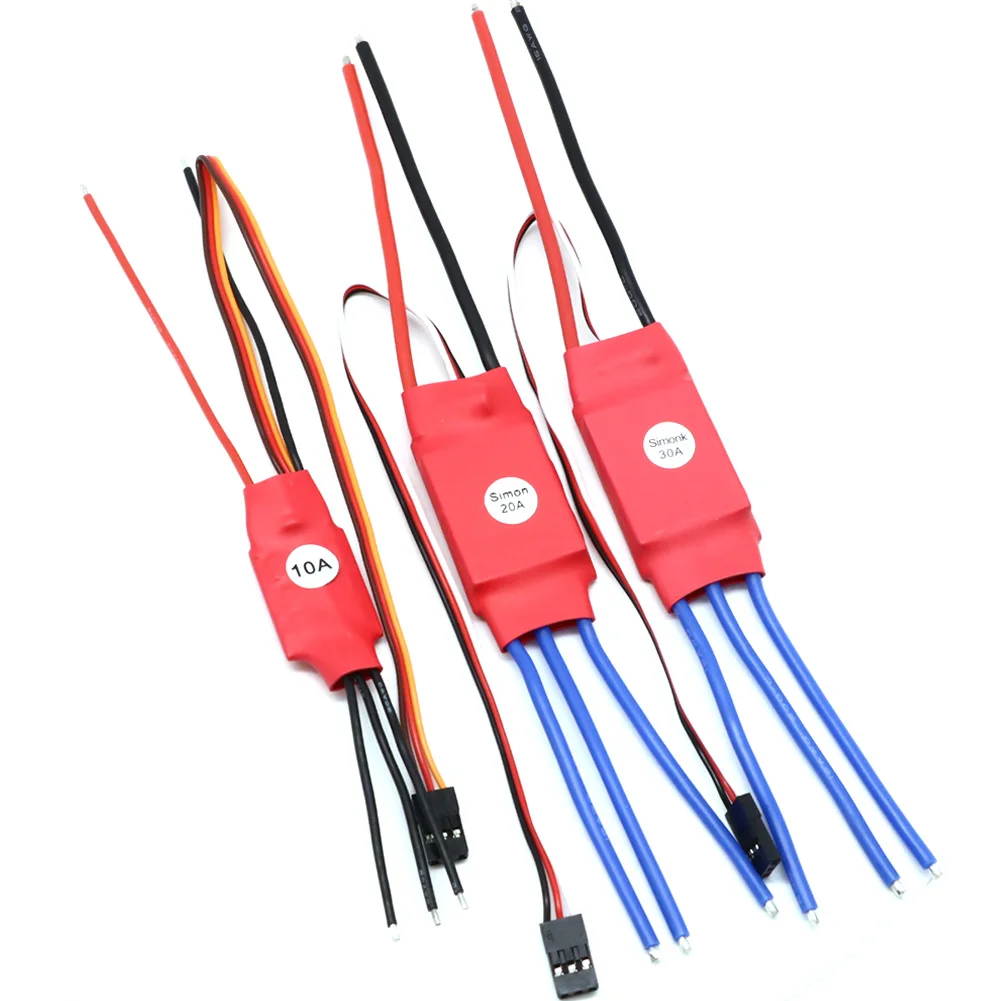

    simonk10A (2-3S):

    Weight: 10 g
    Size: 23.5x15x 6.1
    Input voltage: (2-3 s Lixx).
    Drive current: 10A (Max: 13 A/10S)
    BEC Input :3V1A
    Compatible signal frequency:30Hz – 499Hz

    Simonk12A ( 2-3S ):

    Weight:12g
    Size:28*20*6.1
    Input voltage:2-3S Lixx
    Drive current:12A (Max:14A/10S)
    BEC Input:5V2A
    Compatible signal frequency: 30Hz – 499Hz

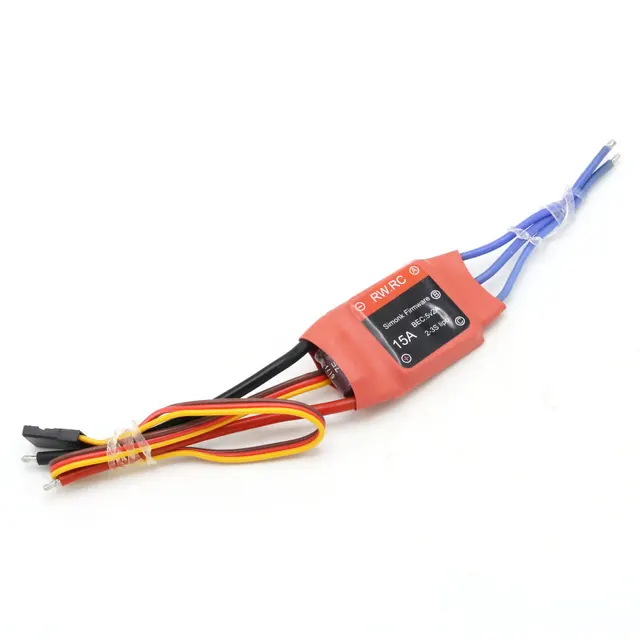

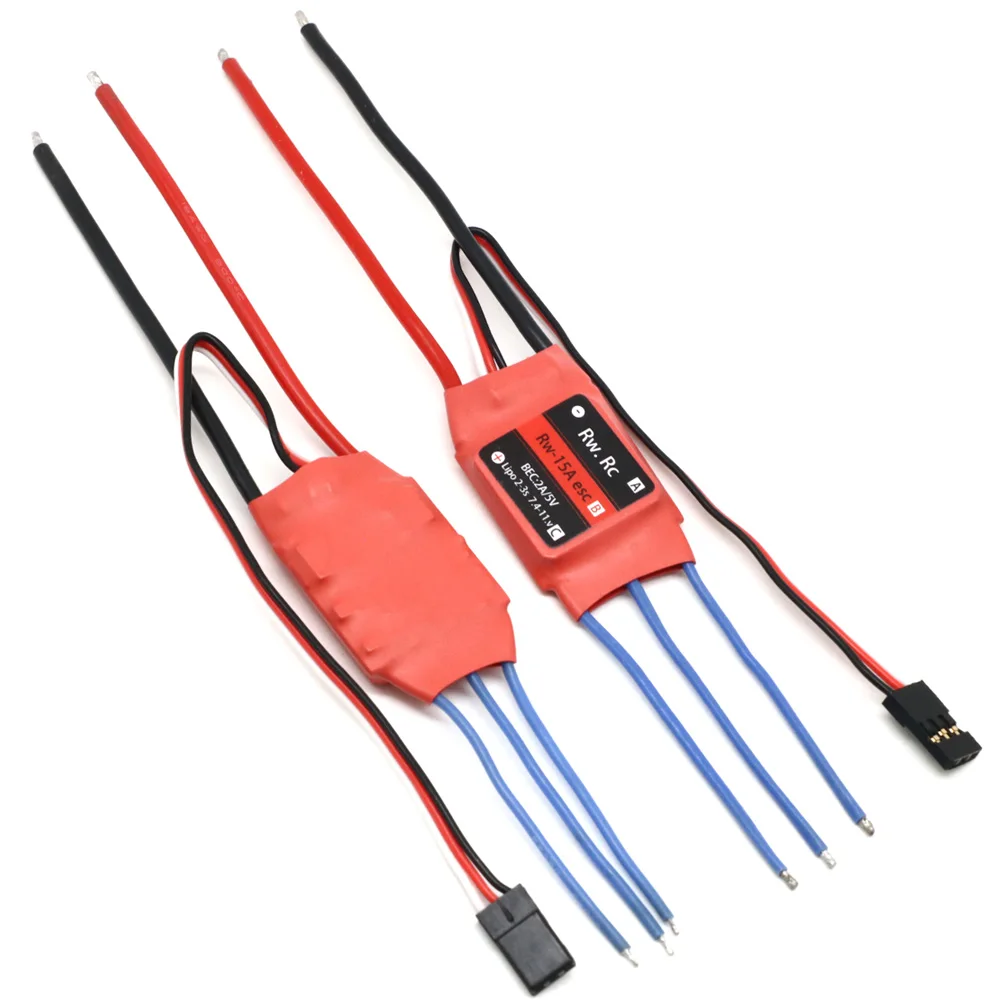

    simonk15A (2-3S):

    Weight:15g
    Size:50*22*8
    Input voltage:2-3S Lixx
    Drive current:15A (Max:25A/10S)
    BEC Input:5V2A
    Compatible signal frequency: 30Hz – 499Hz

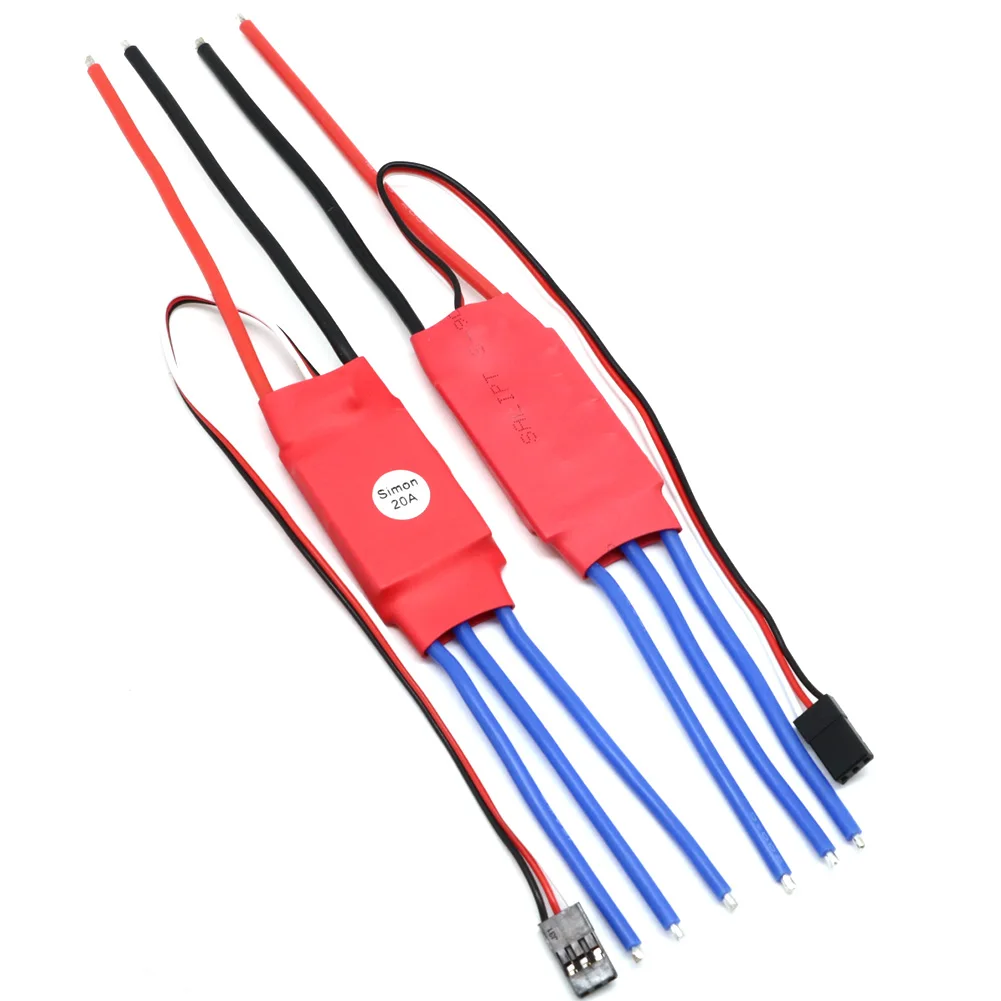

    simonk20A (2-3S):

    Cont Current: 20A
    Burst Current: 28A
    BEC Model: Linear mode
    BEC Output: 5V3A
    Li-ion/Li0poly:2-3S,or Ni-MH/Ni-Cd:4-12NIMH
    Weight: 21g
    Size: 32*24*7mm

    simonk30A(2-4S):

    Max cont. current: 30A
    Peak current: 40A (10s)
    Voltage: 2-3S lixx,
    BEC: 5V/3A
    Size: 50x23x8mm
    Weight: ~28g

    simonk30A-OPTO (2-6S)
    (the ESC need the power from receiver or the flight control)

    Weight:25g
    Size:50*23*8
    Input voltage: (3-6S Lixx)
    Drive current:30A (Max:40A/10S)
    BEC Input : NO
    Compatible signal frequency: 30Hz – 500Hz

    simonk40A(2-4S):

    Weight:35g
    Size:68*25*8MM
    Input voltage:2-4S
    Drive current:40A (Max:50A/10S)
    BEC Input: 5V 3A
    Compatible signal frequency: 30Hz – 500Hz

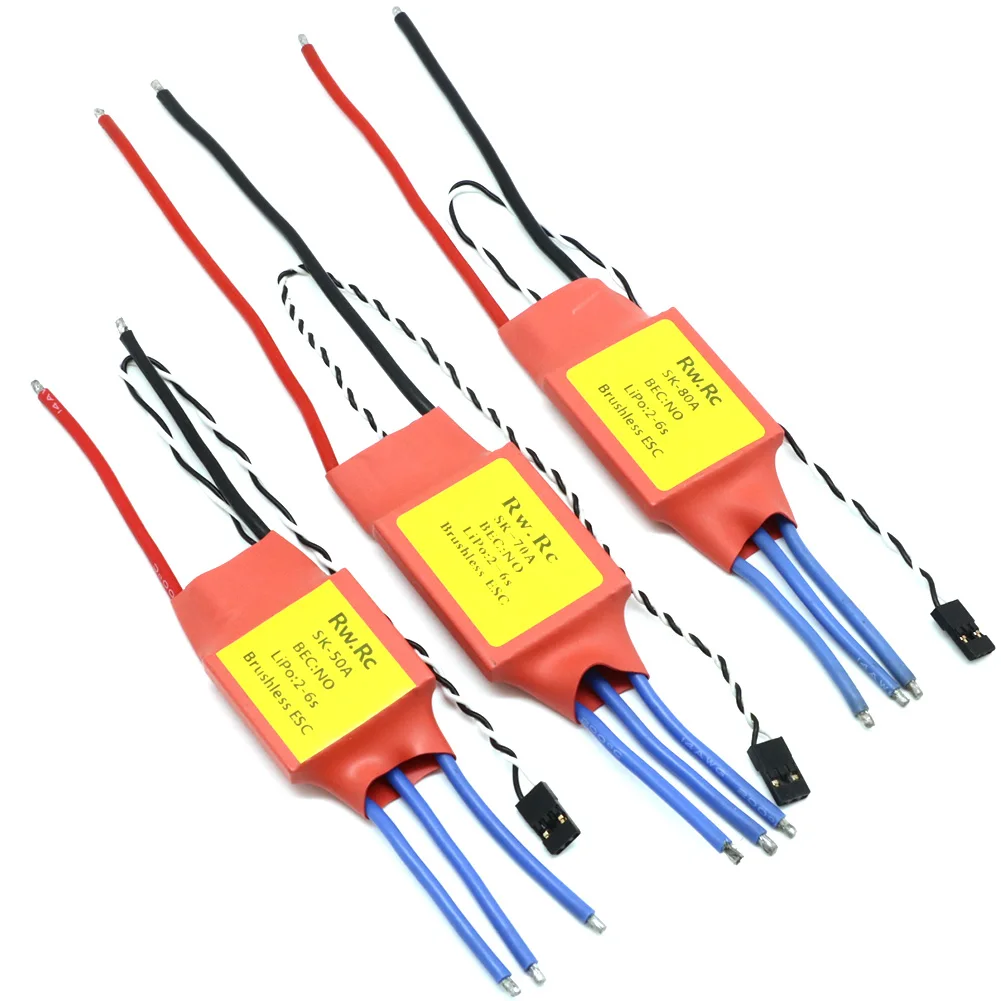

    simonk50A-OPTO (2-6S)
    (the ESC need the power from receiver or the flight control)

    Weight:48g
    Size:53*32*10
    Input voltage: (2-6S Lixx)
    Drive current:50A (Max:60A/10S)
    BEC Input : NO
    Compatible signal frequency: 30Hz – 500Hz

    simonk70A-OPTO (2-6S)
    (the ESC need the power from receiver or the flight control)

    Weight:70G
    Size:78*38*15MM
    Input voltage: (2-6S Lixx)
    Drive current:70A  (Max:85A/10S)
    BEC Input : NO
    Compatible signal frequency: 30Hz – 500Hz

    simonk80A-OPTO (2-6S)
    (the ESC need the power from receiver or the flight control)

    Weight:75g
    Size:78*38*15MM
    Input voltage: (2-6S Lixx)
    Drive current:50A (Max:90A/10S)
    BEC Input : NO
    Compatible signal frequency: 30Hz – 500Hz

    Flashed with the famous SimonK OpenSource Firmware for super-fast throttle response, which makes your quad more responsive and “locked in”. Suited for quads up to 2.5kg, octos up to 5kg. The ESCs do not overheat, burn or lock out – unline many other ESCs flashed with the SimonK firmware.

    The ESC motor leads are reduced to simple bullet connectors, this allows for quick and clean installation inside your multi rotor. Compatible with 2S to 3S battery
