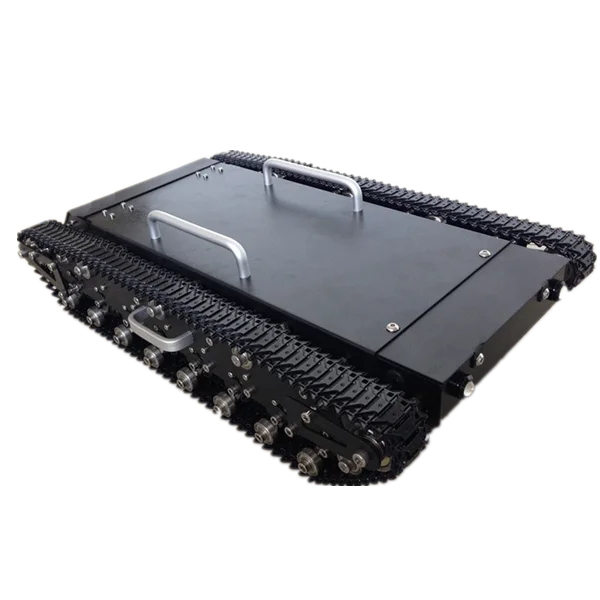

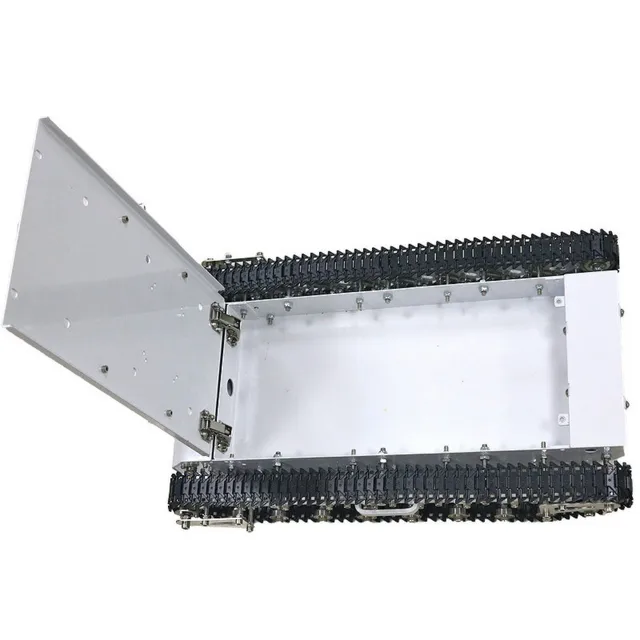

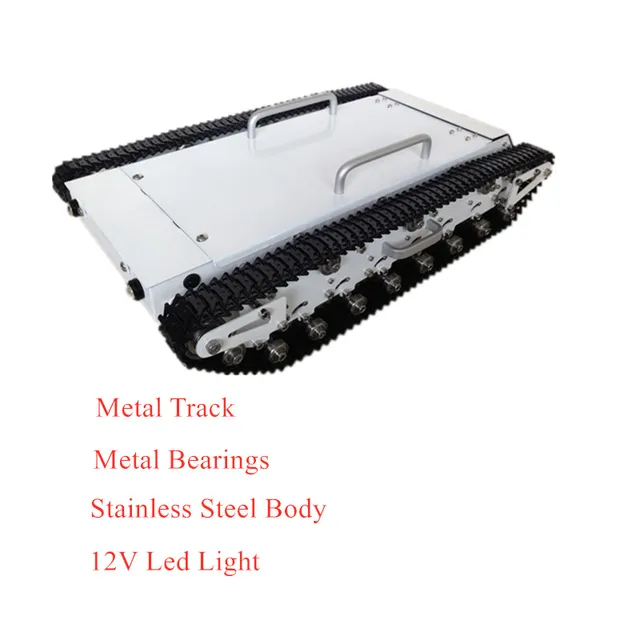

Stainless Steel Big Load Tank Car Chassis RC Large Size Tracked Shock Absorption Metal Track Ready-to-go WT-500 Fighting Robot

$2248.32 $2366.65
  • Color:

in stock

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description

    Product introduction nzvj
    This is a new designed tank chassis. Good climbing ability and can be modified. Many institutions, companies, and universities use this chassis to explore, communiciton, and  for other mobile robot applications
    product parameters nzvj2

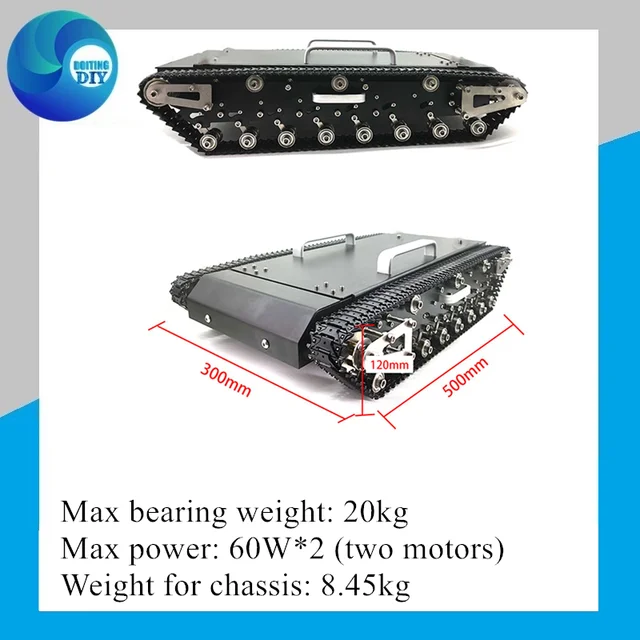

    • Mode: WT-500
    • Outside size: 400*300*120mm
    • Inside size: 250*180*45mm
    • Max bearing weight: 20kg
    • Max power: 60W*2 (two motors)
    • Track width: 40mm
    • Max voltage: 12V
    • Material of track: zinc alloy, can be replaced and/or disambled
    • Max Current: 3A (about 12A for 60W motor)
    • Material of chassis: 304 stainless steel
    • Speed: 0-1.5m/s (default is 0.5m/s)
    • Surface: body spray
    • Weight for chassis: 8.45kg

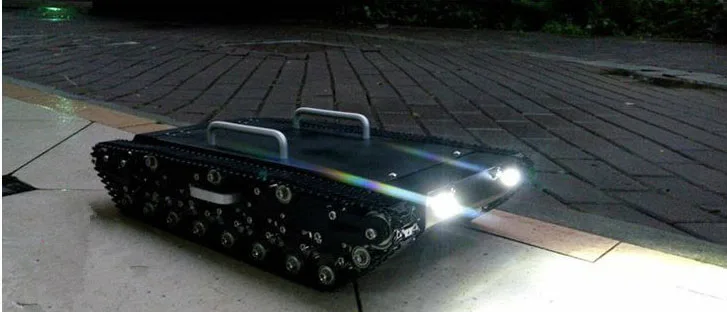

    • light: 12V white LED, 10m depth waterproof
    • Max obstacle: 85mm
    • Max angle of climbling: 35 degree
    • Max cross: 250mm
    • Suspension design: 8 groups of Independent suspensions
    • Protection grade: IP54
    • Distance of Shock bumper: 15mm

    da'z大载重坦克3_副本_副本2

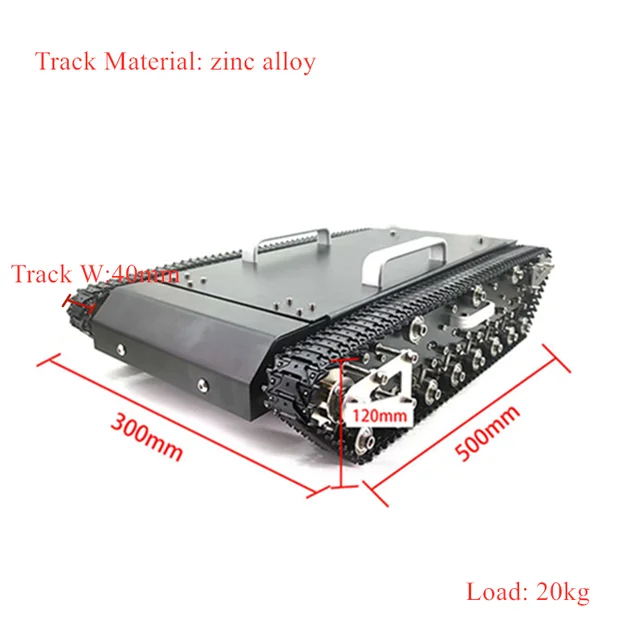

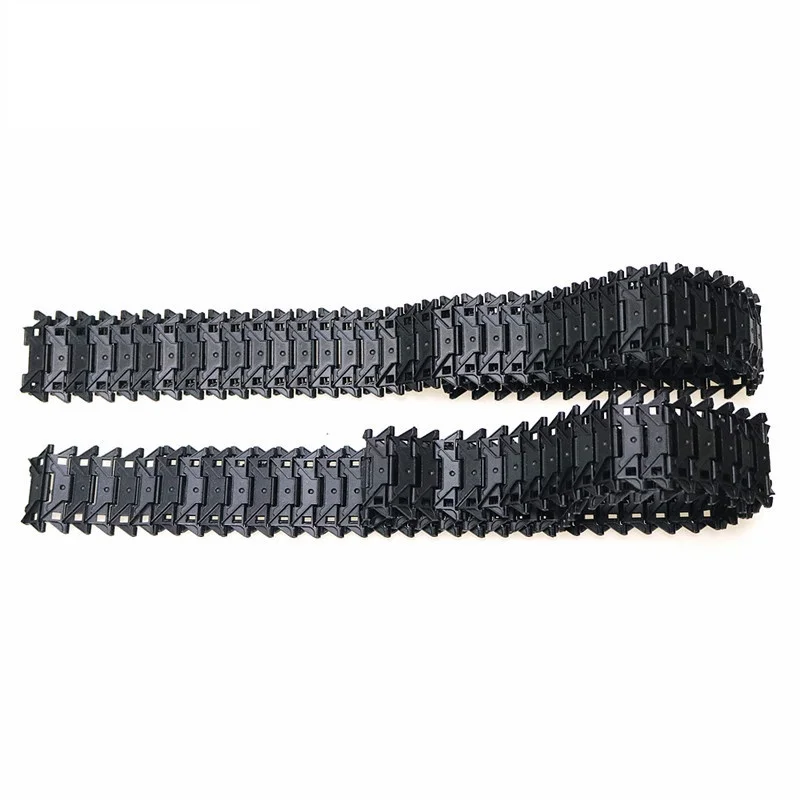

    The Track

    Material: metal track
    Width: 4cm

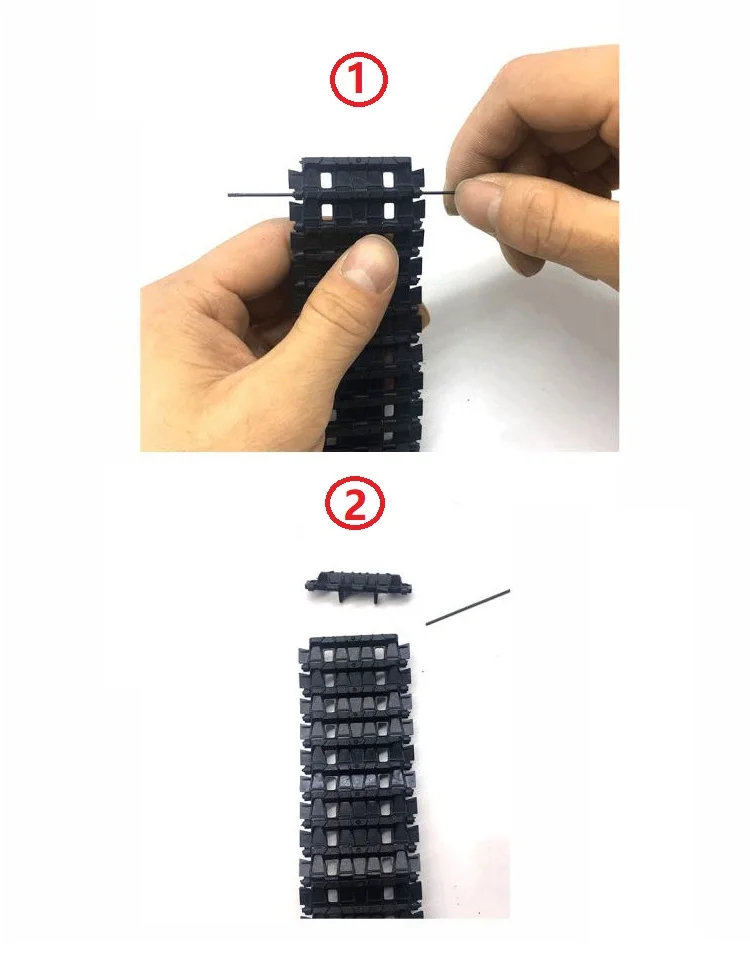

    Note: The track is removable and can be ejected with sharp tools such as a multimeter pen head

    黑色金属履带2

    履带拆卸3

    shipping list nzvj

    Tank Chassis: 1pcs

    Note:

    1. The tank is ready-to-go.

    2. No battery, no control kit

    product images nzvj

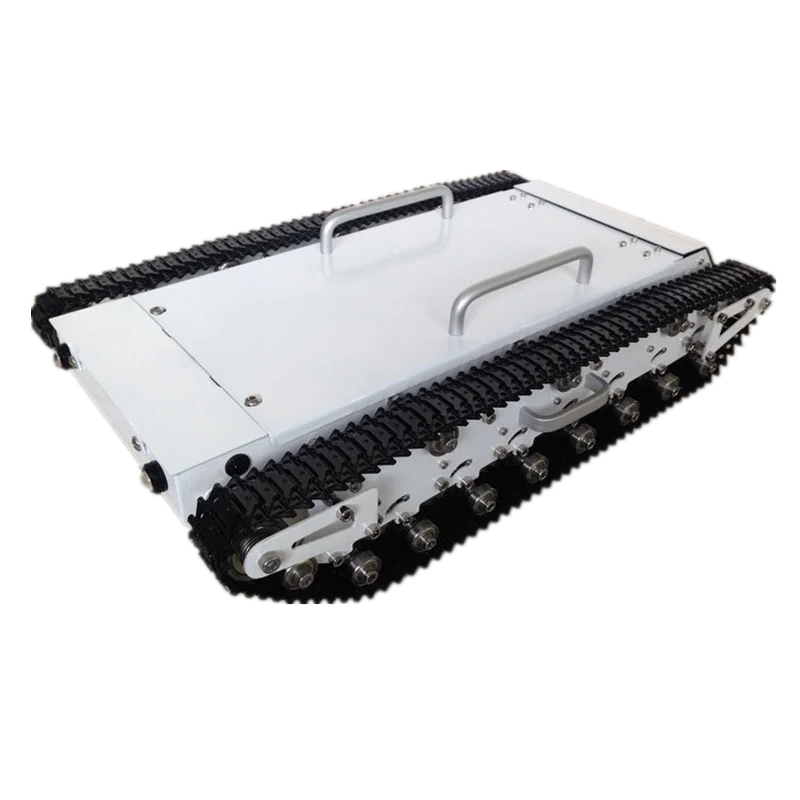

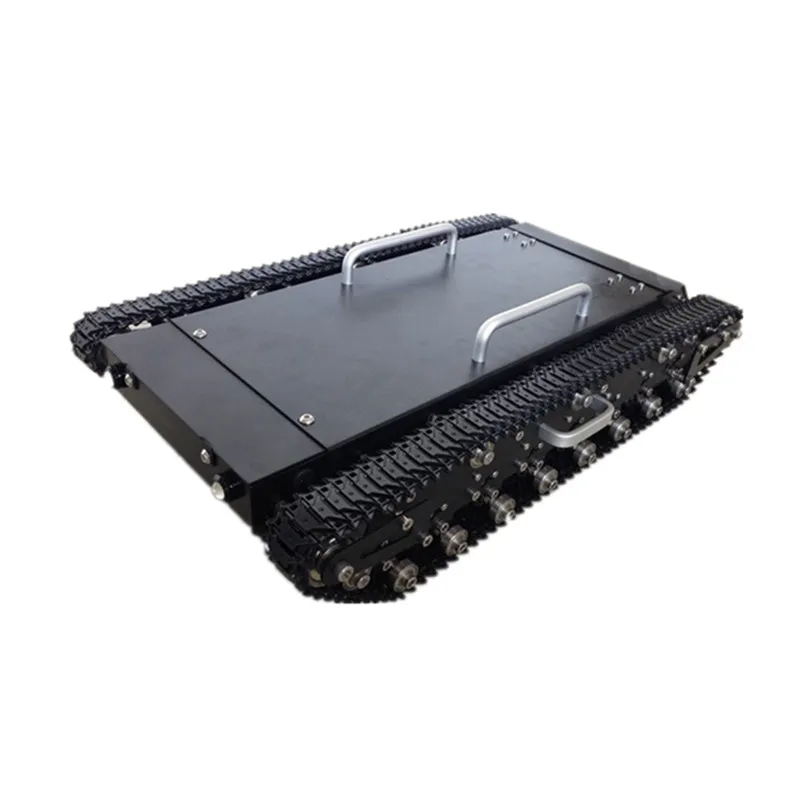

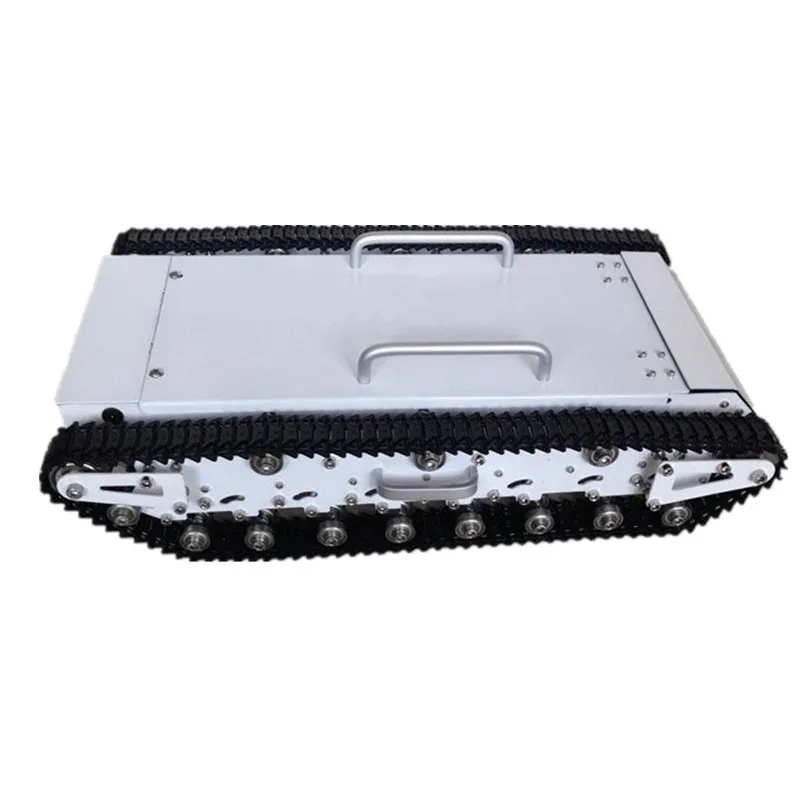

    Details

    WT-500 02_副本wt-500wt-5000



    WT-500大载重坦克6_副本WT-500大载重坦克9_副本WT-500大载重坦克8

    WT-500 08WT-500大载重坦克7_副本

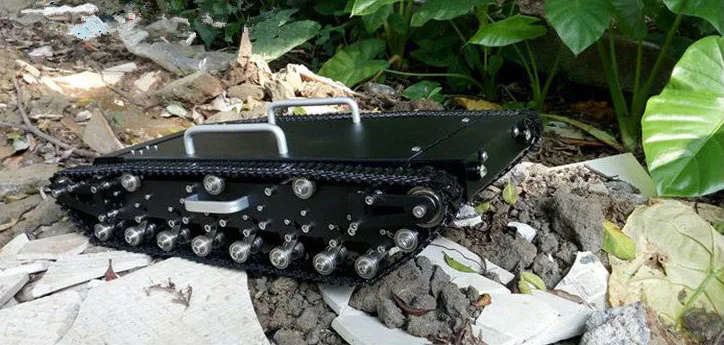

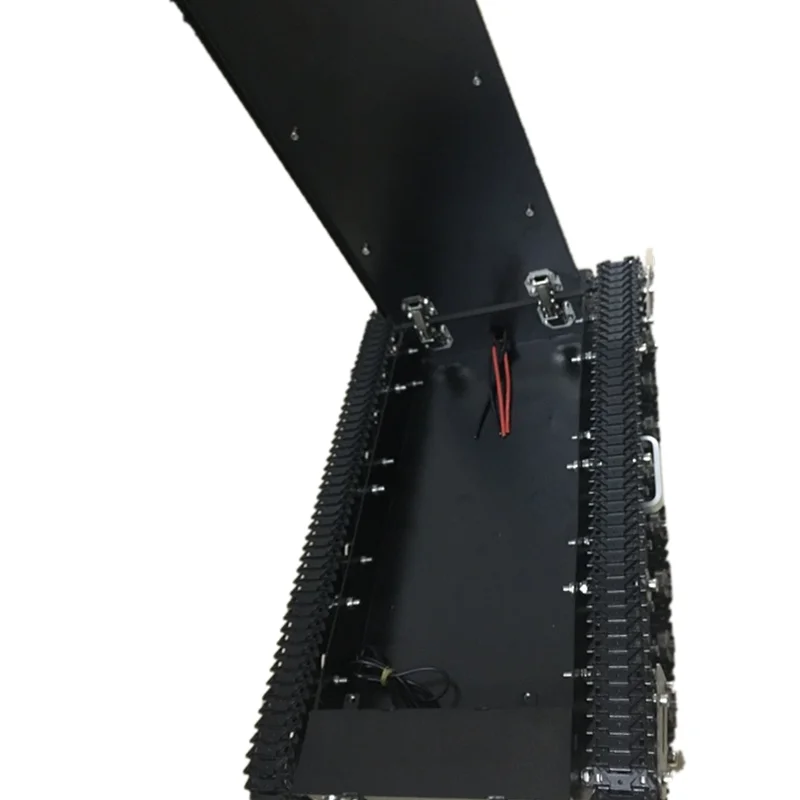

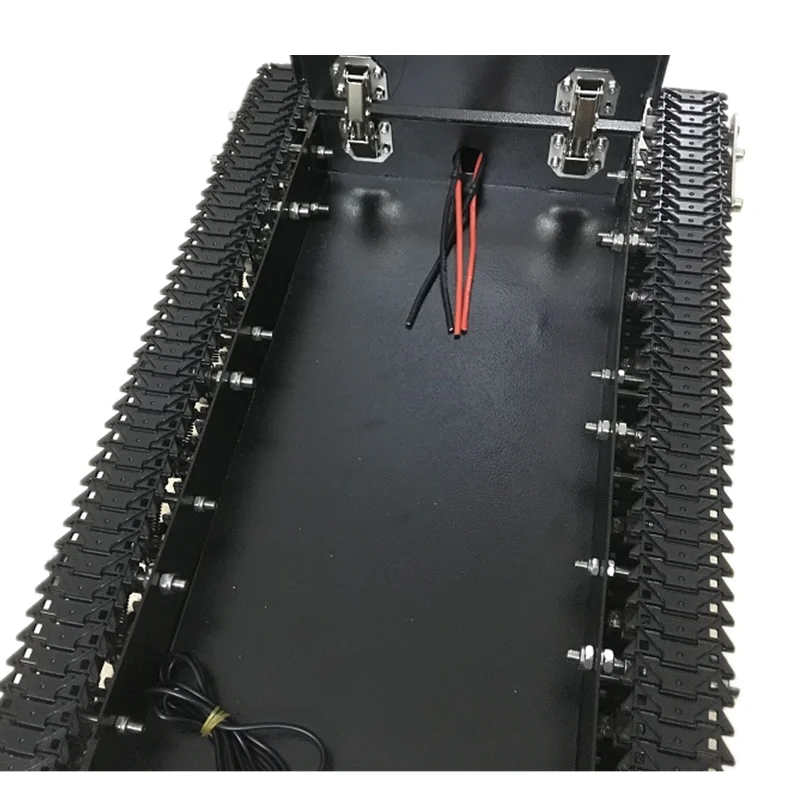

    No processing real shot


    IMG_0347IMG_0352IMG_0353

    WT-500大载重坦克7WT-500大载重坦克5WT-500大载重坦克4WT-500大载重坦克3

    WT-500大载重坦克9WT-500大载重坦克6WT-500大载重坦克2



    related product nzvj

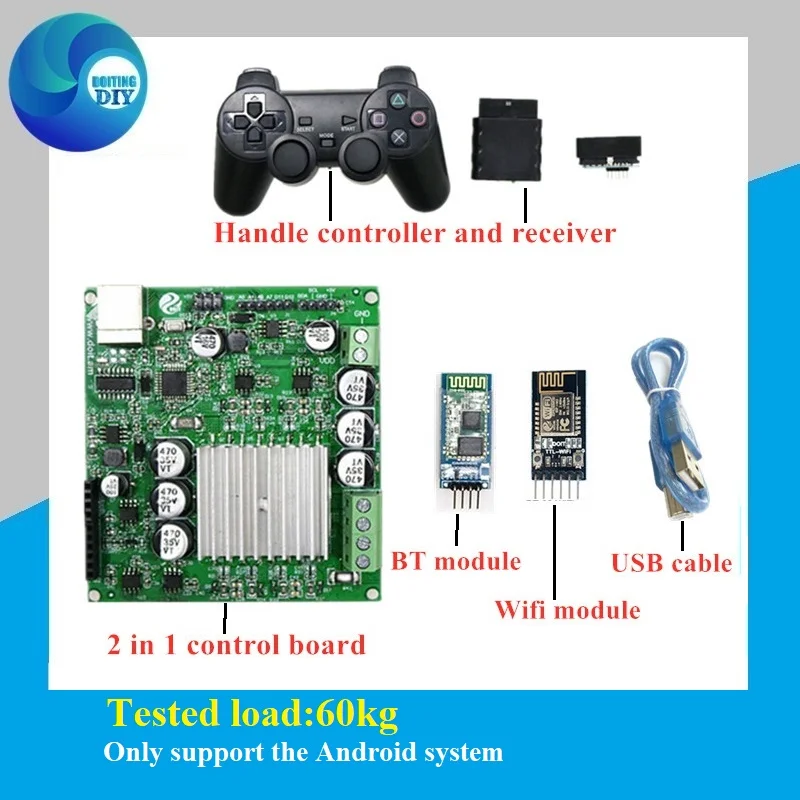

    Big load control kit (click for more information)

    大功率套件45
