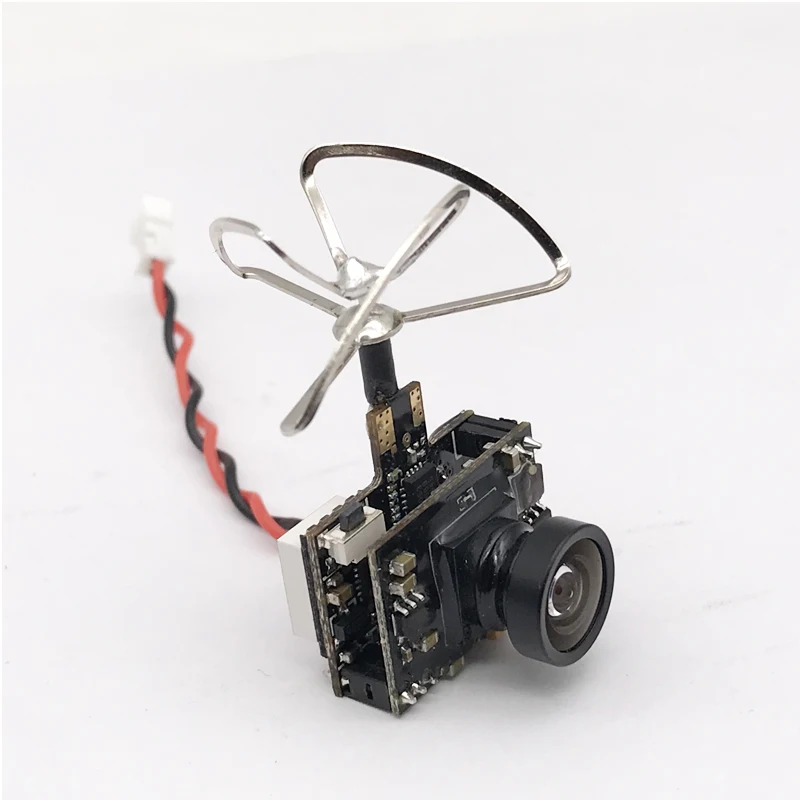

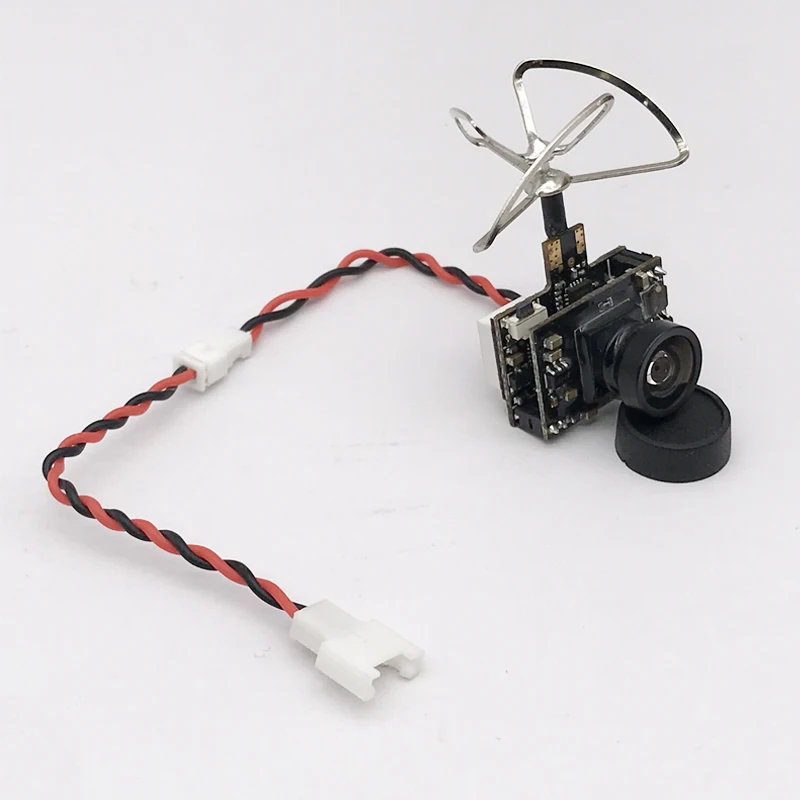

Super Mini AIO 5.8G 40CH 0/25MW/50MW/200MW VTX 600TVL Switchable 1/3 Cmos Camera For RC FPV Multicopter Drone Car part

$106.27 $111.86

6 in stock

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description

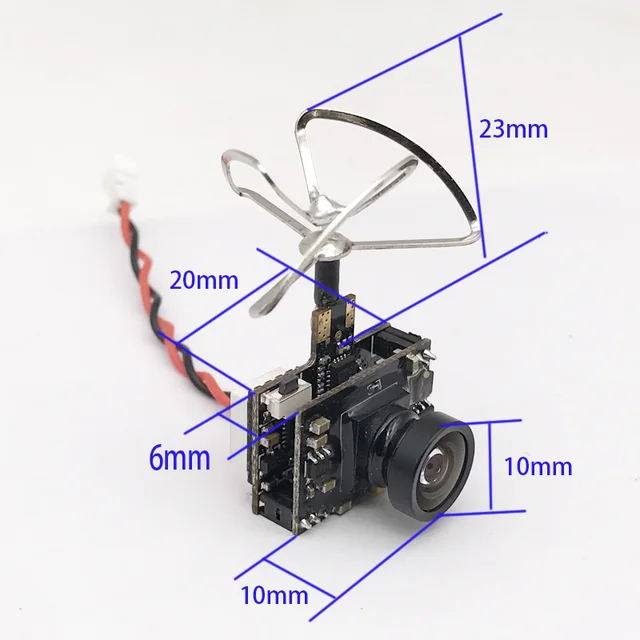

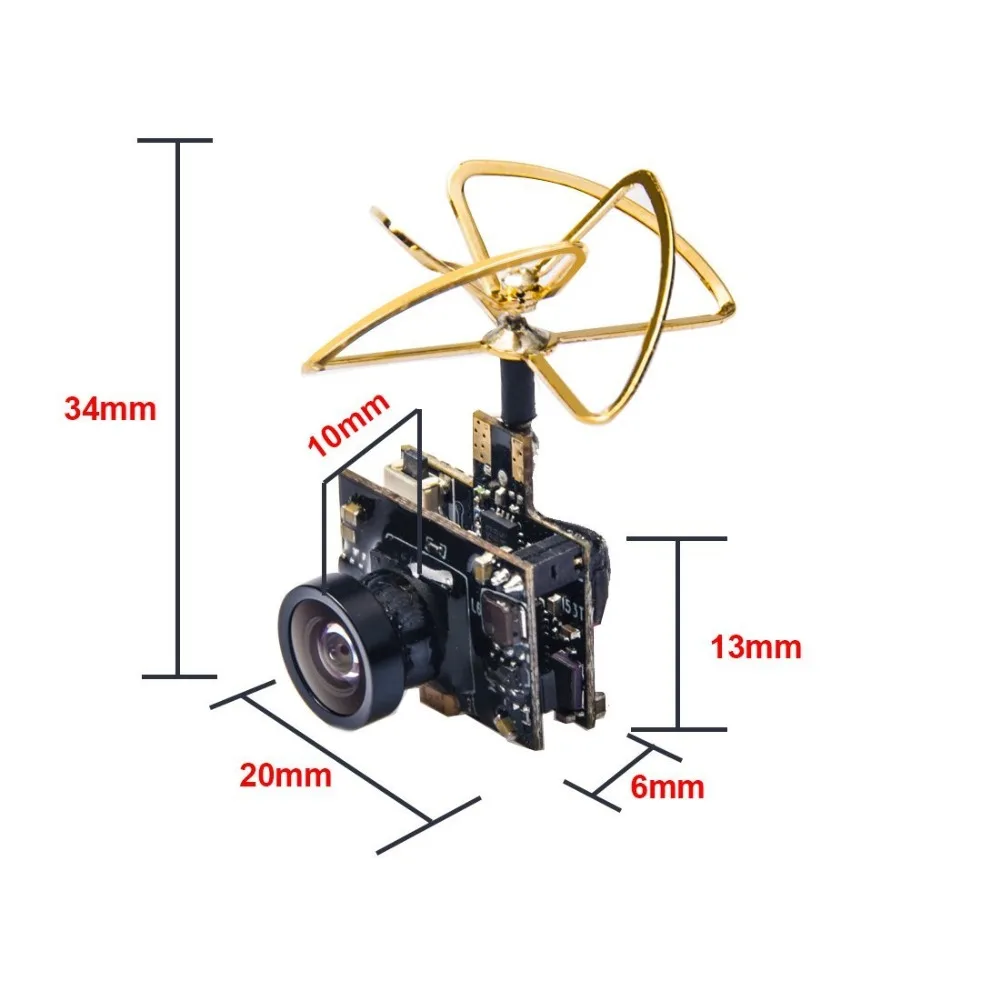

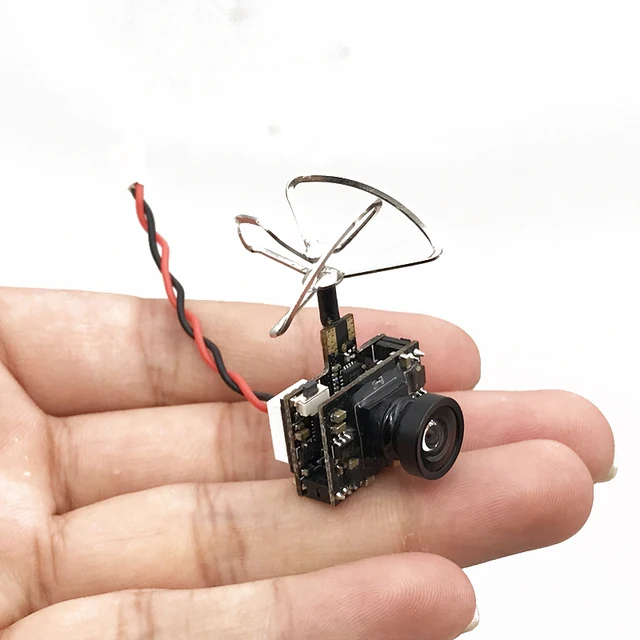

    Super light weight:4.7g, Small size: 20*13mm(L*W)

    3-leaf antenna for better signal transmission, easy to install. Installs in seconds

    All in one vtx + camera + antenna, plug and play, ready to fly.

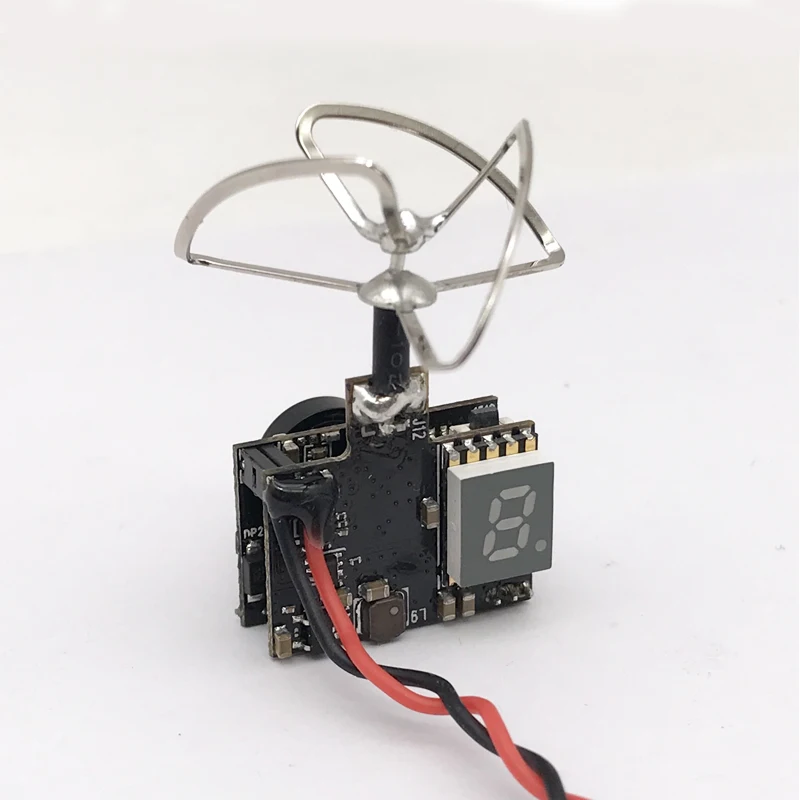

    40 channel with raceband, good quality image with zero latency, Button control instead of switches to change channels

    Integrated booster circuit prevents motor interference, Signal Range Suitable for Ultra Micro RC Aircraft.



    Feature:

    Compatible with 5.8GHz googles and monitor.

    This AIO camera can be installed in minutes and ready to fly.

    Its signal range is ideal for park flyers or racing quads. Integrated booster circuit prevents motor and servo interference.

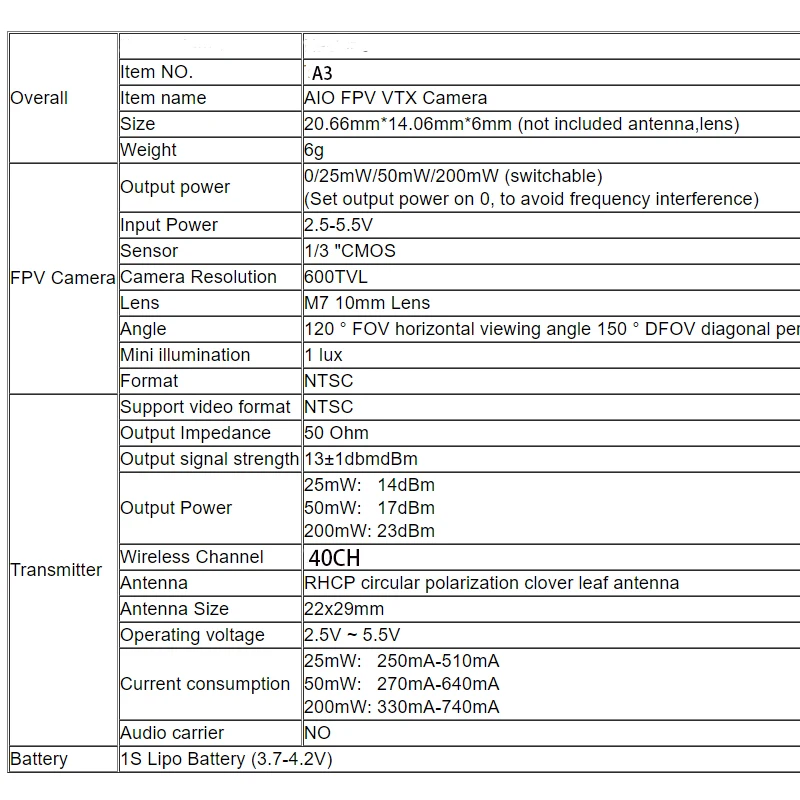

    Specification:

    Output power: 0/25mW/50mw/200mw switchable (Output Power: 0/25mW/50mW/200mW (switchable) (Set output power on 0, to avoid frequency interference)


    Input voltage: 3.2–5.5V  Sensor: 1/3 “CMOS

    Output Power: 25mW: 14dBm /50mW: 17dBm /200mW: 23dBm

    Camera resolution: 600TVL

    Video system:NTSC

    Mini illumination: 1 lux


    Angle: 120 ° FOV horizontal viewing angle 150 ° DFOV diagonal perspective

    Antenna dimensions: 22mm X 29mm diameter

    Antenna: 3 lobe right hand circular polarized

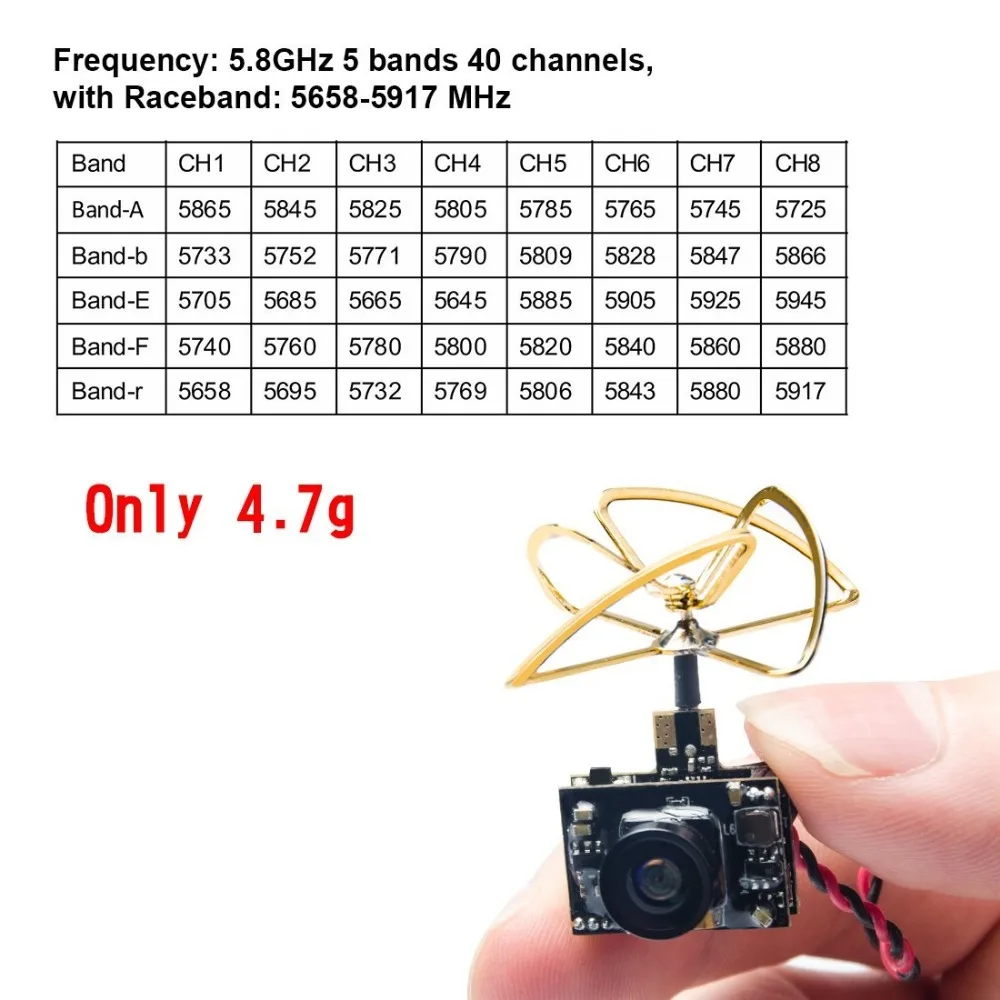

    Frequency: 5.8GHz 5 bands 40 channels


    Wireless Channel: 40CH

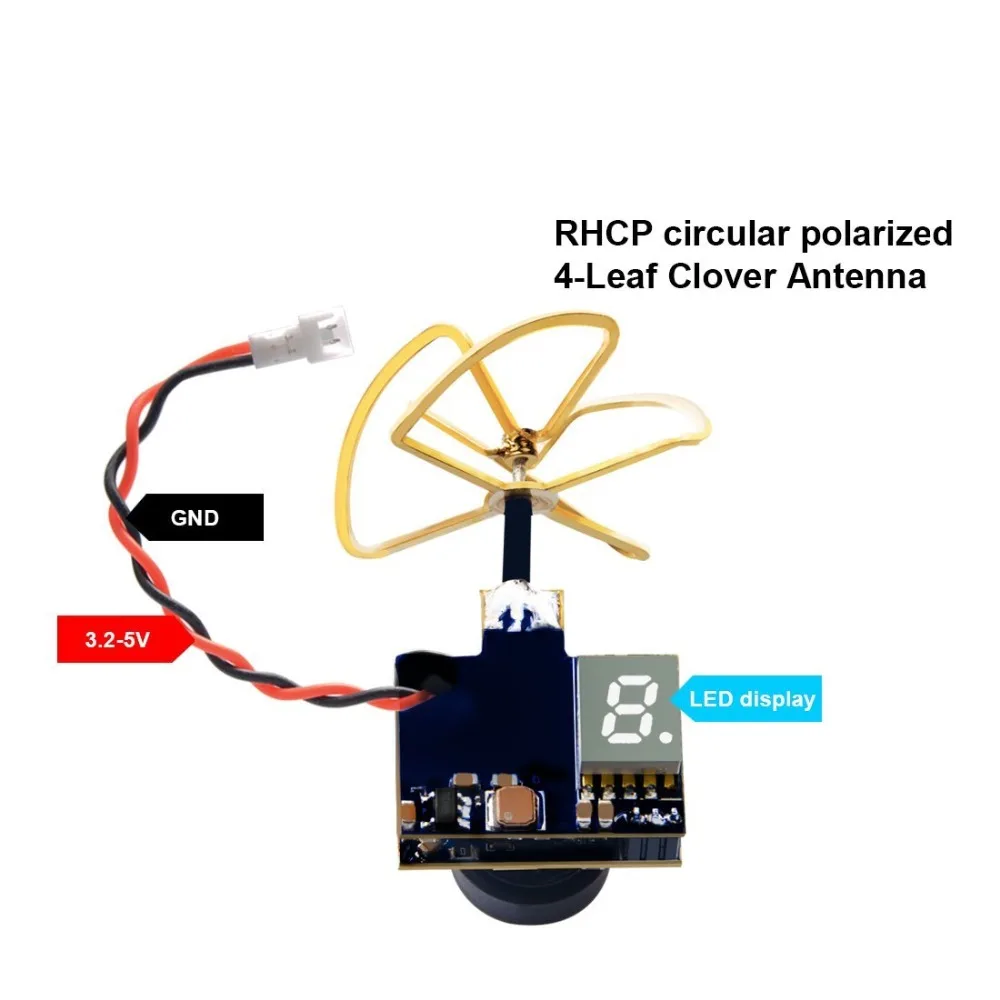

    Antenna: RHCP circular polarization clover leaf antenna

    Antenna Size: 22x29mm

    Current consumption: 25mW: 250mA-510mA /50mW: 270mA-640mA /200mW: 330mA-740mA

    Audio carrier: NO

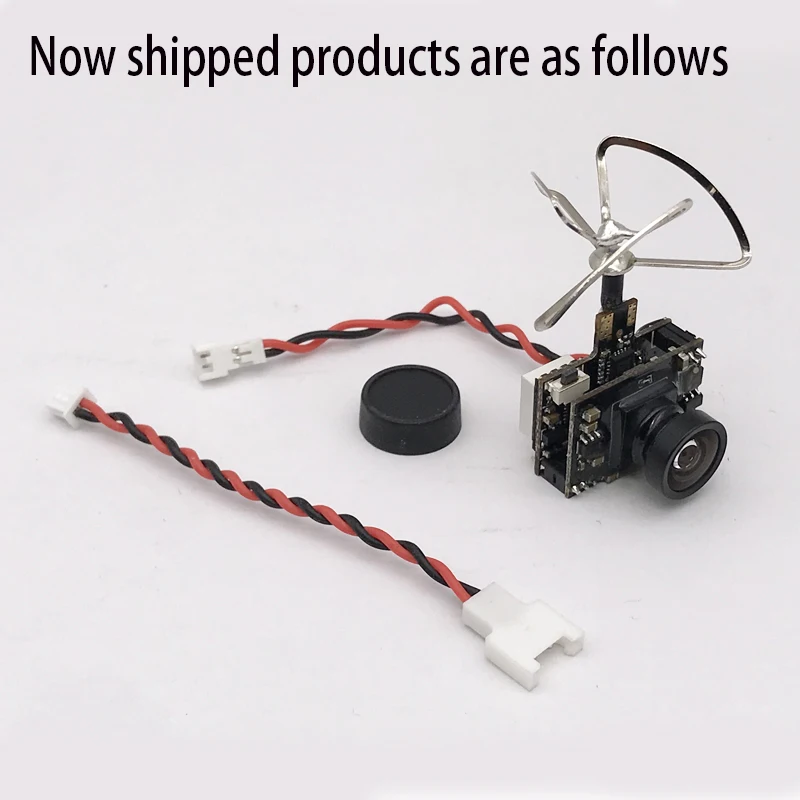

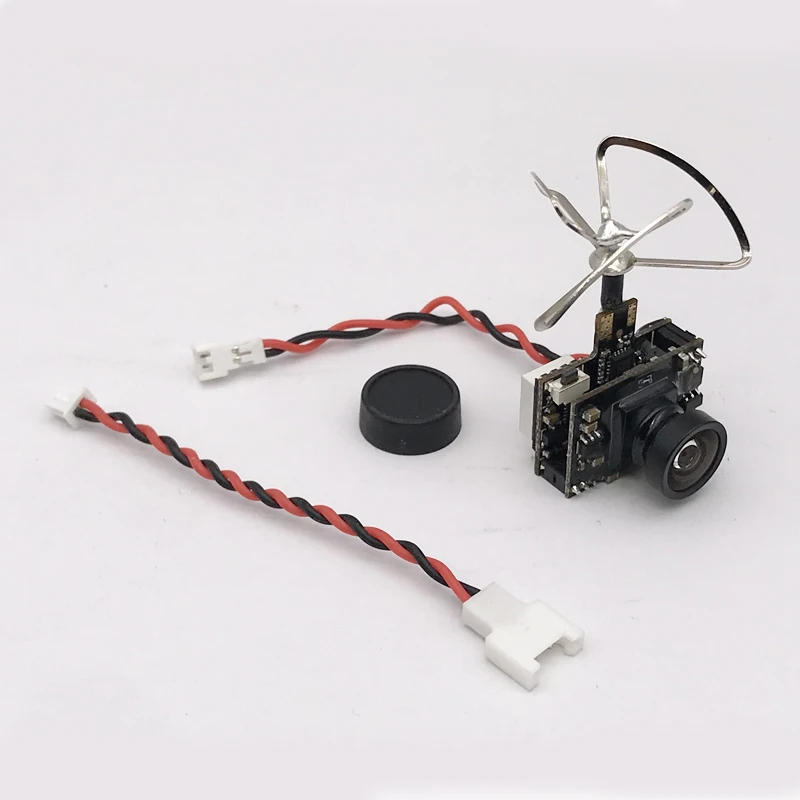

    Package includes:

    1x A3 AIO FPV Camera

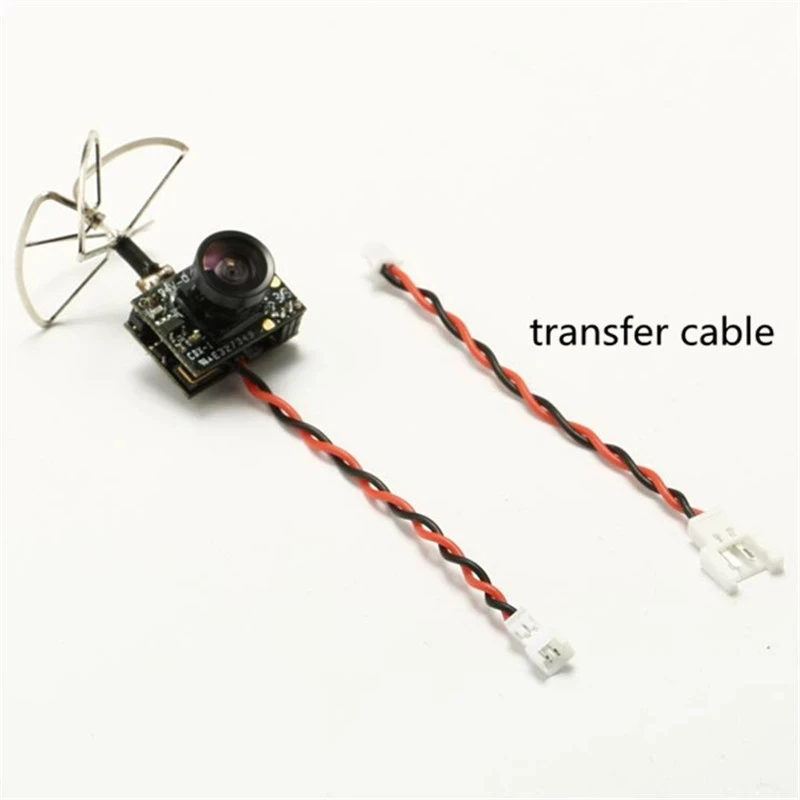

    1x Cable

    1x User Manual
