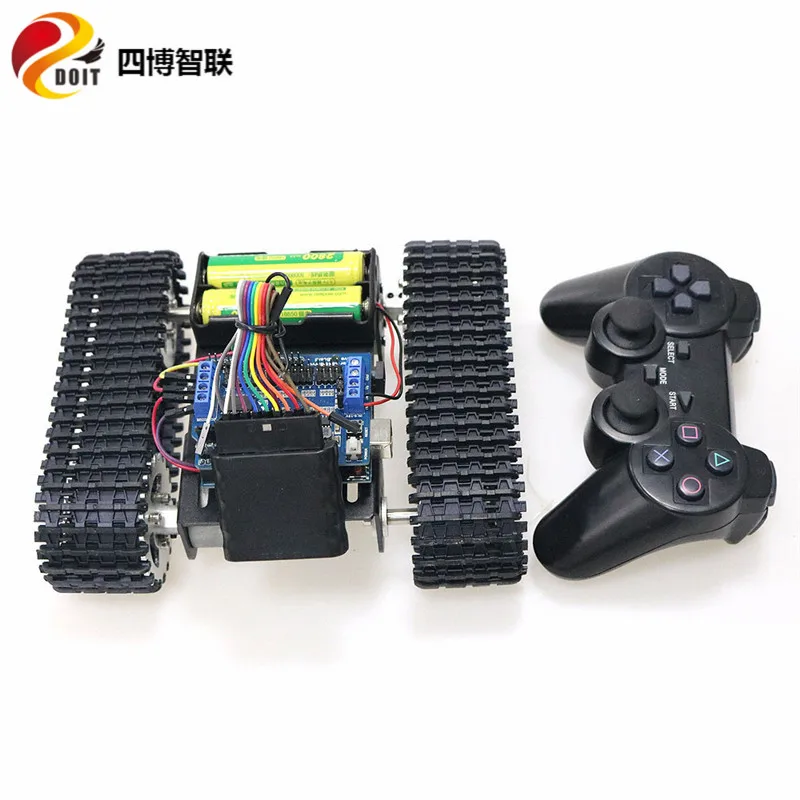

SZDOIT PS2 Gamepad Handle Control T101 Smart RC Robot Tank Chassis Kit Tracked Crawler Vehicle 33GB-520 Motor DIY For Arduino

$220.73 $232.35
  • Color:

in stock

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description

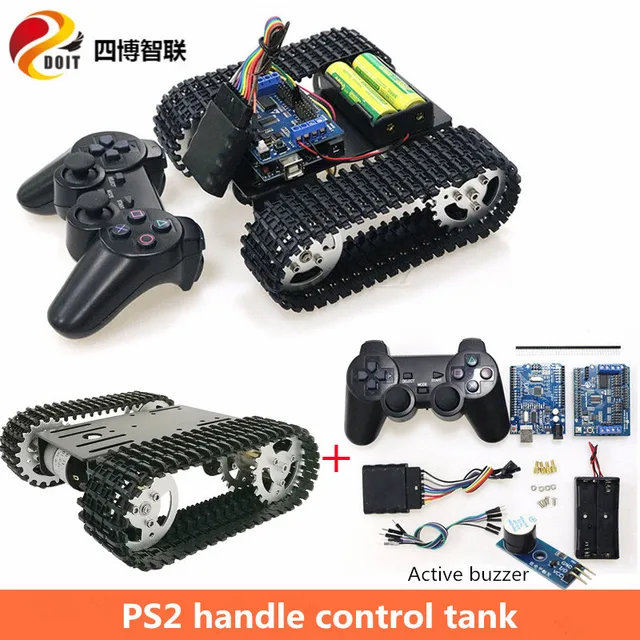

    PS2 handle control kit:

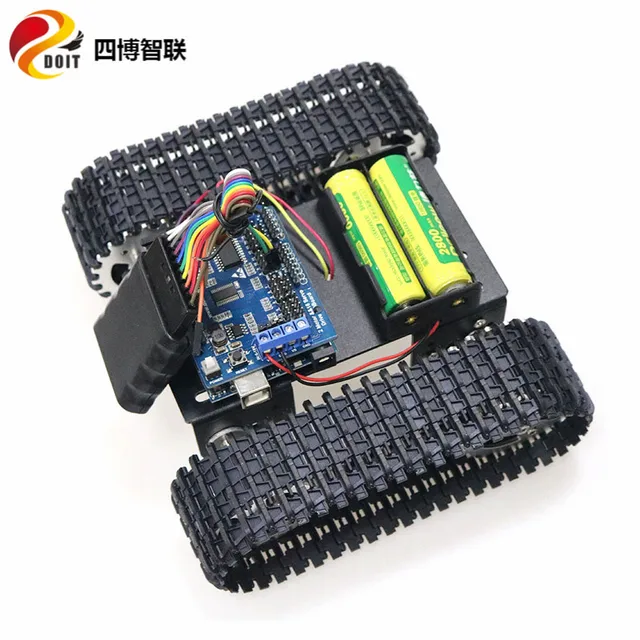

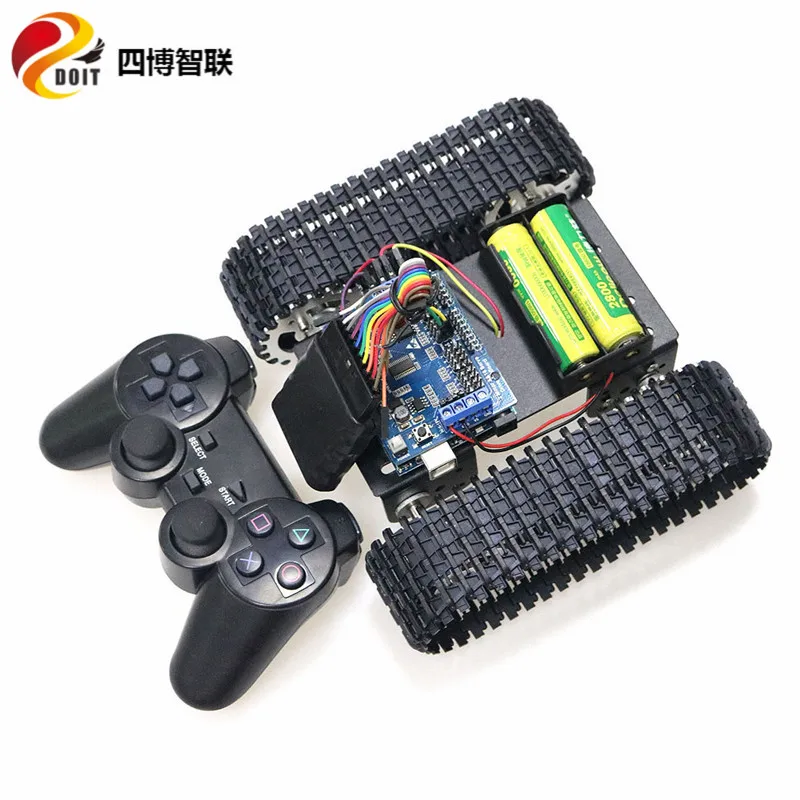

    • The kit is equipped with a UNO control board + driver board as the main control in the car chassis, plus a handle remote control kit. An active buzzer is installed in the center of the car for the handle control alarm, and the movement of the trolley is controlled by the handle remote controller.
    • The Arduino UNO development kit features simultaneous control of 2-way motors and 16-way servos, making it ideal for developing mobile robots such as robotic arms, cars, tank chassis, etc.
    • Provide source code, APP and instruction manual
    • For more documentation, please visit:wiki.doit.am

    手柄套件

    PS2 gamepad (receiver) and Arduino UNO wiring diagram:
    W1

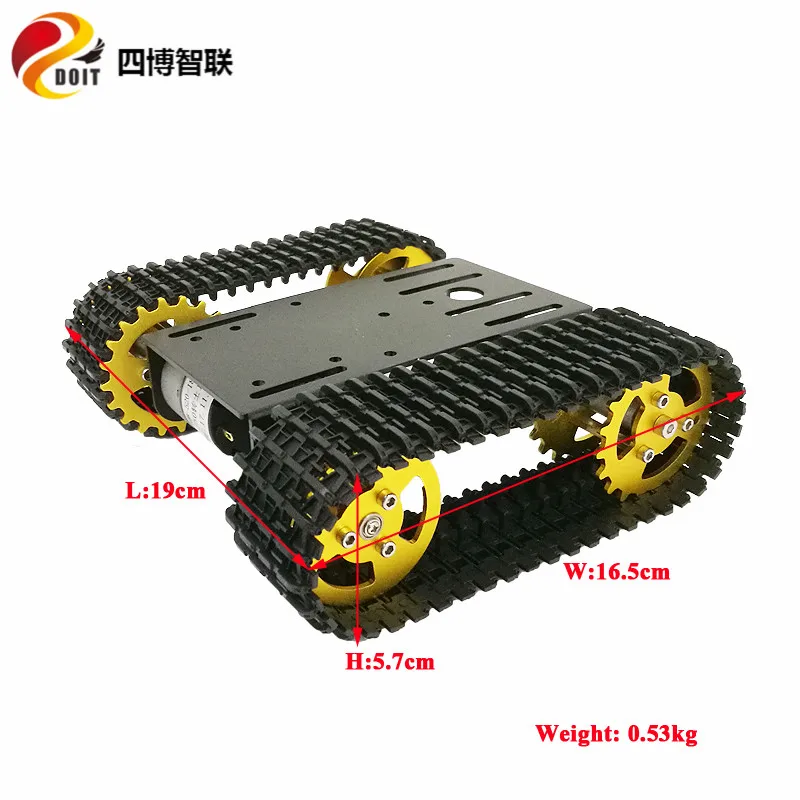

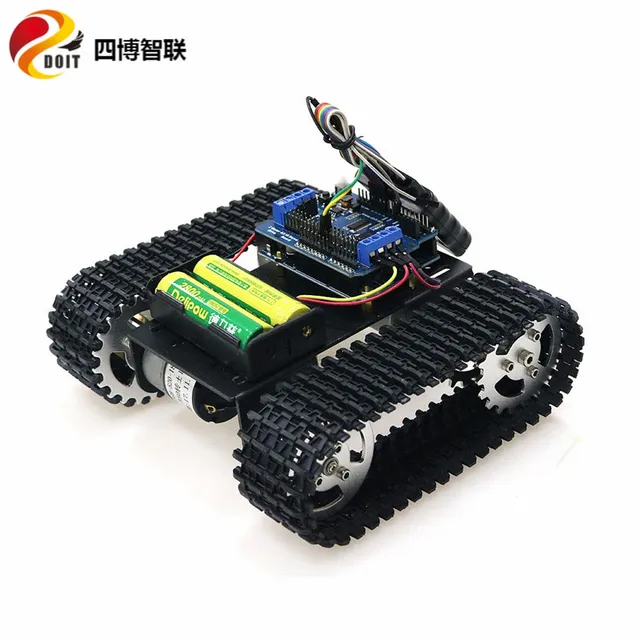

    T101 tank chassis parameters:

    • Model: T101 smart tank chassis
    • Size: 19*16.5*5.7cm (length * width * height)
    • Net weight: 0.53kg
    • Panel material: 2mm aluminum alloy
    • Surface treatment: sandblasting oxidation
    • Track: engineering plastic (freely removable)
    • Wheel: aluminum alloy

    尺寸

    12V 350rpm 33 motor:

    • Model: 33GB520
    • Voltage range: 6V-12V
    • No-load speed: 170-350rpm
    • Rated voltage: DC12V
    • No-load current: 100mA
    • Weight: 100g

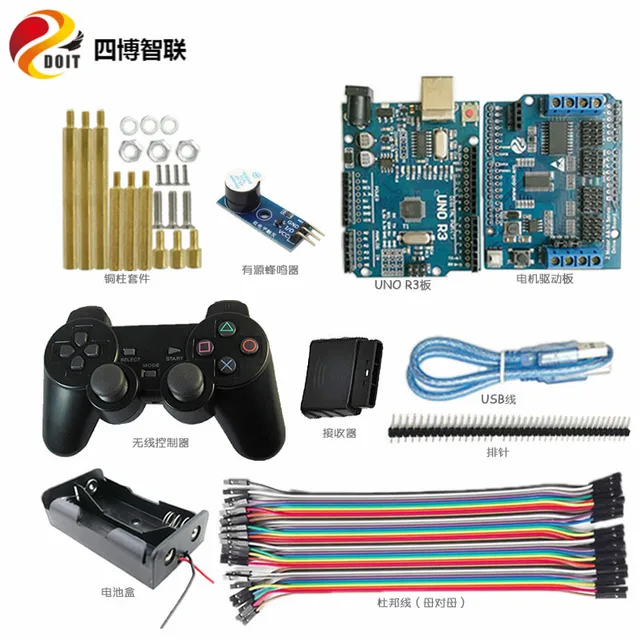

    Shipping list:

    • 1 × T101 tank chassis
    • 2 × 12V350rpm 33 motor
    • 1 × PS2 handle control kit
    • Free: 18650 battery box, hex wrench

    Note:

    • More documents can be downloaded at wiki.doit.am;
    • In order to facilitate transportation, the product is not assembled. But it is very easy to install;
    • Product does not contain battery.
