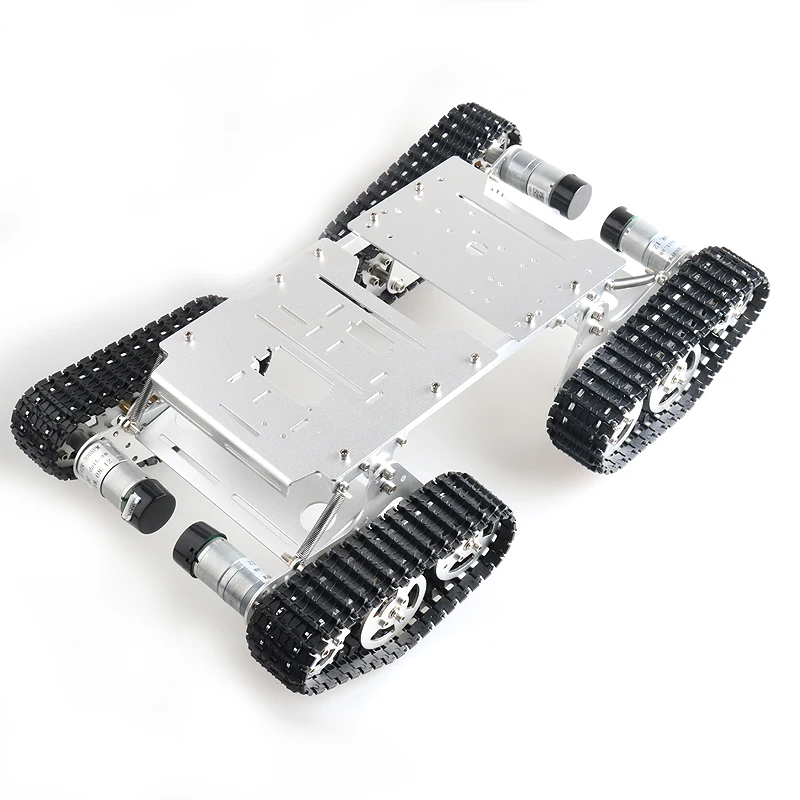

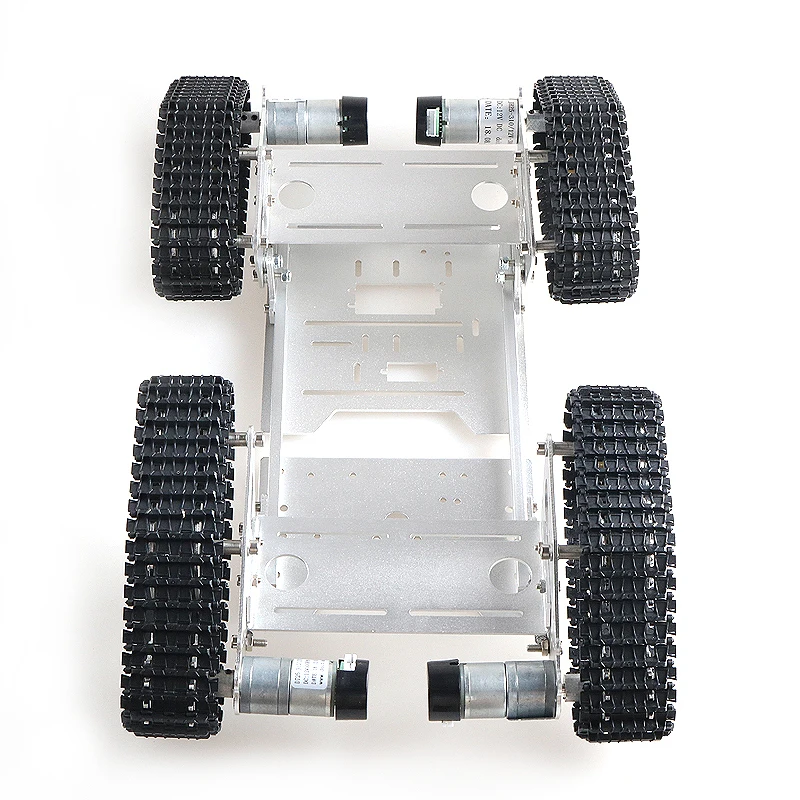

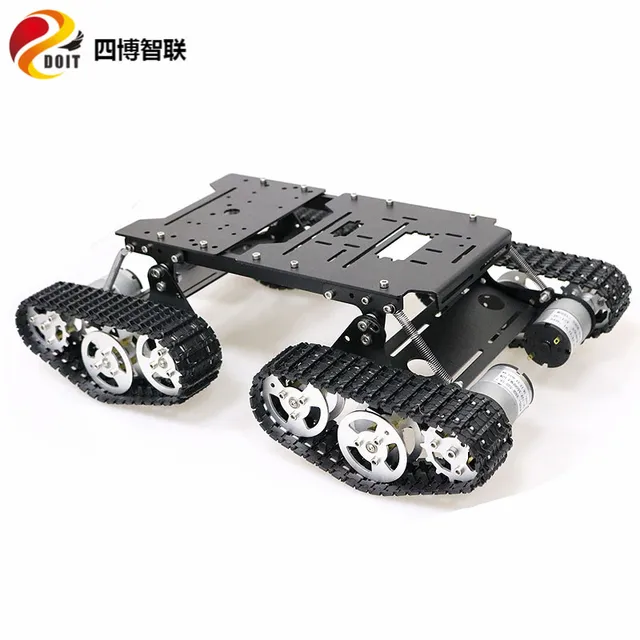

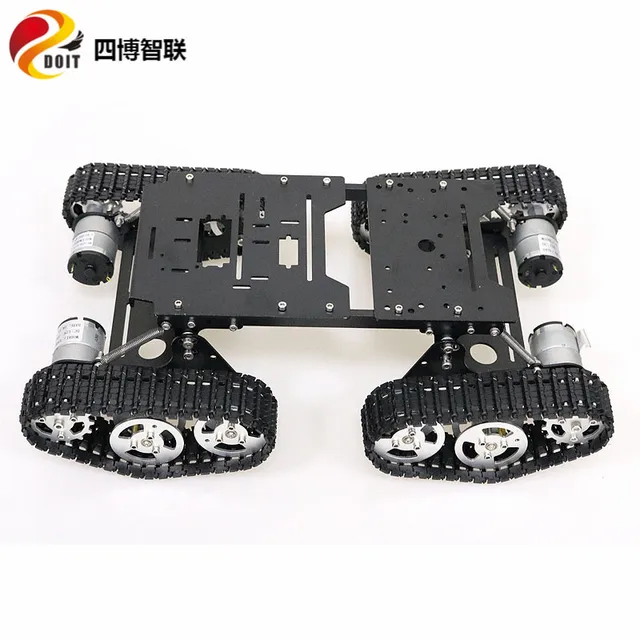

SZDOIT TS400 Large Metal 4WD Robot Tank Chassis Kit Tracked Crawler Shock Absorbing Robotic Education Heavy Load DIY For Arduino

Features:

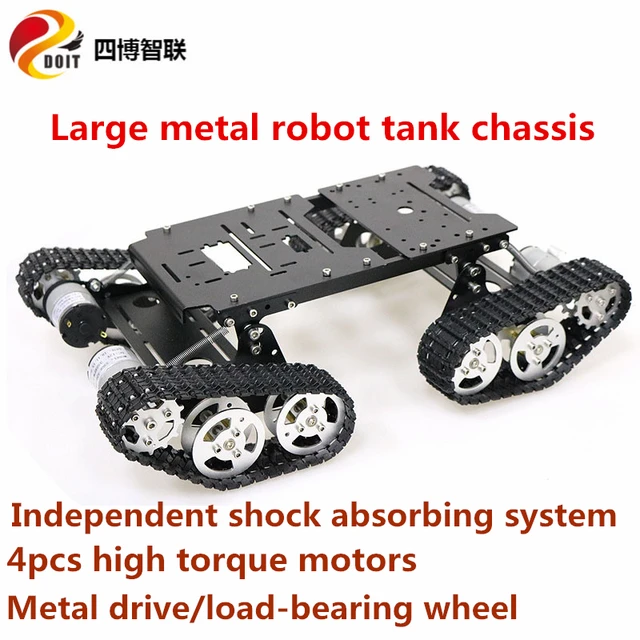

• The TS400 tank chassis is made of all metal and is very strong and beautiful.
• The independent  shock absorbing system makes the chassis run smoothly even on uneven road surfaces;
• Equipped with 4 high-torque motors, the chassis can move forward and backward, turn left and turn right, and turn around;
• The chassis panel provides ample space for mounting robots and control kits, and has a large development space.

Tank chassis parameters:

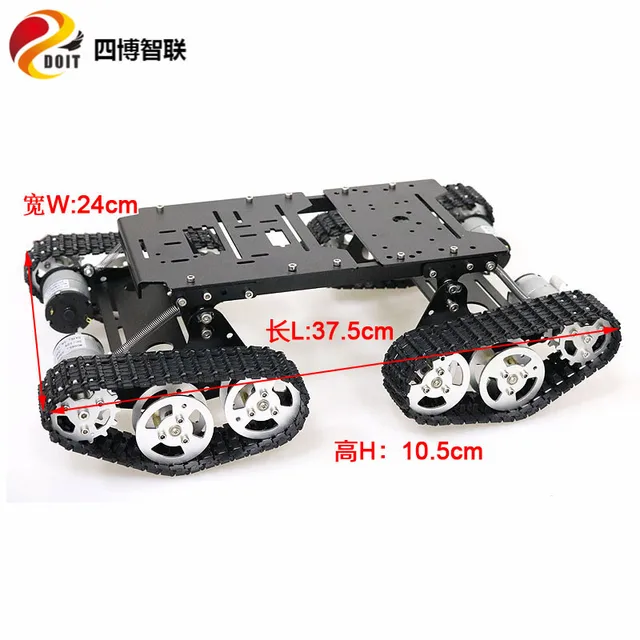

• Size: 37.5*24*10.5cm (length * width * height)
• Net weight: 1.43kg
• Material: aluminum alloy
• Drive wheel: metal
• Bearing wheel: metal
• Track: engineering plastic (4.1cm wide, freely removable)
• Motor: 12V motor

Function:

• Education
• Learn
• Competition
• DIY
• Toy

Motor parameters:

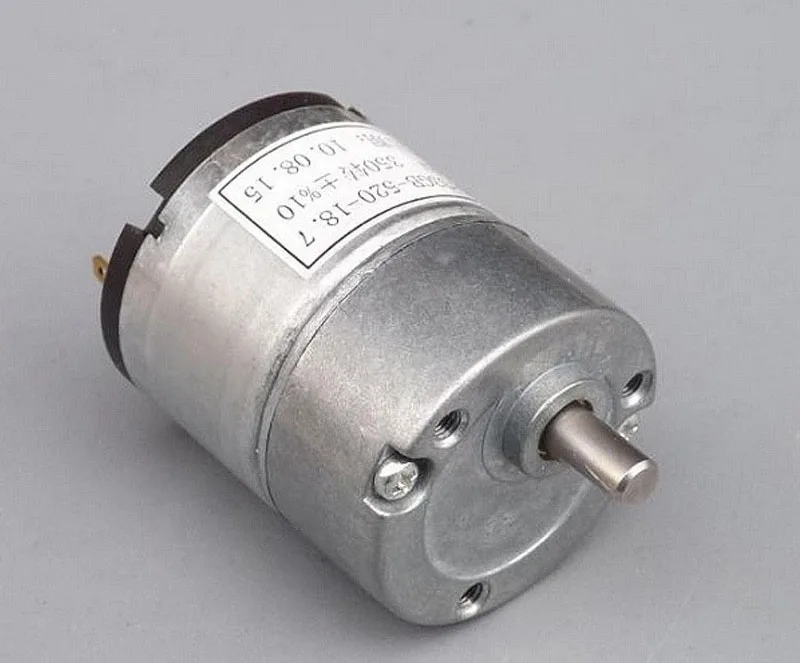

33GB-520 motor:

• Rated voltage: DC12V
• No-load current: 100mA
• Suitable voltage: 6-12V
• No-load speed: 170-350rpm
• Weight: 100g

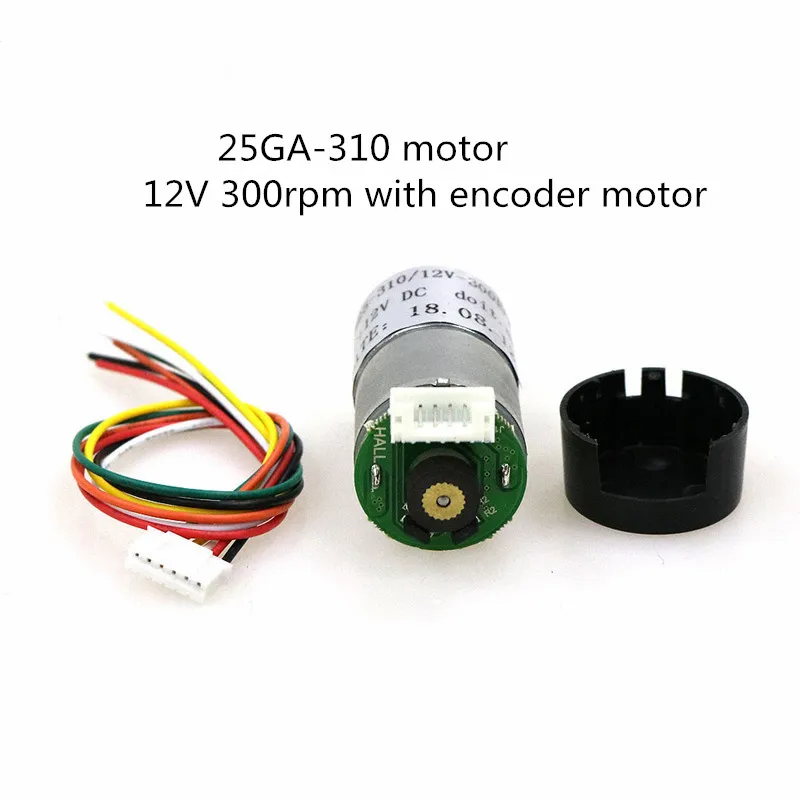

25GA-310 motor (12V 300rpm with encoder motor):

• Model: 25GA-310
• Voltage: 12V
• Speed: 300rpm
• No-load current: 220mA
• Load torque:  0.6kg.cm current 500mA
• Power: 1.6W
• Blocking torque: 2kg.cm current 2A
• Shaft diameter: 4mm
• Number of pulses: 300
• Single phase: 150

37mm motor (XD-37GB520,without encoder):

• Model: XD-37GB520
• Size: 37*58mm
• Voltage: DC12/24V
• Speed: 5-800rpm
• Current: 0.5A
• Power: 10W
• Motor size: 37*58mm
• Outer shaft size: 6*15mm
• Small size, large torque, slow speed
• Speed control, positive and negative

Shipping list:

• 1 × TS400 tank chassis
• 4 × DC motor
• 2 × Shock-absorbing track
• 4 ×  Metal drive wheel
• 8 × Metal bearing wheel
• Free: 18650 battery box, hex wrench

Note:

• In order to facilitate transportation, the product is not assembled;
• More documents can be downloaded at gitnova.com.
• If you need installation instructions, please leave your email after placing the order, I will send it as soon as possible.
