Camera Parameters

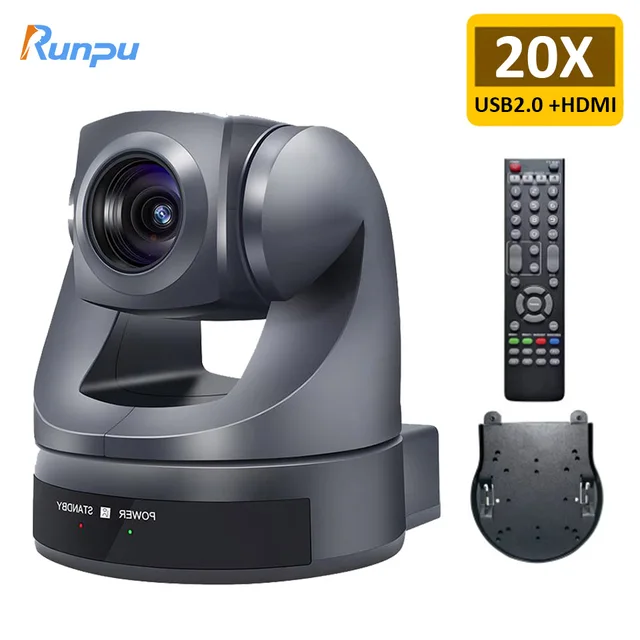

Model: USB20X
Sensor: 1/2.9 inch high quality CMOS sensor
Effective Pixels: 2.07 megapixel, 16：9
Video Format: 1920×1080P@30 fps/25fps；1280×720P@30fps/25fps；1024×576P@30fps/25fps；960×540P@30fps/25fps；800×448P@30fps/25fps；640×360P@30fps/25fps；320×176P@30fps/25fps,etc
View Angle: 8.8°～ 70°
Focus Length: f=4.34mm～41.66mm
AV: F1.85 – F2.43
Optical Zoom: 10X
Minimum Illumination: 0.5 lux （F1.8, AGC ON）
DNR: 2D & 3D
White Balance: Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus: Auto / Manual/ One Push Focus
Exposure: Auto / Manual
BLC: On/Off
Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR: >55dB
Input/output Interface
Video Output USB2.0 HDMI
Video Compression Format MJPG, H.264, H.265
Control Interface RS232 (IN/OUT), RS485
Control Protocol VISCA/Pelco-D/Pelco-P
Power Interface HEC3800 outlet (DC12V)
USB Feature
Operation Systems: Windows 7, Windows8, Windows10, Mac osx, Linux, etc
Video Compression Format: MJPG, H.264, H.265
USB Communication Protocol: UVC
PTZ Parameters

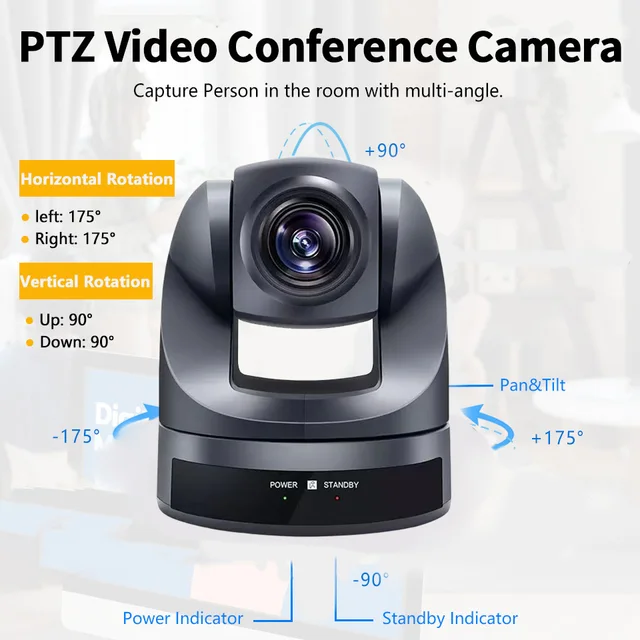

Pan Rotation: -170°～+170°
Tilt Rotation: -30°～+90°
Pan Control Speed: 0.1 ～60°/sec
Tilt Control Speed: 0.1～30°/sec
Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
Preset Number: 255 presets (10 presets via remote control)
Multiple Mounting Options
Included mounting hardware screw hole and standard tripod thread at the bottom of USB10X , get you the best video coverage.
