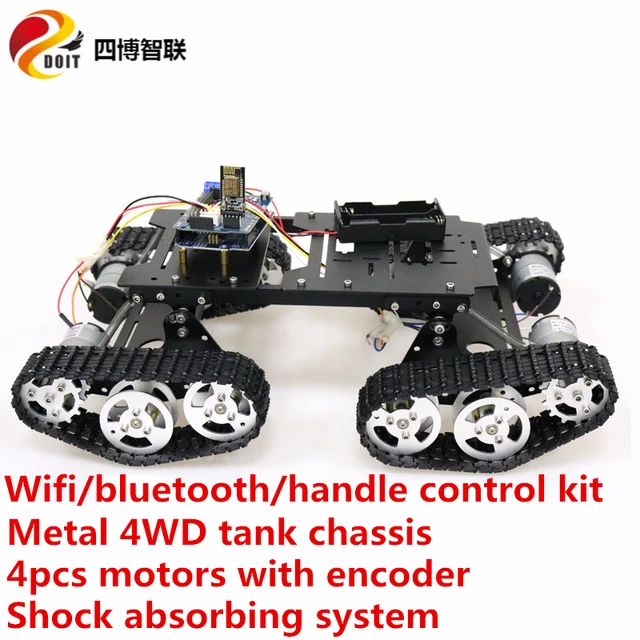

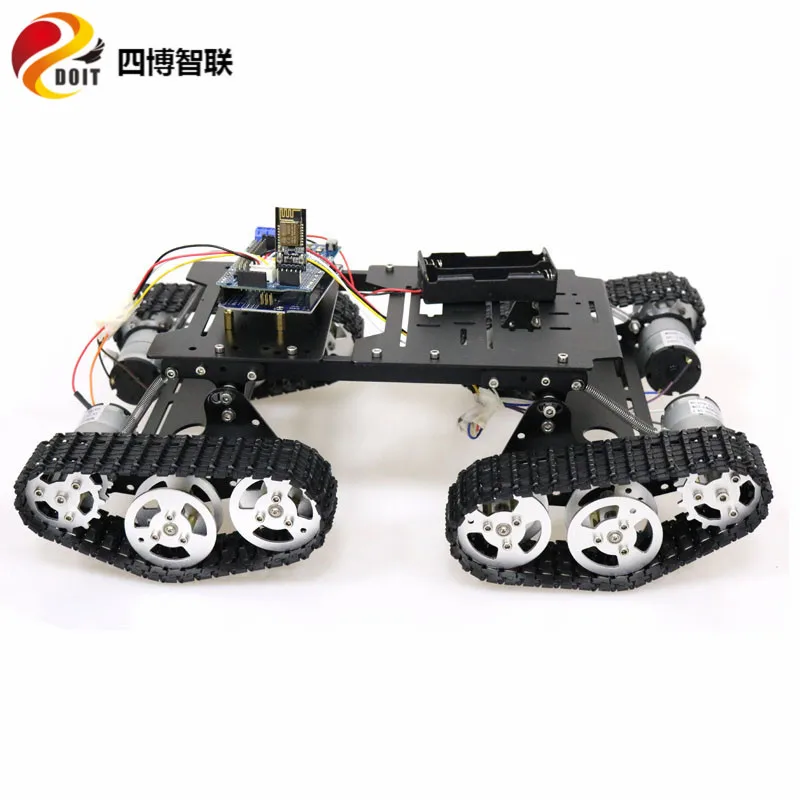

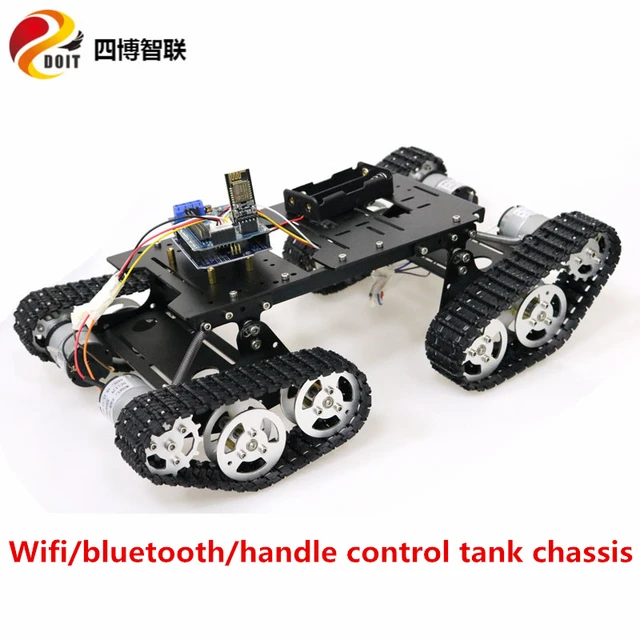

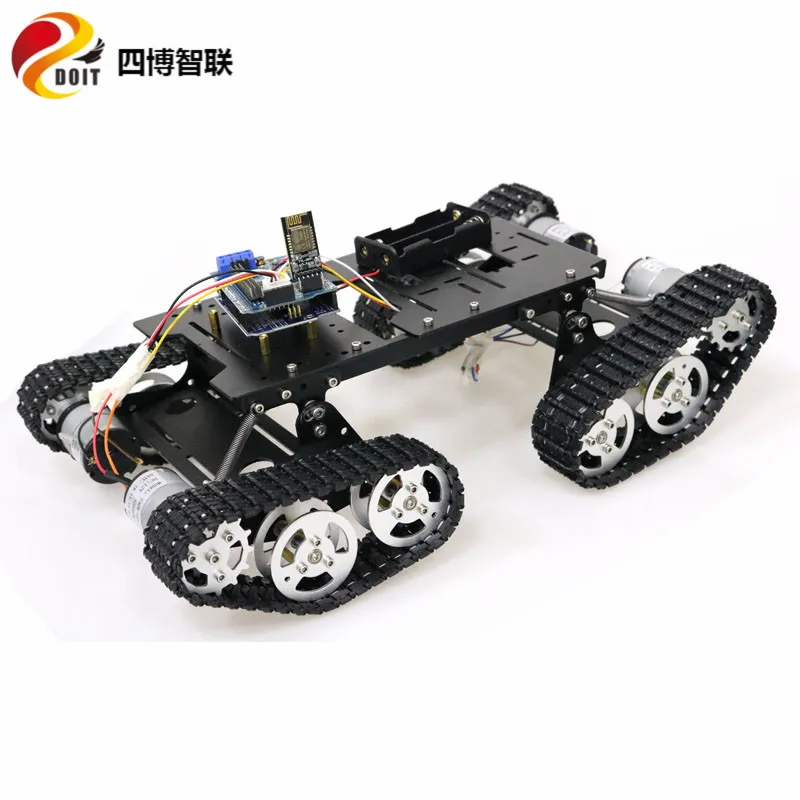

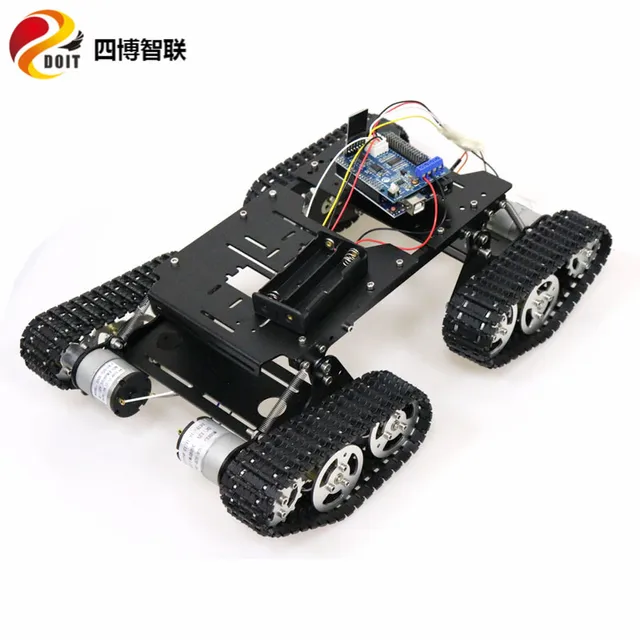

WIFI/Bluetooth/Handle Control TS400 4WD Smart Crawler RC Robot Tank Chassis Kit Shock Absorption 33GB-520 Motor DIY for Arduino

Features :

• The tank chassis is made of aluminum alloy and is very nutty and durable;
• The track is shock-absorbing, making the car run smoothly on off-road and on the road;
• Equipped with 8 load-bearing wheels and 4 drive wheels, the chassis can be easily driven under heavy load conditions;
• The chassis is equipped with 4 high-power motors, which can move forward, backward, turn, turn left, turn right, etc;

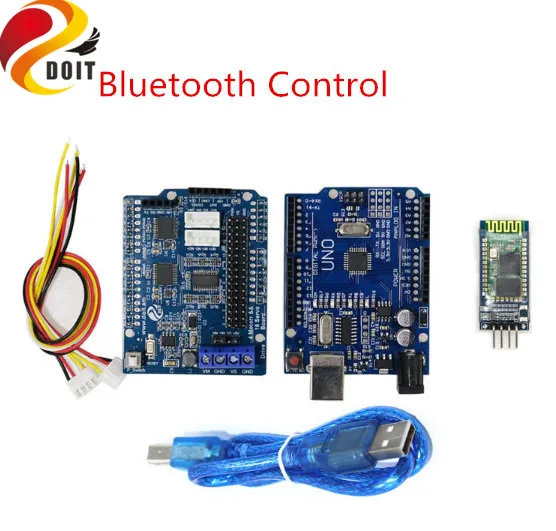

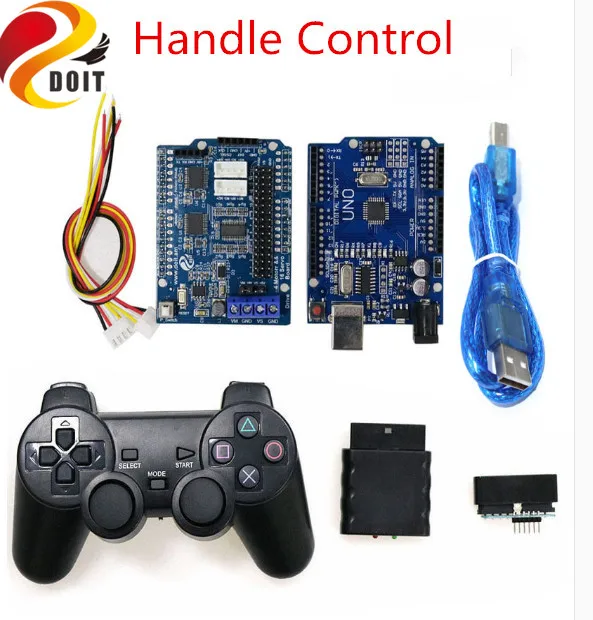

• The tank is equipped with a wifi/Bluetooth/handle control kit that makes it easy to operate the tank;
• Compatible with Android development board, support WIFI DT-06, support Bluetooth HC-05.

Chassis Parameters :

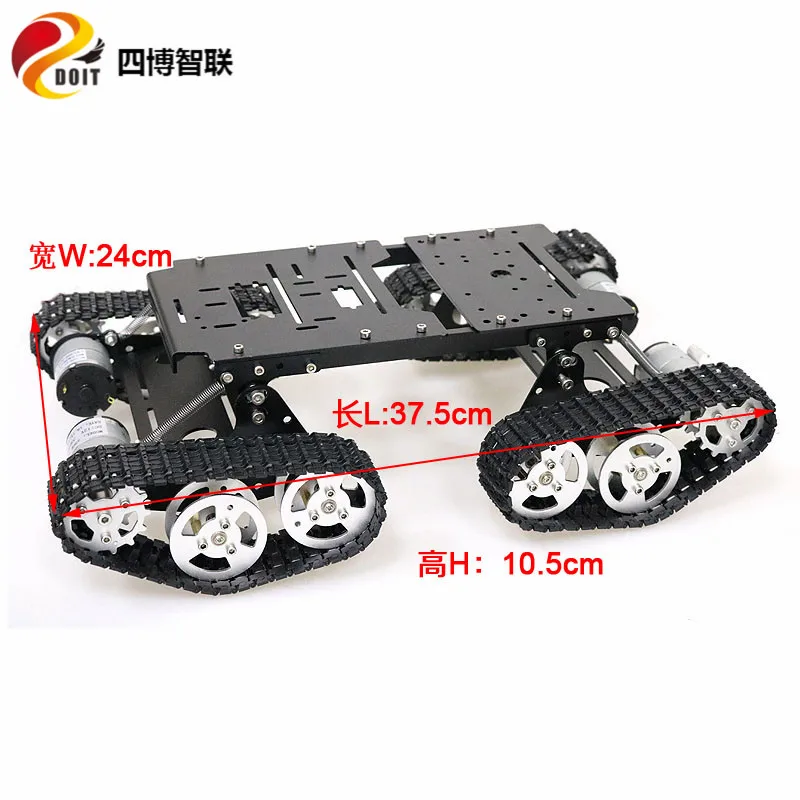

• Size: 37.5*24*10.5cm (length * width * height)
• Net weight: 1.43kg
• Material: aluminum alloy
• Track: engineering plastic (4.1cm wide, freely removable)
• Drive wheel: metal
• Bearing wheel: metal

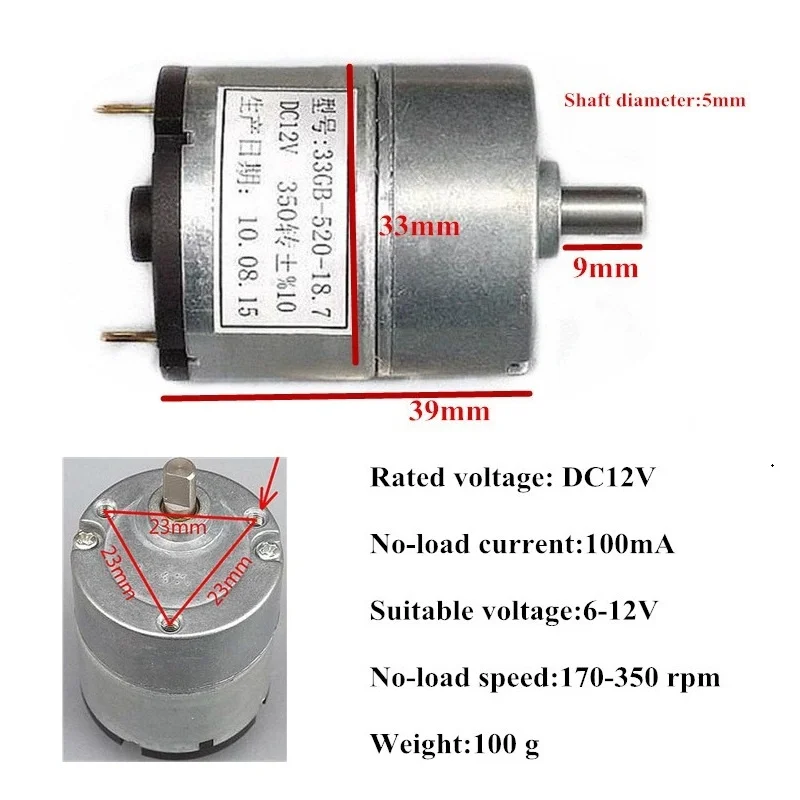

33GB-520 Motor Parameters :

• Name: 33GB-520
• Voltage range: 6V-12V
• No-load speed: 170-350rpm
• Rated voltage: DC12V
• No-load current: 100mA
• Weight: 100g

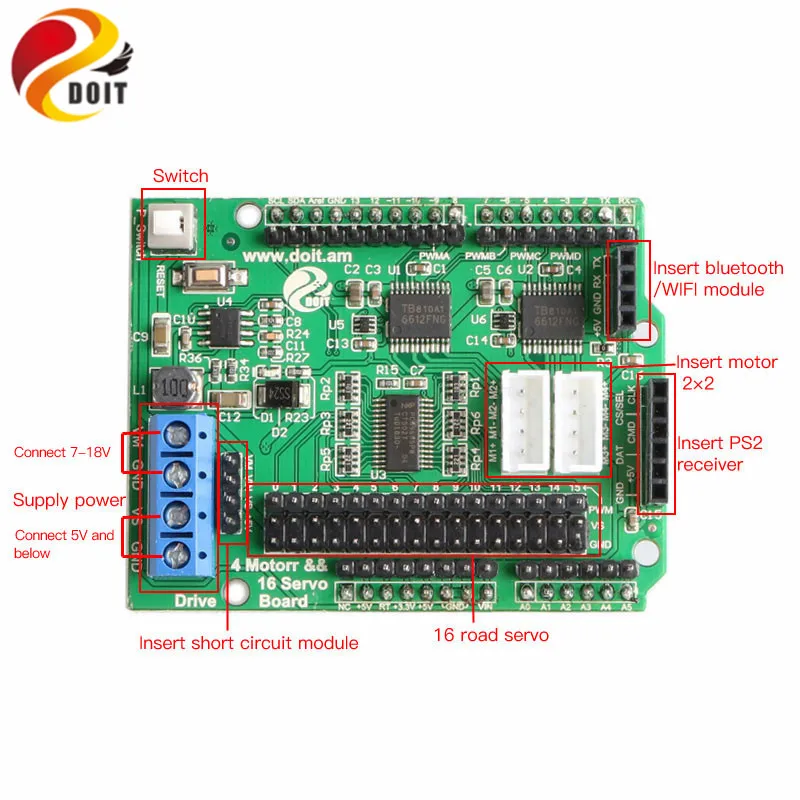

Control Kit Parameters :

• power input:

1. Motor power supply (VM): 4.5V ~ 36V, can be powered separately;
2. Servo power supply (VIN): 5 ~ 18V, can be powered separately;

• Single power supply use:

1. Open circuit VM and VIN, (separately control the motor, 6 ~ 36V);
2. Open circuit VS and VIN, separately control the servo (6 ~ 18V);
3. Short-circuit VM and VIN while shorting VS and 5V. Simultaneous control of motor (6 ~ 18V) and 16-way 5V servo

Shipping List :

• 1 × Tank chassis (includes 4  Pcs drive wheels and 8 Pcs load wheels)
• 4 × DC motor
• 1 × wifi/bluetooth/handle control kit (optional)
• Free: source code, app, 18650 battery box, hex wrench

NOTE :

• In order to facilitate transportation, the product is not assembled.
• Product does not contain battery;
• Motor servo drive board color: blue / green, random delivery;
• More documents can be downloaded at gitnova.com.
