Description
Zhiyun Smooth-4 Smartphone Stabilizer has been designed to provide cine-style functions to content creators using their mobile phones for video capture.
Free downloadable ZY Play app enables Android and iOS users to control both gimbal and smartphone camera functions such as focus, zoom, time-lapse,
and still photo settings. A dedicated “Vertigo” function emulates the perspective-shifting, dolly/zoom effect dear to many filmmakers. It is more ergonomically

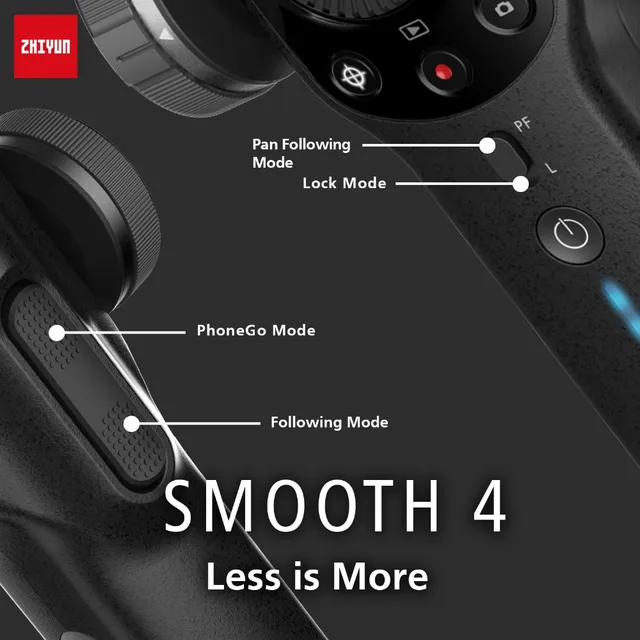

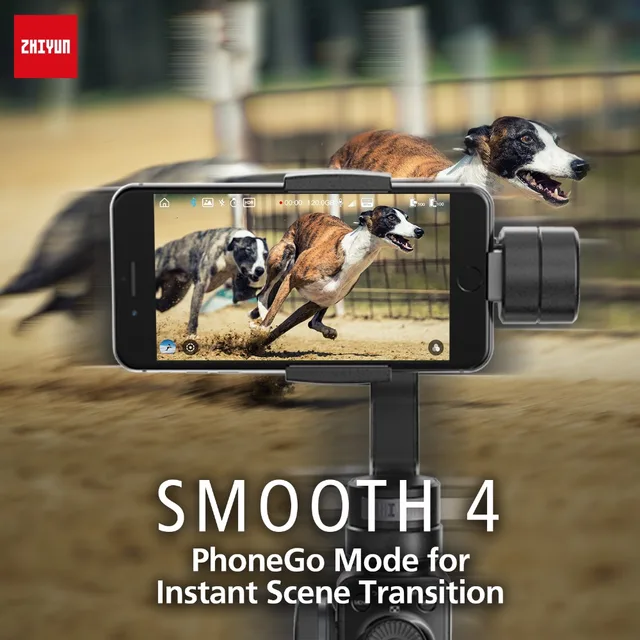

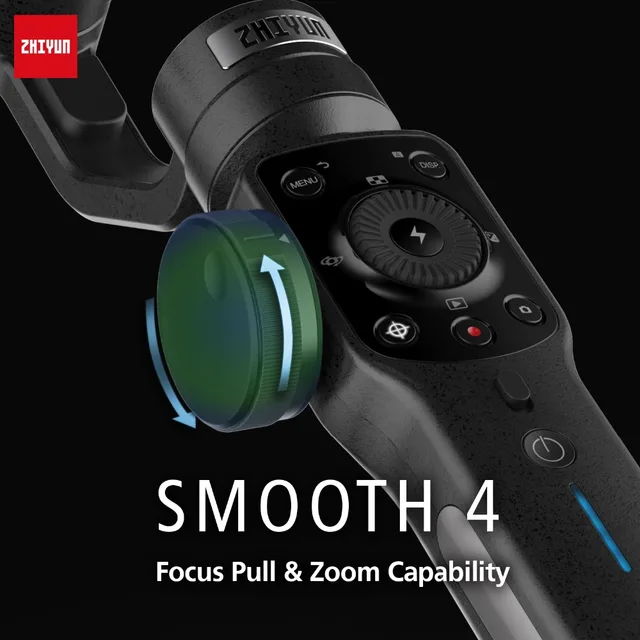

laid out and better labeled with icons compared with Zhiyun Smooth-3. There is a significantly larger focus/zoom wheel for PhoneGo mode to quickly grab
the action with smooth transmission. The functions of multiple time-lapse and object tracking also bring you more shot insperation. It supports smartphone
weighing up to 7.4 oz and measuring up to 3.35″ high, offers 300-degree pan, 240-degree roll and 240-degree tilt for nimbly capturing action shots or smoothly
gliding along more tranquil scenes. Zhiyun Smooth 4 is powered by rechargeable lithium-ion batteries, featuring a runtime up to 12 hours. A USB Type-C port
on the handgrip enables you to add a separately available power pack to extend your shooting time. An LED display indicates power statues. Included mini
tripod and designed 1/4″-20 female thread on the handgrip bottom can bring you better using experience by compatible accessories.
Features:
1. Supports smartphones weighing up to 7.4 oz / 210g, and up to 3.35″ in height
2. 360deg of pan, 240deg of tilt, and 240deg of roll; Large, cine-style focus/zoom wheel with a witness mark
3. Dolly Zoom Vertigo effect, Quick-response PhoneGo modes, Multiple time-lapse and follow-mode choices;
4. Up to 12-hour runtime, able to charge for phone while shooting, support an external power pack
5. Use with the free, downloadable ZY Play app to control select iOS/Android phone functions
Specification:
Number of Axes: 3-Axis
Rotation Range: Pan, 300 degrees; Tilt, 240 degrees; Roll, 240 degrees
Payload: 2.65 to 7.41 oz / 75 to 210g
Smartphone Dimensions: Height 65 to 82 mm
Ports: USB type-C
Battery: Lithium-ion Battery with the capacity of 2000mAh, 5.0V
Runtime: 12 hours
Charging time: 3.5 hours
Operating Voltage: 7.4V
Operating Temperature: 14 to 113 F / -10 to 45 degrees
Mounting: 1/4″-20 Female Thread
Dimensions: 12.91*4.84*4.13″ / 328*123*105mm (with handlebar)
Weight: 19.29 oz / 547 g (with handlebar and battery)

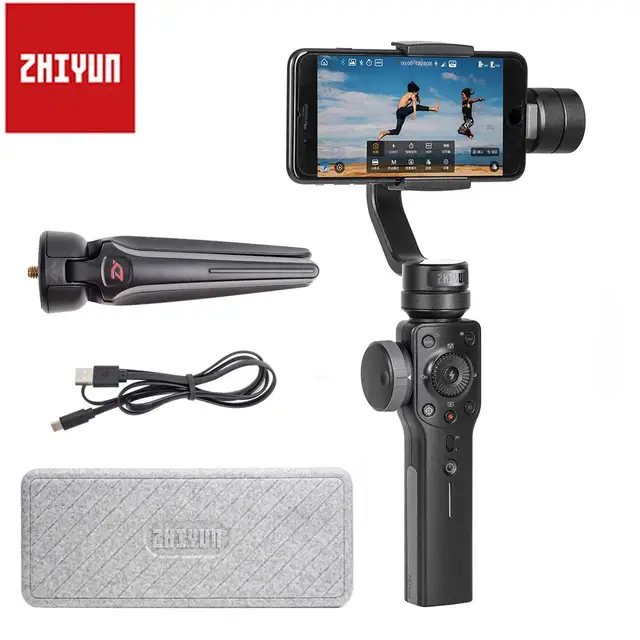

Package contents:
1*Zhiyun Smooth 4
1*Type-C USB cable
1*TRM03 tripod
1*Product manual
Friendly reminder: Our Europe warehouse cannot support to ship product to Canary islands in Spain. The odds to lost parcel is high. And some customers complains that they don’t receive the product for a long time. Thanks for your cooperation.

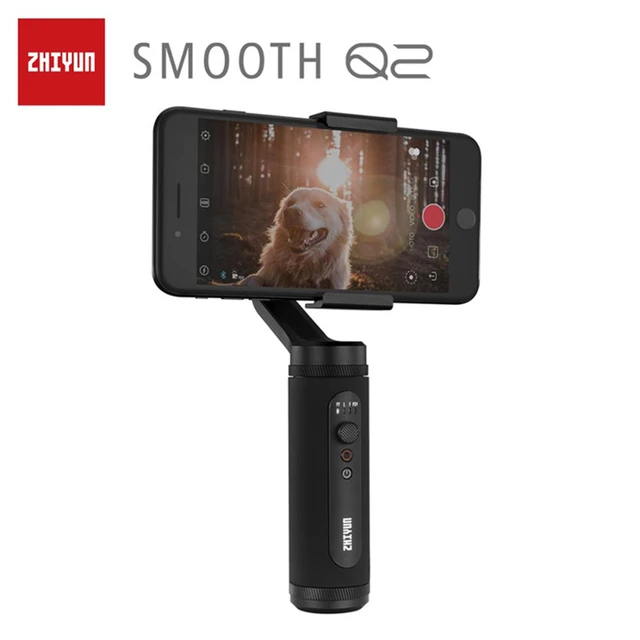

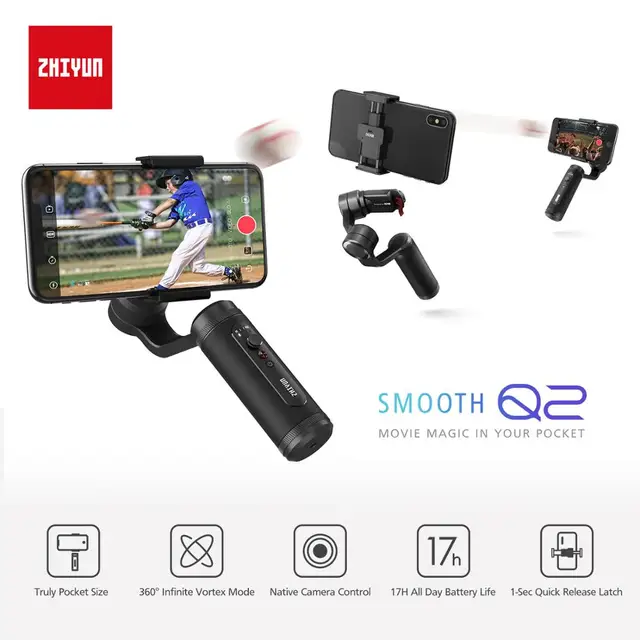

Zhiyun Smooth-Q2 3 Axis Handheld Gimbal for Smartphone, Small Pocket Size 260g Maximum Payload 360 Degree Rotation iOS & Android Supported 1 Sec Quick Release, W Cold Shoe Mount Bracket-Black
1. [Smaller & Stronger]: The SMOOTH-Q2’s motor durability has improved significantly with a maximum payload of 260g. Additionally, with its improved durability, Q2’s motor can work 3000 hours continuously. And we also utilized a full aerospace grade aluminum alloy body to enhance the strength and stability of the gimbal. In one word, it is smaller and stronger!
2. [Easy to Use: 1 Sec Quick Release Clip]: Utilizing the quick release latch design, SMOOTH-Q2 is able to transform your smartphone into a professional camera within a split second. Providing an easy transition between standby mode and shooting mode, SMOOTH-Q2 is ideal for street snapshot and to capture precious moments. Most importantly, Smooth-Q2 does not require any re-balancing when the clip is re-attached back.
3. [Smart Control Panel]: Smooth Q2 simplified all the controls to one LED indicator, two buttons and one 5 way control joystick, which is intuitive and convenient without much learning cost. The common 1/4″ screw thread fitting makes Q2 compatible to most add-on accessories in the market. Combining the new vertical shooting function, it is versatile and convenient for vlog and live broadcast. Plus a sleek cylinder-shape body, Q2 can balance by itself (with phone mounted) without Tripod.
4.[360 Degree Rotation to Reach More Creativity]: Smooth Q2 supports 360 degrees of rotation and has 3-axis stabilization, containing a Tilt motor, a Roll motor and a Pan motor. These allows Smooth-Q2 to create a lot of crazy preset movement to make your video more enjoyable to watch. Overall, Q2 is the perfect mobile gimbal for both film experts and amateur, allowing you to explore unlimited possibilities that you can achieve with your mobile phone.
5. Blustooth Connect, IOS & Android Supported]: With our advanced technology, SMOOTH-Q2 can control IOS and Android native camera via Bluetooth connection without using the ZY Play APP. Or Use ZY Play APP with your smartphone to unlock different filming mode. ZY Play APP offers a plethora of features such as intuitive editing function and various manual settings such as ISO and shutter speed. With such a powerful creative tool, you can achieve DSLR quality shots with your phone.
Note: The SMOOTH-Q2 supports shooting with wide-angle and ultra-wide-angle phone cameras such as the iPhone 11 Series, three press the shutter button to enter the super wide-angle auxiliary shooting position to get a solution for the problem that some models of the mobile phone may take the motor in view.
Parameters:
Following Deviation in Motion State：
Max: ± 0.3 °; Standard: ± 0.1 °; Min: ± 0.05 °
Following Deviation in Static State：
Max: ± 0.04 °; Min: ± 0.01 °
Tilt Mechanical Range: Standard: 305 °
Roll Mechanical Range: Standard: 265 °
Pan axis movement angle range: Standard: 360 °
Unlimited rotation
Valid Payload：Max: 260 g; Min: 75 g
How does SMOOTH-Q2 look?
What we have improved?
We completely redesigned the motor and structure to make Smooth-Q2 a small mobile gimbal ever without sacrificing the performance.
We didn’t stop at shrinking the size.
Measuring only 204mm long, SMOOTH-Q2 is almost equivalent to a sunglass case that you can throw to your handbag.
Easy to use
Smooth-Q2 supports your native phone camera app via Bluetooth connection.
Easy to use
Smooth-Q2 supports your native phone camera app via Bluetooth connection.
Functionality in Simplicity
Pan Following Mode, Following Mode and Lock Mode are available
1-sec Quick Release Clip
Quick release latchfor instant on and off
User Friendliness
Smooth Q2 simplified all the controls to one LED indicator, two buttons and one 5 way control joystick, which is intuitive and convenient without much learning cost.
Improved body material
Built from aerospace grade aluminum alloy material, SMOOTH-Q2‘s arm and motor have greatly improved in its durability and reliability, with enhanced texture.
All Day Battery Life
SMOOTH-Q2’s battery life is up to 17 hours with a rechargeable battery. (*17-hour battery life is lab data)
What is it in box
Smooth Q2 stabilizer *1
Phone holder *1
Wrist strap *1
USB type C cable *1
Quick stard guide *1
